Worry -Free Processing Customized Double Head Milling Machine-High Efficiently Customized CNC Double Head Face Milling Machine
LC-700NC CNC DUPLEX MILLING MACHINE Super (Belt drive)Product Introduction Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/para......
Send Inquiry
Product Description

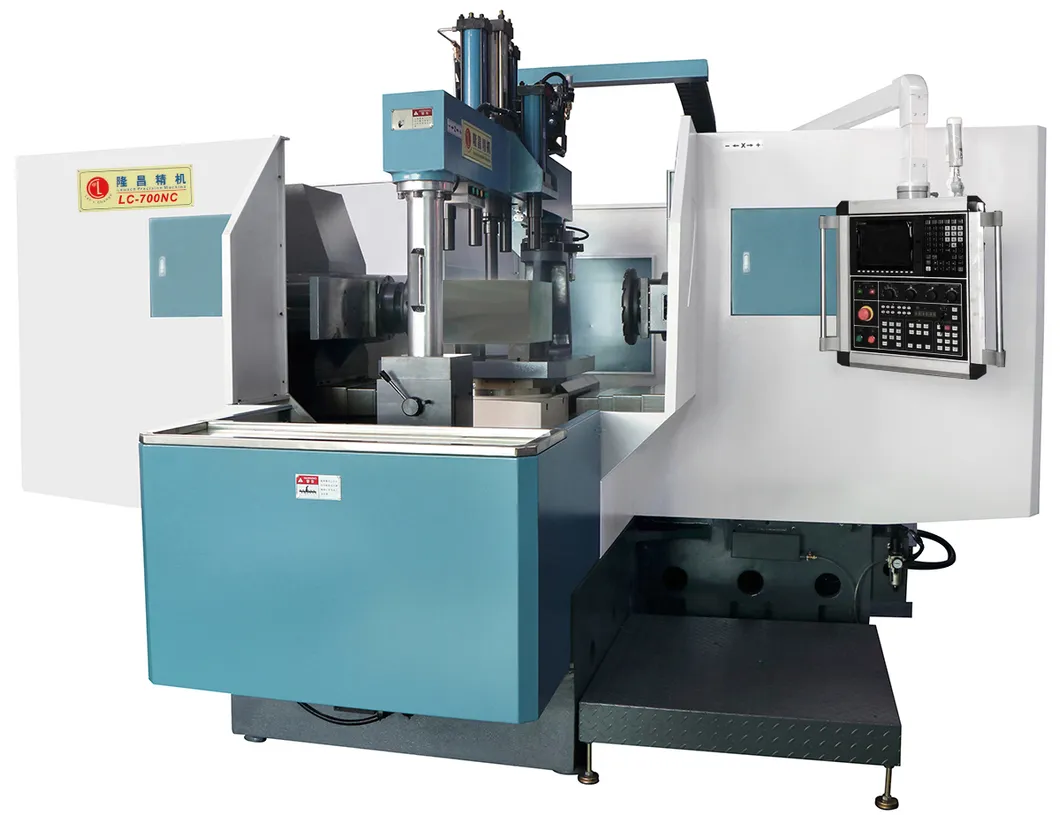

LC-700NC CNC DUPLEX MILLING MACHINE Super (Belt drive)

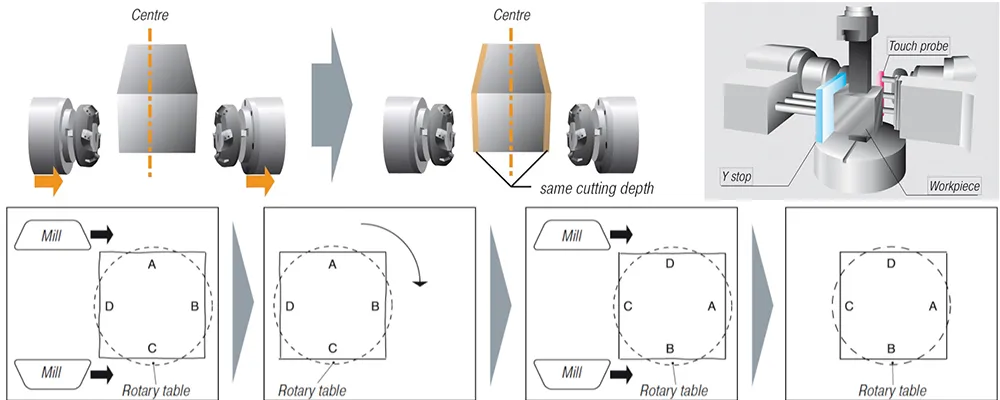

Automatic Centering
Product Introduction

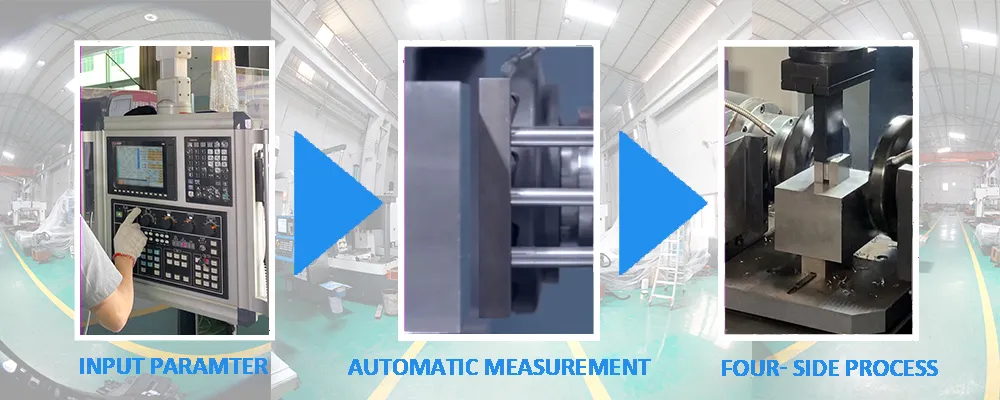

Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/parallelism.
Automatic Centering

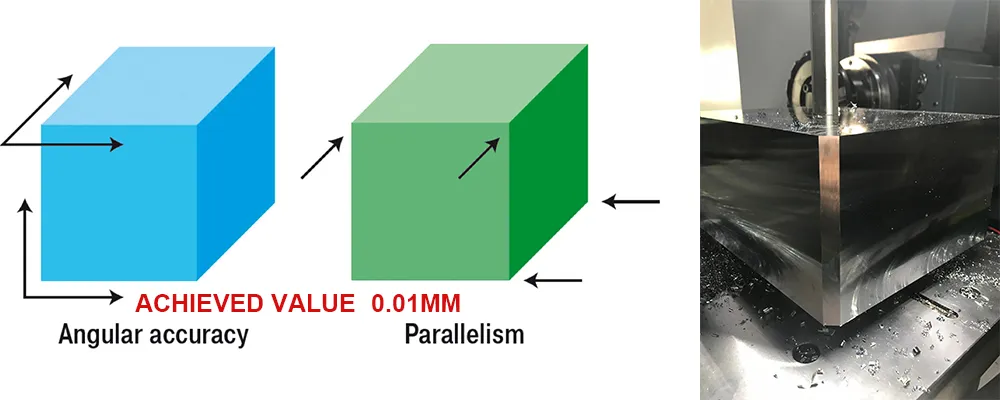

High Precision
Base Data
| Main specification LC-700NC Super(Belt drive Super) | |||
| Items | Detail | ||
| Cutting capacity | Control axis number | 4 | |
| Cutting capacity mm | 3mm*2 | ||
| Cutting width mm | 40-700 | ||
| Worktable | Dimensions mm | 480*480 | |
| Max loading weight kg | 350 | ||
| Spindle | Spindle speed(Infinitely variable speeds) rpm | 0-600 | |
| Spindle power kw | 2*15 | ||
| Spindle taper | BT50(7:24) | ||
| Cutter diameter mm | 250 | ||
| XYZ axis | X/Y/Z axis motor power kw | 2/2/3 | |
| X/Y/Z Max feed speed m/min | 10/10/10 | ||
| X/Y/Z Max cutting speed m/min | 6/6/6 | ||
| Accuracy | Squareness mm/300mm | 0.015 | |
| Accuracy for dimension mm/300mm | 0.015 | ||
| Tank capacity | Hydraulic oil tank L | 80 | |
| Lubrication oil tank L | 2*3L | ||
| Power | Power | AC380/220V 40KVA | |
| Net weight | Net weight kg | 10000 | |
| Product size | Product size mm | W3400*L3580*H2550 | |
| Main part | |||
| Sort | Name | Quantity | Origin |
| Machinery | Ball screw (XYZ axis) | 3 | Taiwan HIWIN |
| Guide rail | 3 | Quenched hard guide rail | |
| Main Spindle (Horizontal) | 2 | Japanese SEIKO | |
| Flexible stainless steel plate shield of worktable | 2 | EHONG | |
| Base casting | 1 | HT300 | |
| Automatic lubricating machine | 3 | Domestic | |
| Oil line | 3 | Domestic Aluminium tube | |
| Bearing | / | Japan NSK | |

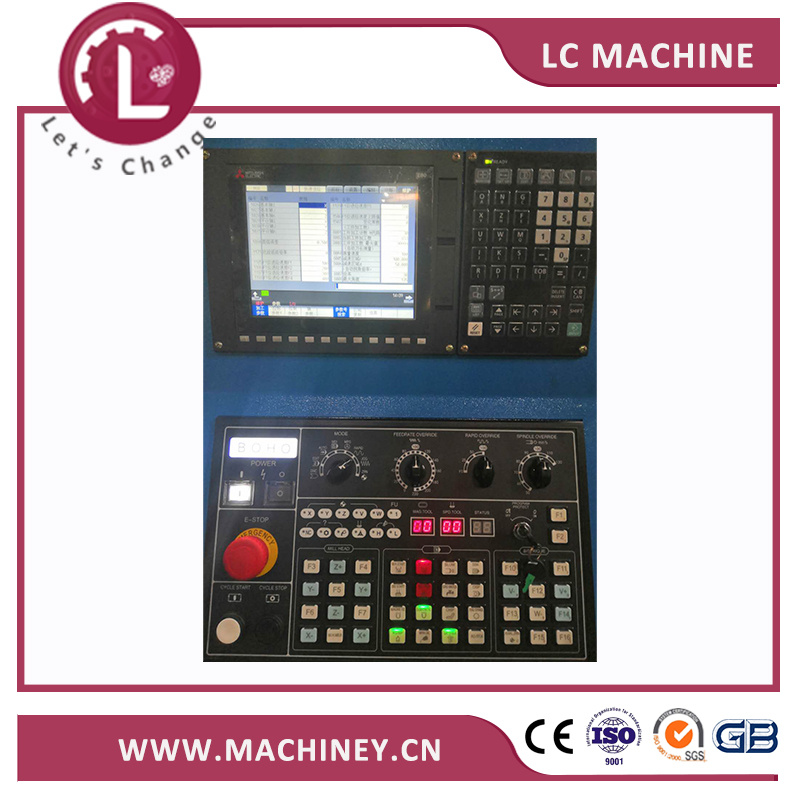

| Electrical appliances | CNC system | 1 | Japan Mitsubishi |
| MPG | 1 | Japan Mitsubishi | |
| Servo motor | 4 | Japan Mitsubishi | |
| High precision rotary table | 1 | Taiwan Bramd | |
| Spindle motor | 2 | MK | |
| AC contactor | / | Schneider | |
| Relay | / | Schneider | |

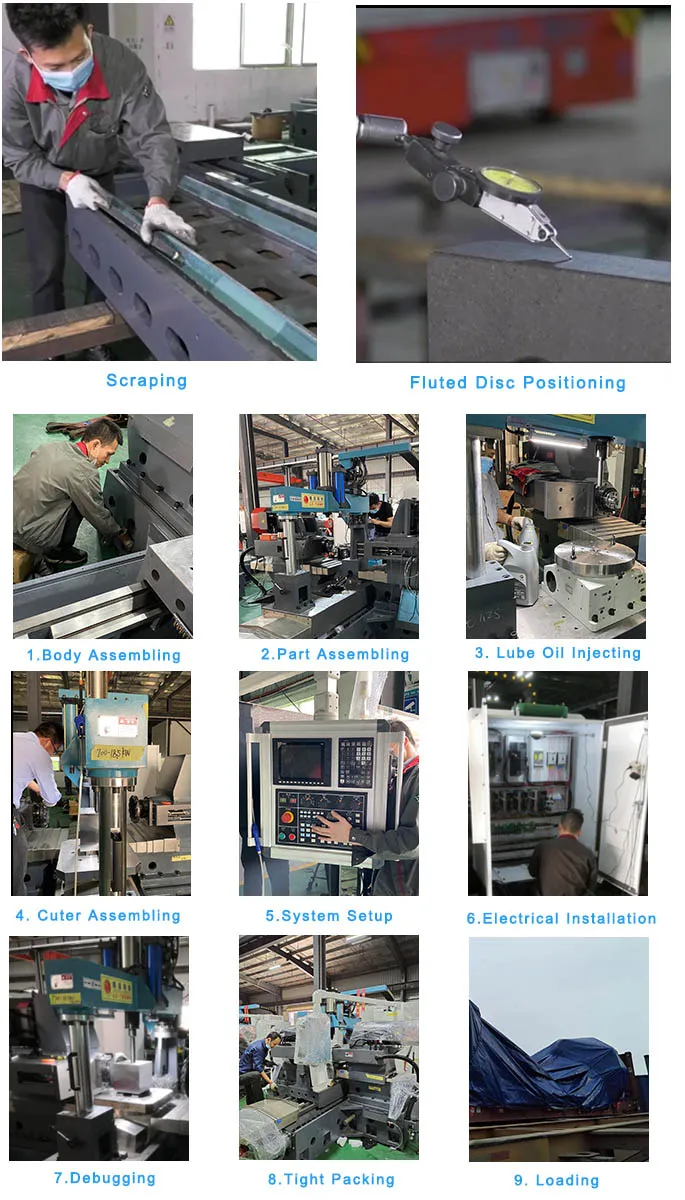

Manufacturing
