    X6325 nantong vertical turret milling machine china Product Description The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in bo......

    Send Inquiry

    Product Description


    X6325 nantong vertical turret milling machine china


    Product Description



    X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine

    The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
    The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
    The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
    This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.

    The main feature :

    1. Robust construction and heavy duty design.
    2. The machine body is made of Meehanite cast iron
    3. The milling head is made of SCM-21.Imported from Taiwan.

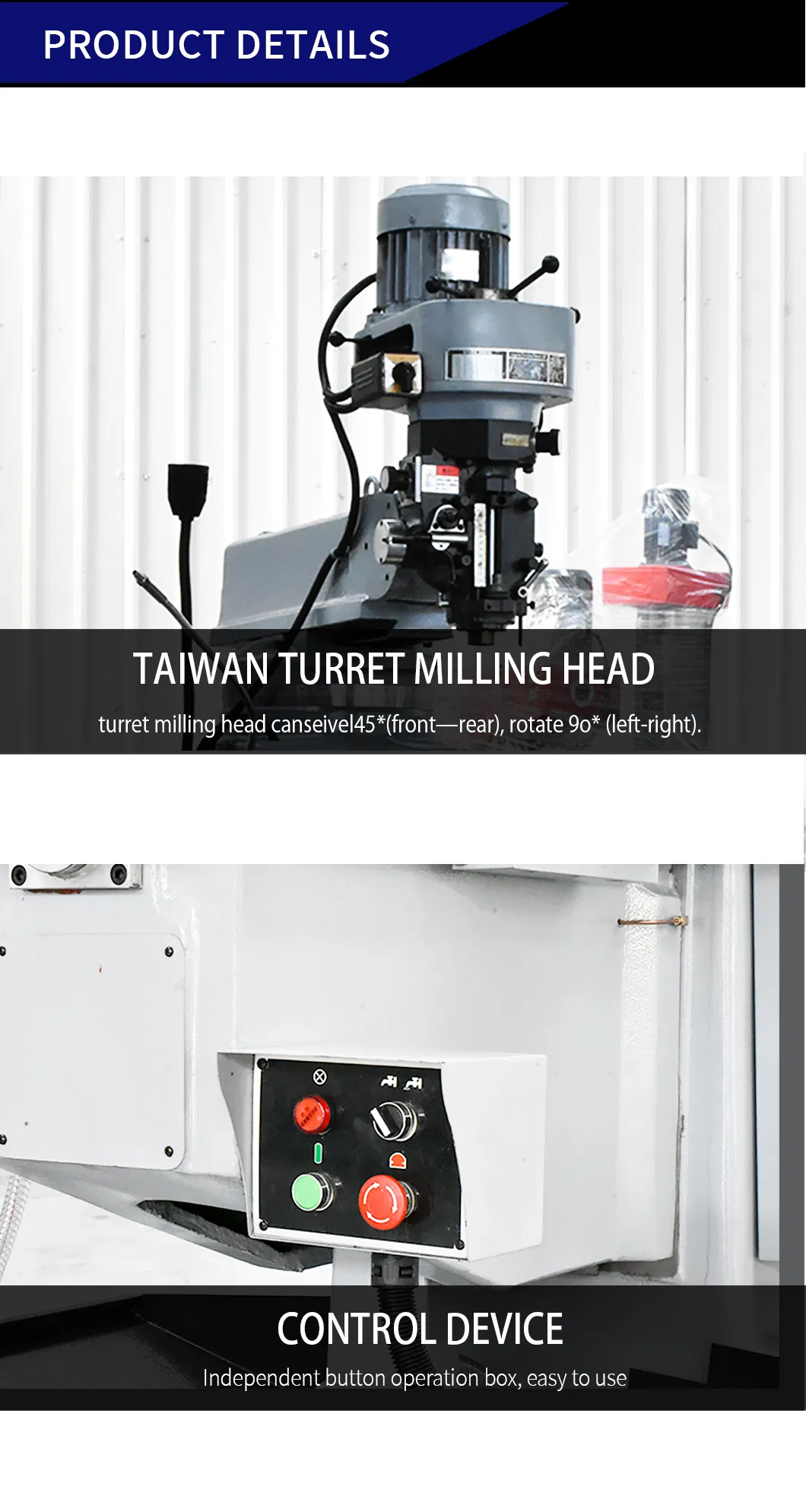

    4. The milling head can swing 90° right and left side,45° front and back side.
    5. The ram can swing 180° horizontally.

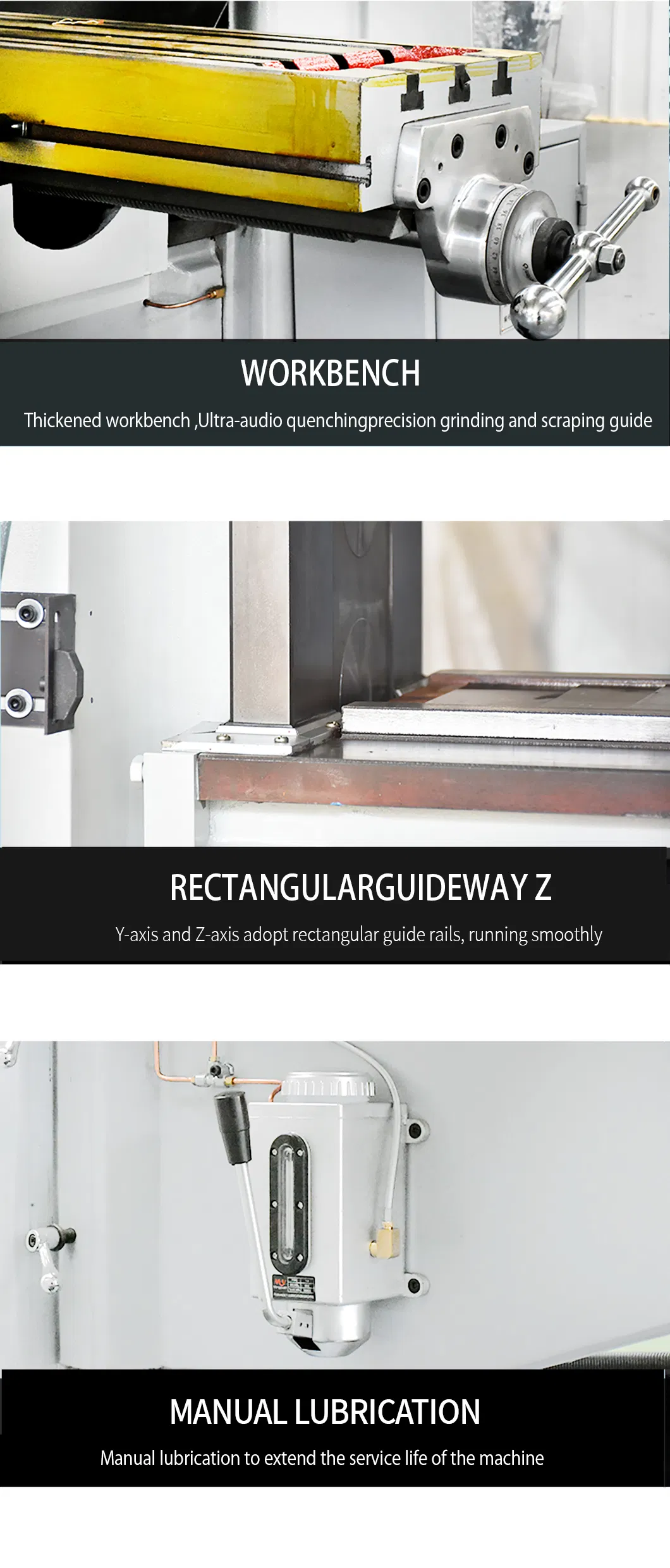

    6. The working table and guide rail are heating treated and precision grinding.
    7. DRO and dividing head are for option.

    Product Parameters

    The main specification :


    Specifications
    Units
    X6325
    Table size
    mm
    1270x254(10"x50")
    Table travel
    mm
    780/400/420
    T slot(number-width-pitch)
    mm
    3-16-50
    Spindle taper

    standard:R8
    optional:ISO40
    Spindle speed range
    rpm
    standard:16 steps,
    50HZ:65-4500 ,60HZ:80-5440
    Optional:variable 65-4000
    Spindle travel
    mm
    127
    Spindle feed range
    mm
    0.04,0.08,0.15(3 steps)
    Distance between spindle nose and table surface
    mm
    90-510
    Main motor power
    kw
    2.2
    Head rotation (left - right )
    °
    ±90°
    Head rotation (front - rear)
    °
    ±45°
    Weight
    kg
    1400

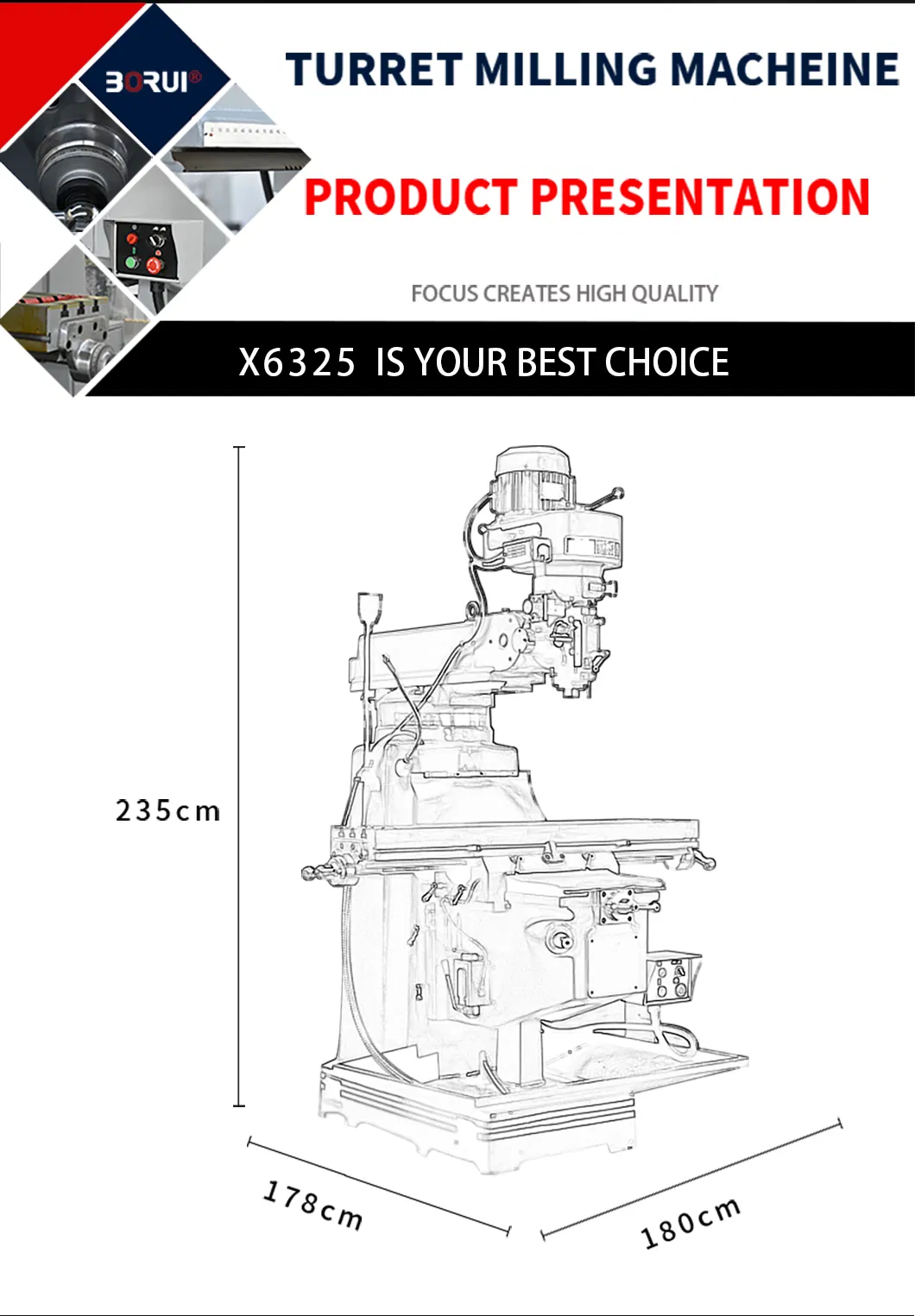

    Overall dimension
    mm
    1550x1650x2250




    Standard Accessories:

    1.milling chuck sets

    2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10

    4.Stay wrench S21-24 and S27-30

    5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40

    7.Draw bar M24 (on the machine)and M16

    8.work lamp

    9. cooling systerm 10.universal milling head XC63T4A

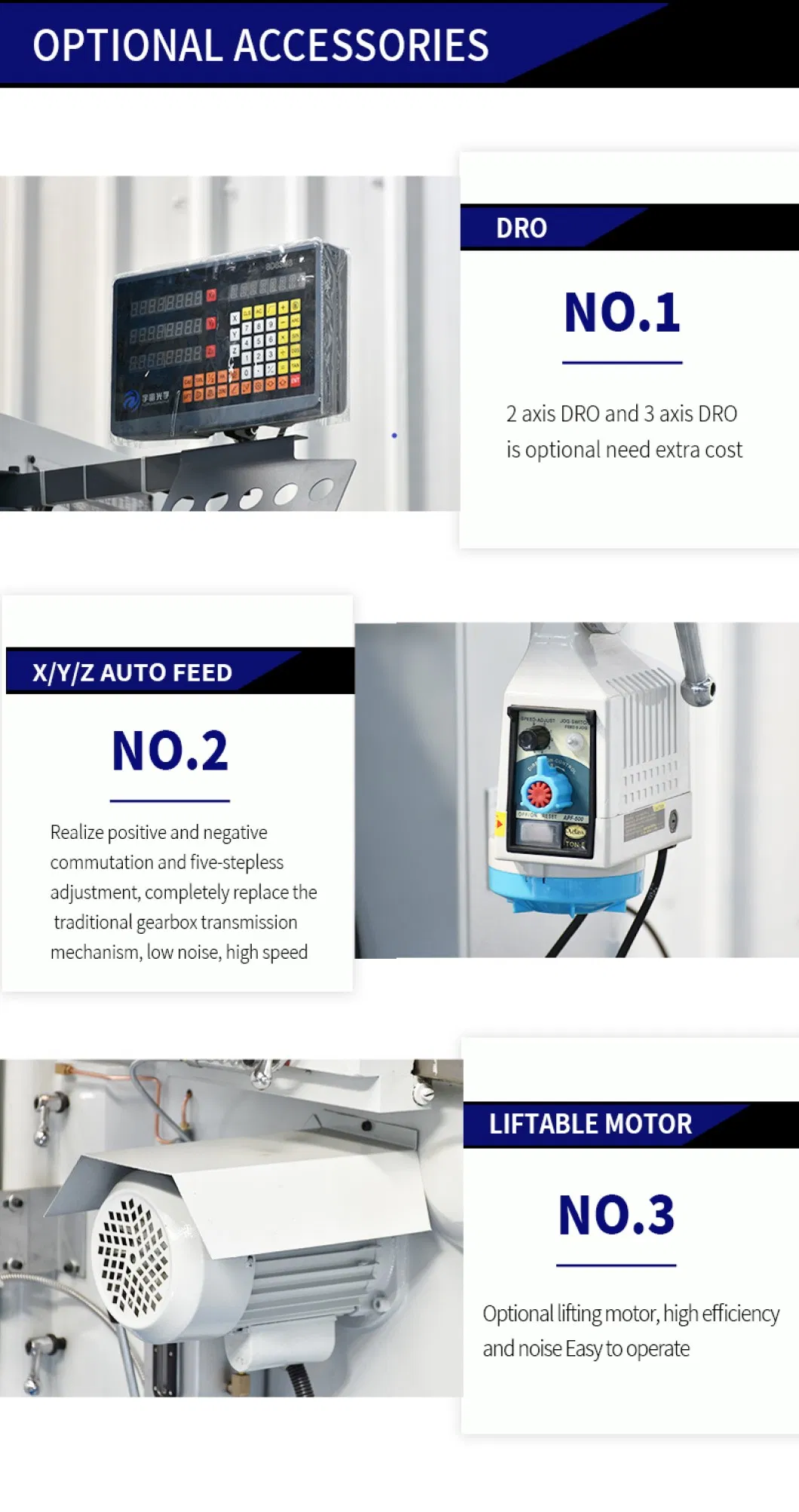

    Optional Accessories:

    1.X/Y power feed

    2.Z axis lifting motor

    3.three axis sino dro

    4.QH200 flat vice

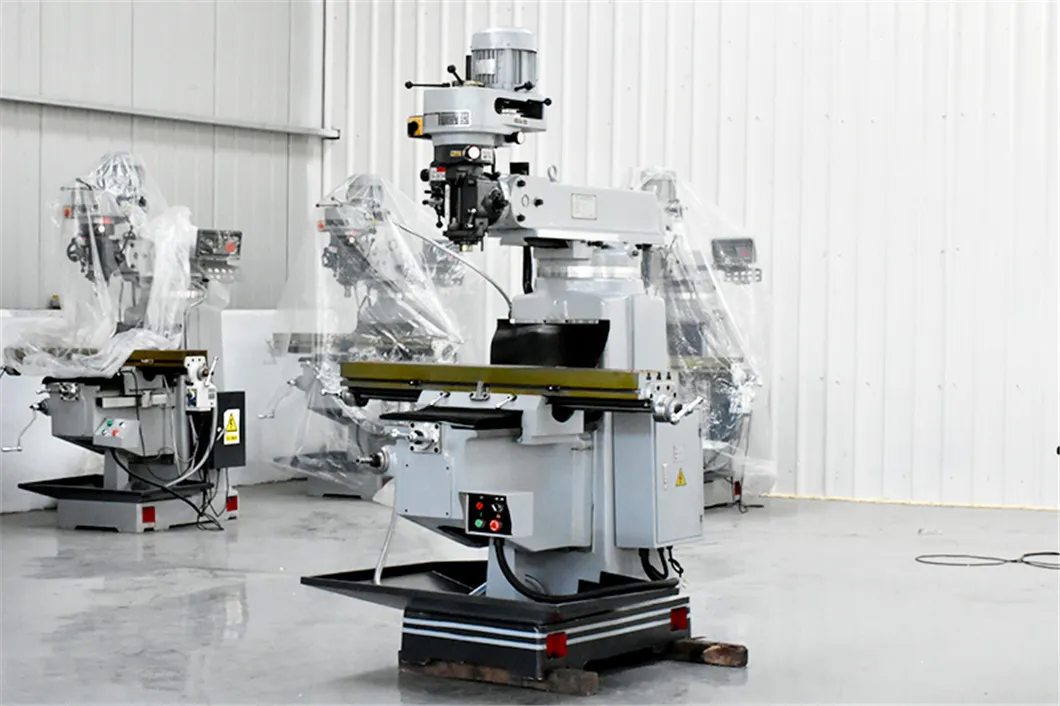

    Detailed Photos

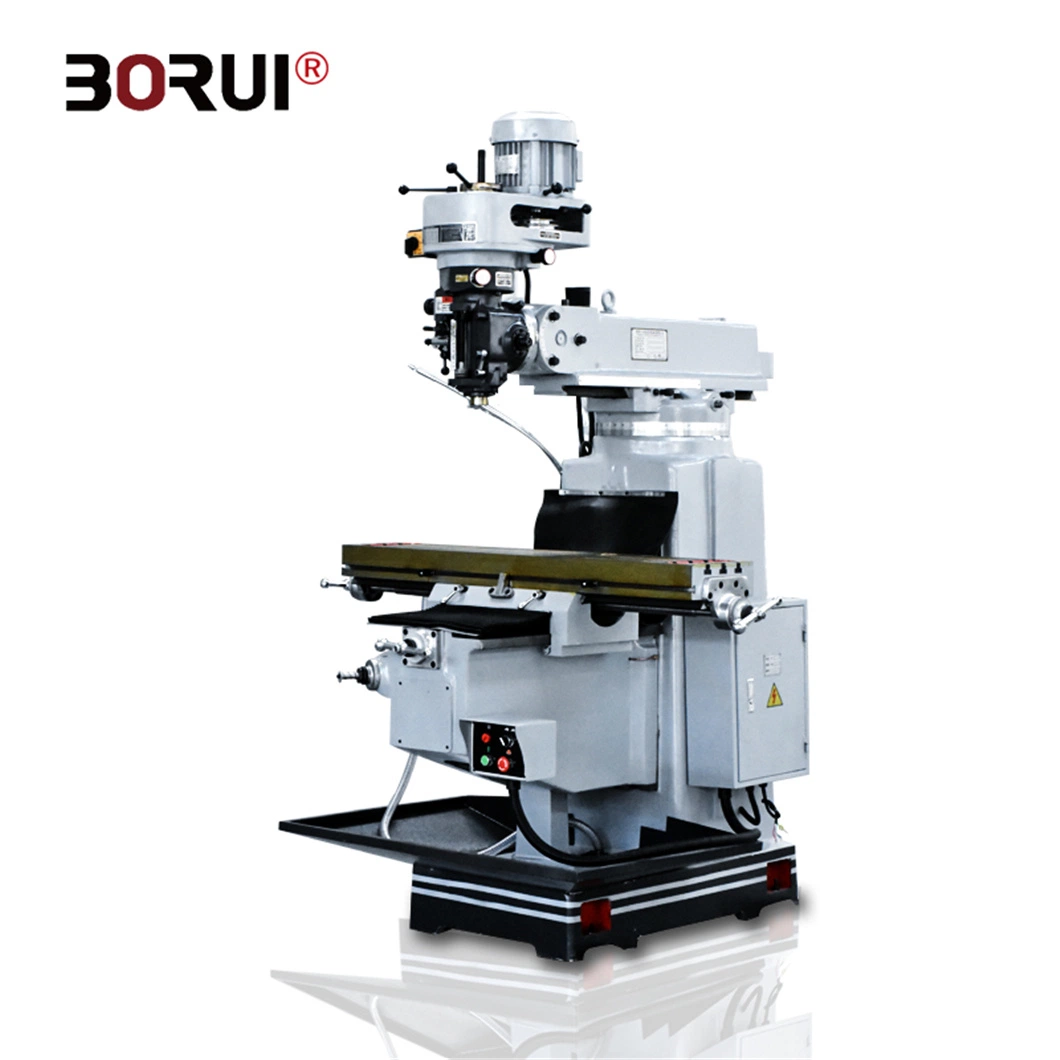

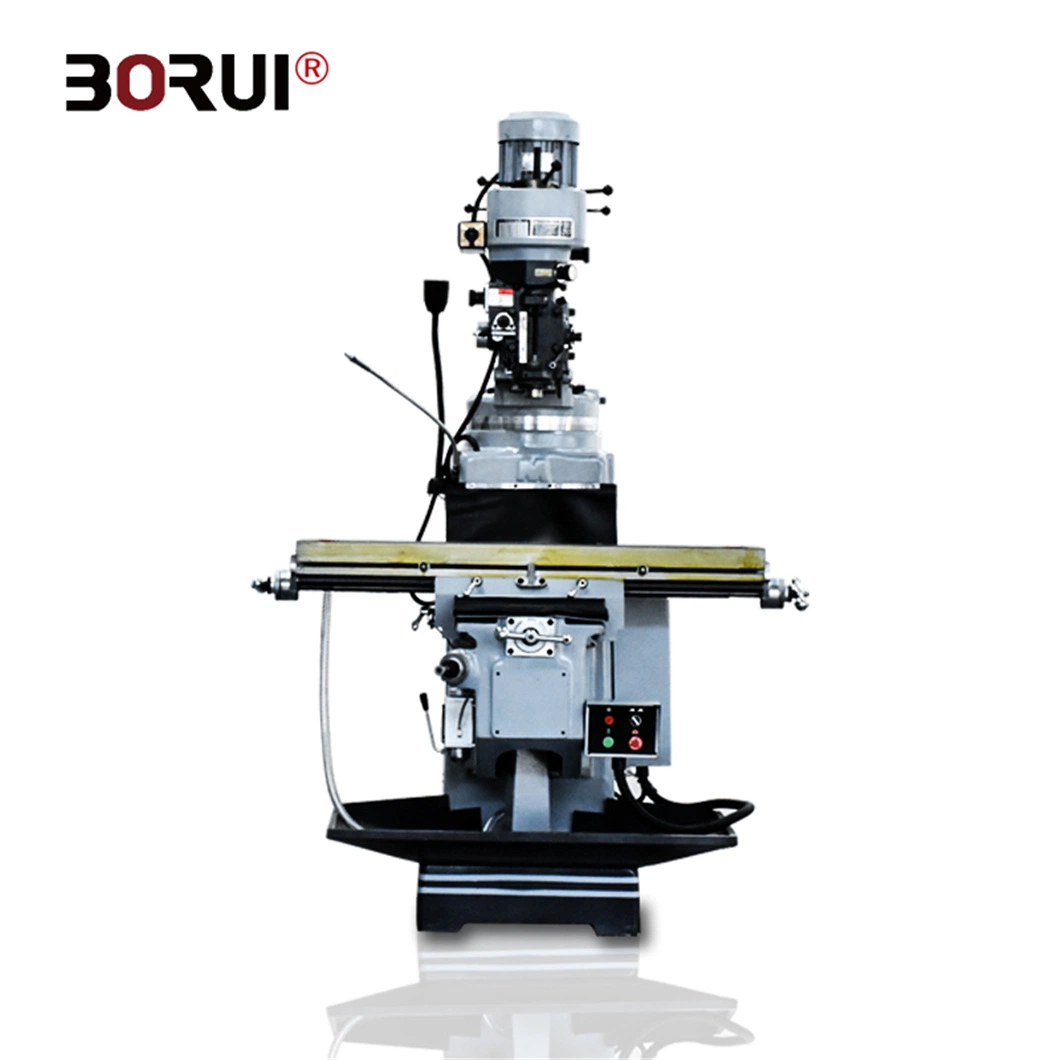

    X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine

    X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
    X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine
    X6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling MachineX6325 Fresadora Widely Used Universal Vertical Turret Metal Milling Machine Manual Dro Milling Machine

    Packaging & Shipping

    Packing shipping
    For machine: usually by sea;
    For documents: by international express, eg. DHL,TNT or EMS.
    For packing :Free fumigation plywood packaging steel base
    our service
    1. Technical support online service provided.
    2. Technical files service provided.
    3. Machine operation video provided
    4. On-site training service provided.
    5.Spare parts replacement and repair service provided.
    6 All of the questions will be replied within 8 hours
    7. If you need to develop products with your own specification, we can help you to work it out.
    FAQ:
    1)Q: Which trade term I can choose?
    A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
    2)Q: How can I get quotation from you?
    A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
    3)Q: How can I choose right machine and how to assure quality?
    A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
    4)Q: How can I make the payment?
    A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
    5)Q: How long does it take to get machine?
    A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
    6)Q: How about warranty?
    A: warranty is one year, but we will offer lifetime service for machine.
