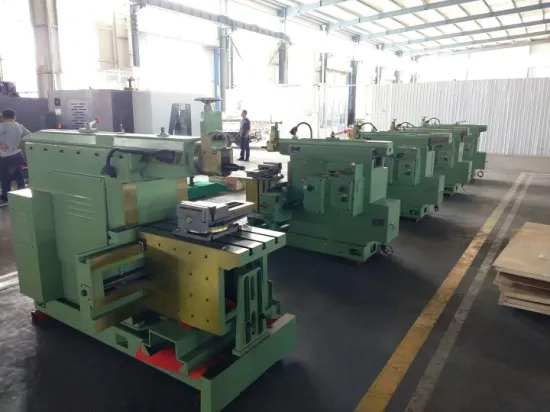

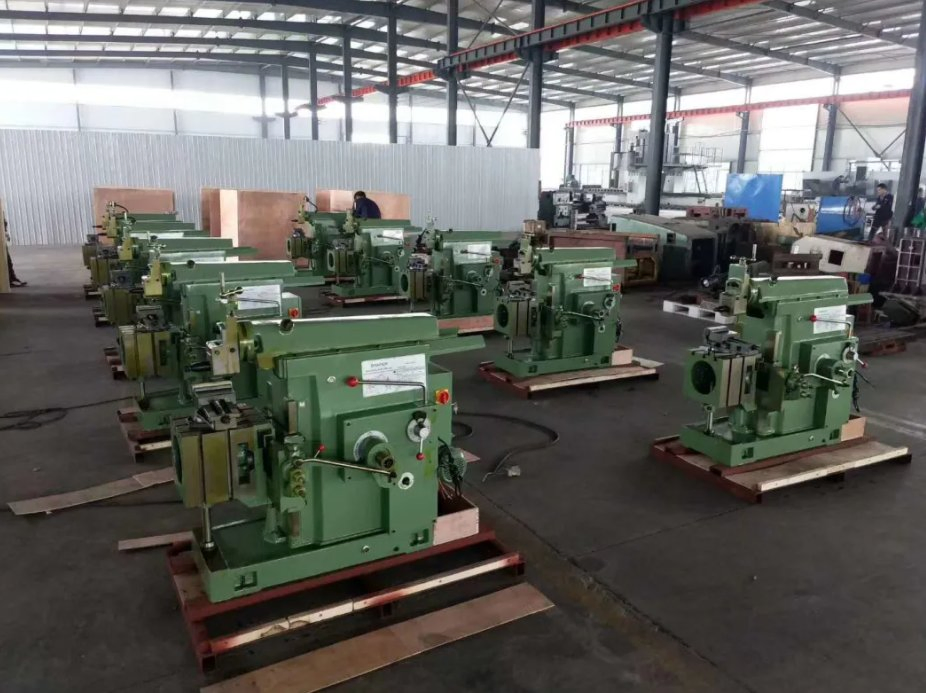

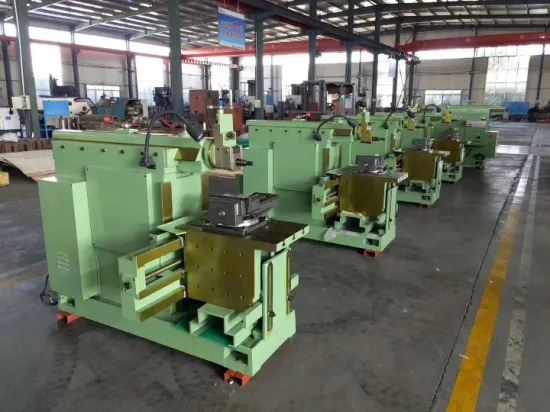

B635A Shaping Machine Manufacture Cheap Price Metal Shaper
Planing Machine B635A Feature·Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision a......
Send Inquiry
Product Description
| Planing Machine B635A Feature |
| ·Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing. ·The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient. |
| Specifications | B635A |
| Maximum planing length | 350mm |
| Ram underside to table the maximum distance | 330mm |
| Worktable maximum moving distance (horizontal) | 400mm |
| Worktable maximum moving distance (vertical) | 270mm |
| The turret maximum vertical travel | 110mm |
| Ram reciprocating frequency per minute | 32/50/80/125 times/min |
| Main motor | 1.5kw |
| Tool section(width x thickness) | 20x30mm |
| T slot | 14mm |
| Maximum turning angle of the worktable (Without vice) | ±90° |
| Maximum turning angle of the worktable (With vice) | ±55° |
| Worktable size(LxW) | 350x300mm |
| Overall size | 1530x930x1370mm |
| Packing size | 1500x1000x1500mm |
| N.W/G.W | 1100kg/1250kg |
Our Services
What we can do for you?
1. Experienced staffs answer all your questions in time.
2. Customized design is available, more details to let you know our machines well.
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staf
