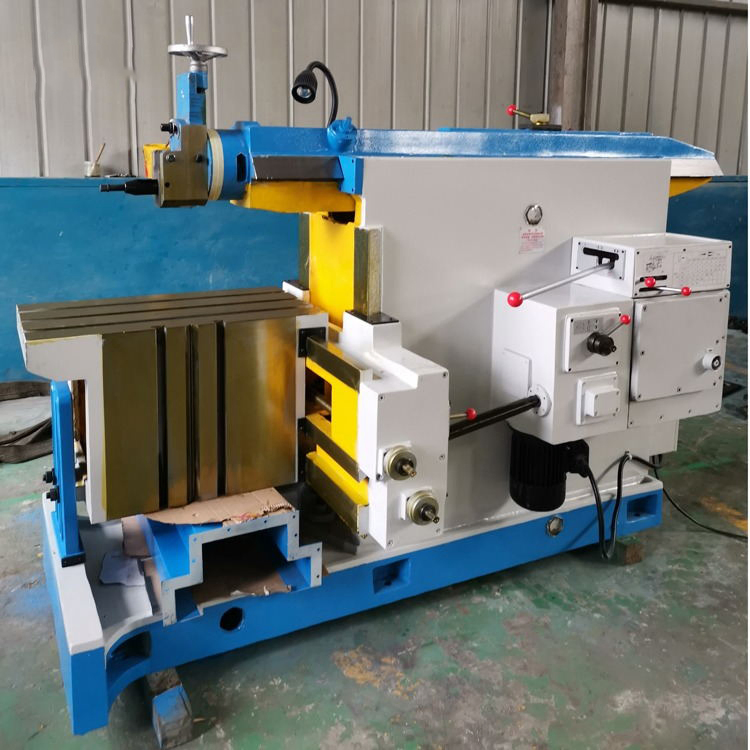

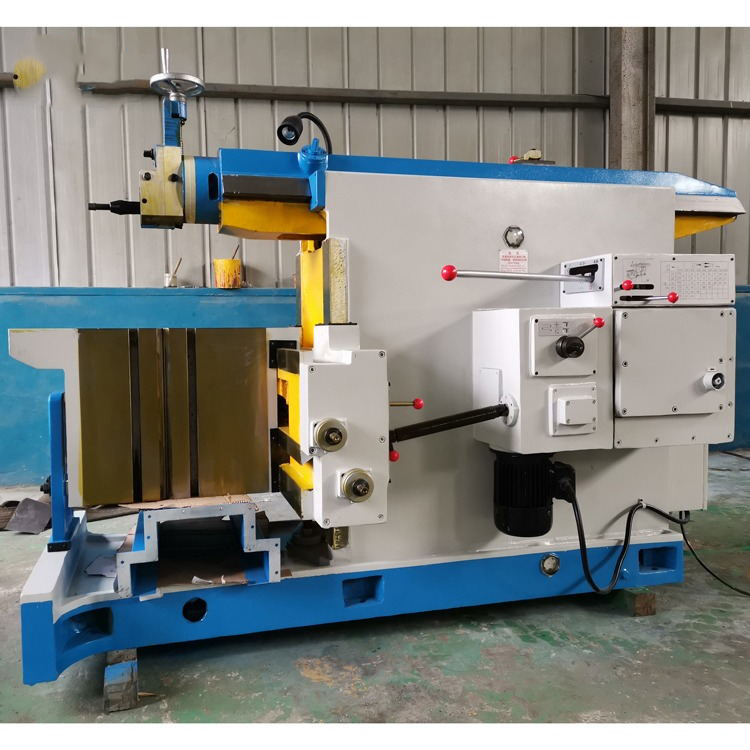

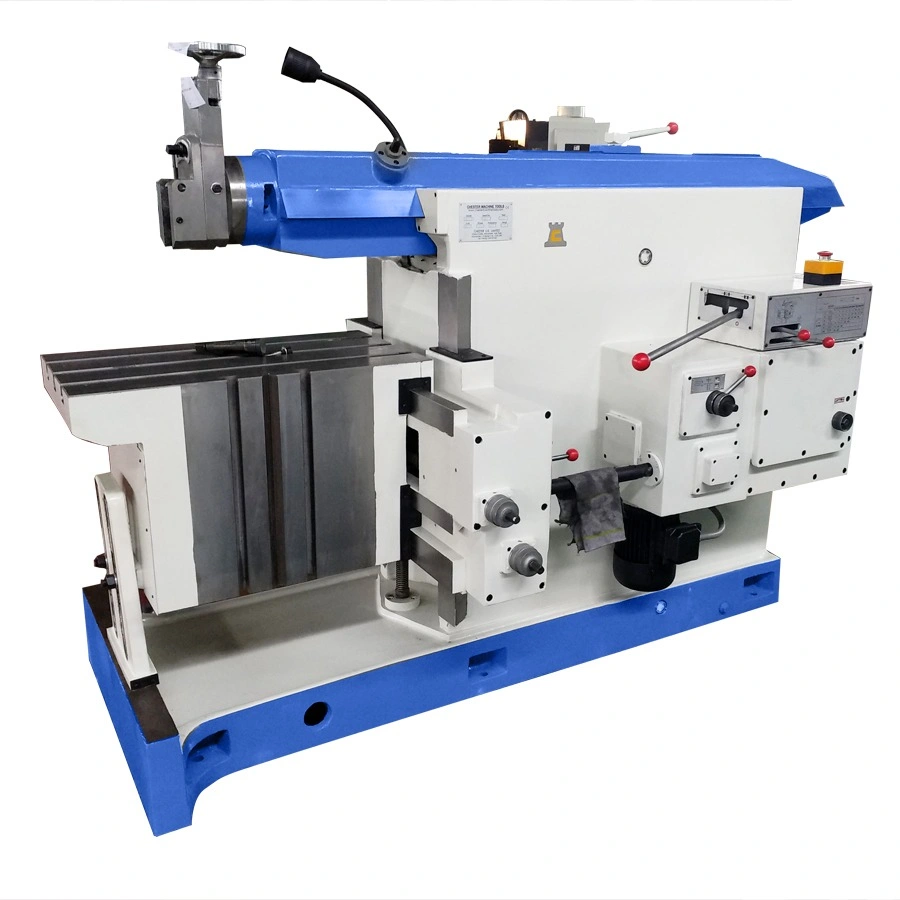

Metal Shaper Machine Bc6085 Horizontal Slotting Machine Cutting Machine
Planing Machine BC6085 Feature·Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision ......
Send Inquiry
Product Description
| Planing Machine BC6085 Feature |
| ·Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing. ·The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient. |
| Specifications | BC6085 |
| Maximum planing length | 850mm |
| Ram underside to table the maximum distance | 400mm |
| Worktable maximum moving distance (horizontal) | 710mm |
| Worktable maximum moving distance (vertical) | 360mm |
| The turret maximum vertical travel | 160mm |
| Ram reciprocating frequency per minute | 17/24/35/50/70/100 times/min |
| Main motor | 5.5kw |
| Tool section(width x thickness) | 30x45mm |
| T slot | 22mm |
| Max swivel angle of the toolhead | ±60° |
| Worktable size(LxW) | 800x450mm |
| Overall size | 2950x1330x1700mm |
| Packing size | 2450x1450x1800mm |
| N.W/G.W | 2940kg/3090kg |
