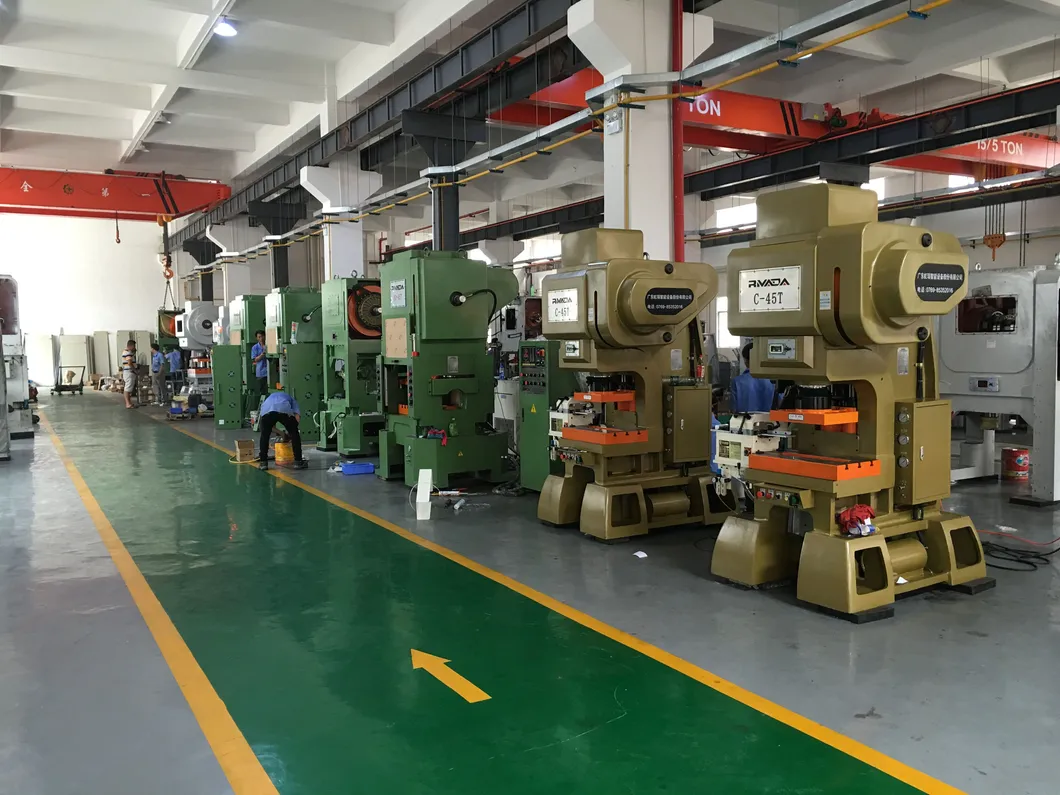

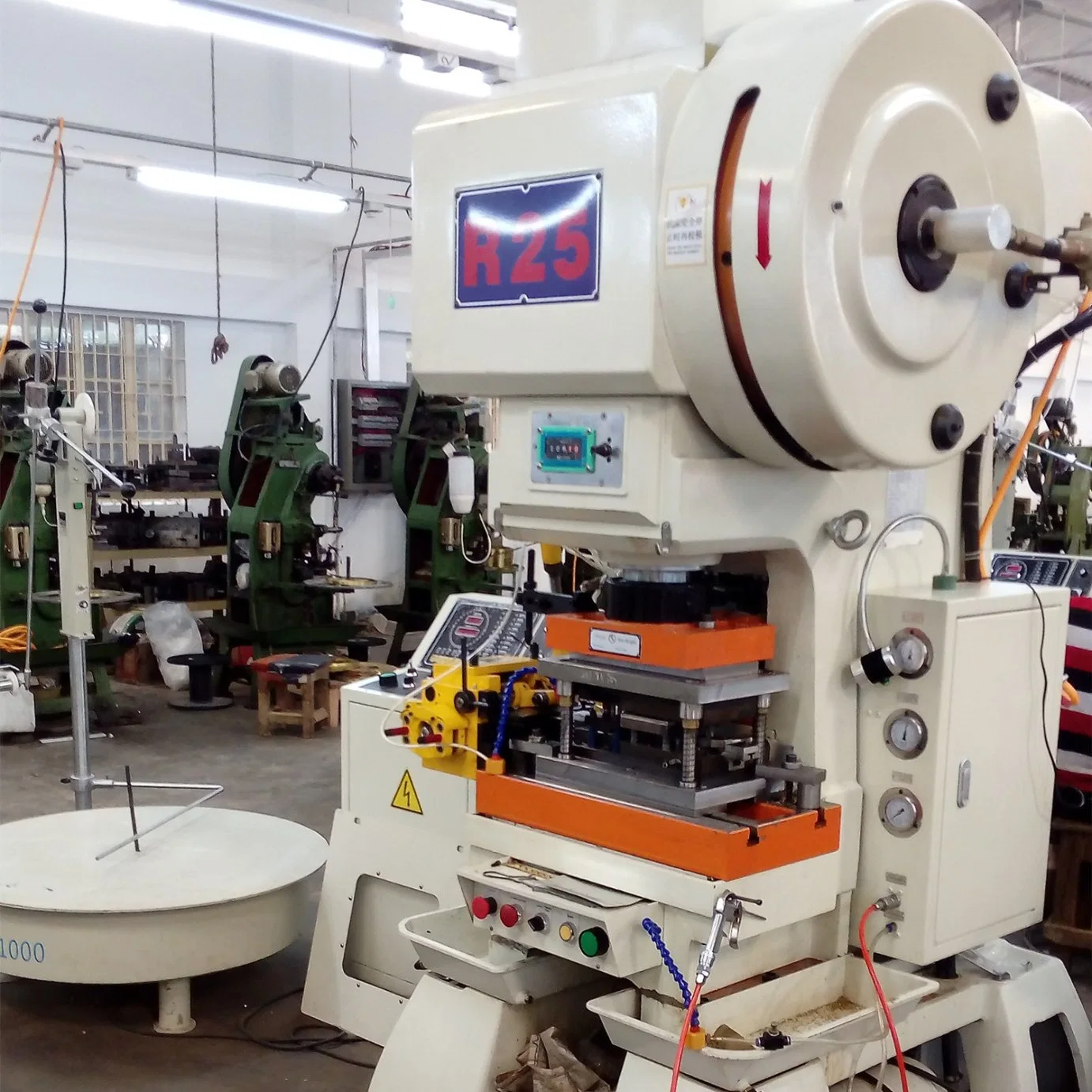

C Frame High Speed Mechanical Power Press machine for making metal button, eyelet and jean buttons

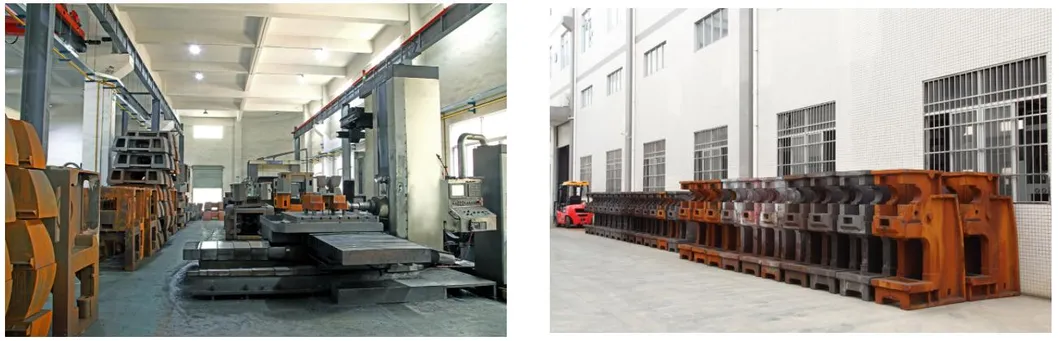

C frame high speed press machine use integrated special cast iron alloys with high rigidity and shock resistance. The slider is designed with a long guide and equipped with a slider balancing device to ensure precise and stable operation. All anti-wear components are electronically timed automatic lubrication systems, such as the lack of lubricant, the punch will be fully automatic stop. Advanced and simple control system ensures the accuracy of the running and stopping of the slider. It can be used with any automated production requirements to increase production efficiency and reduce costs.

The design principle of the high speed press is to convert the circular motion to linear motion. The main motor is used to drive the flywheel and the clutch drives the gear, crankshaft (or eccentric gear), connecting rod, etc. To achieve the linear movement of the slider from the main motor to the movement of the connecting rod is a circular motion. There must be circular and linear movement between the connecting rod and the slider. There are roughly two types of mechanism in the design, one is a ball type, and the other is a pin type (cylindrical type). Through this mechanism, the circular motion Converts the linear motion of the slider.

Presses apply pressure on the material to plastically deform it to obtain the required shape and precision. Therefore, it is necessary to cooperate with a set of dies (separate upper and lower dies) to place the material between them and apply pressure to the machine to deform it. The reaction force caused by the force exerted on the material during processing is absorbed by the punch machine body.

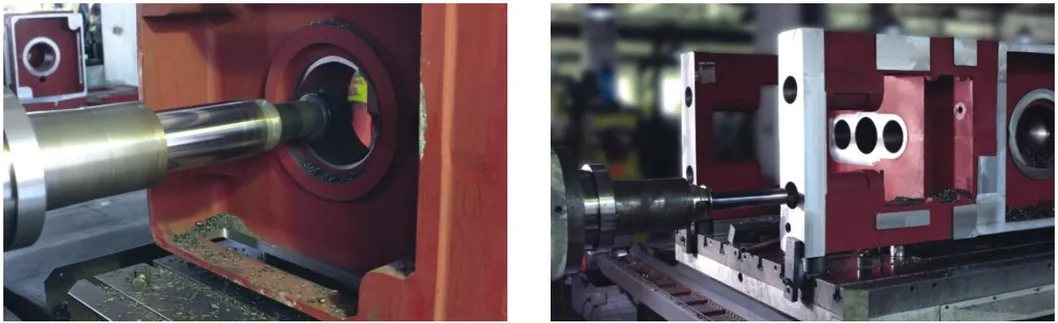

High speed Metal button stamping press machine accuracy mainly effect by the below factor :

1, parallelism

2, verticality

3, the total gap

The high-precision punch not only produces a good product, but also has less damage to the mold, which not only saves the maintenance time of the mold, but also saves the maintenance cost.

Application

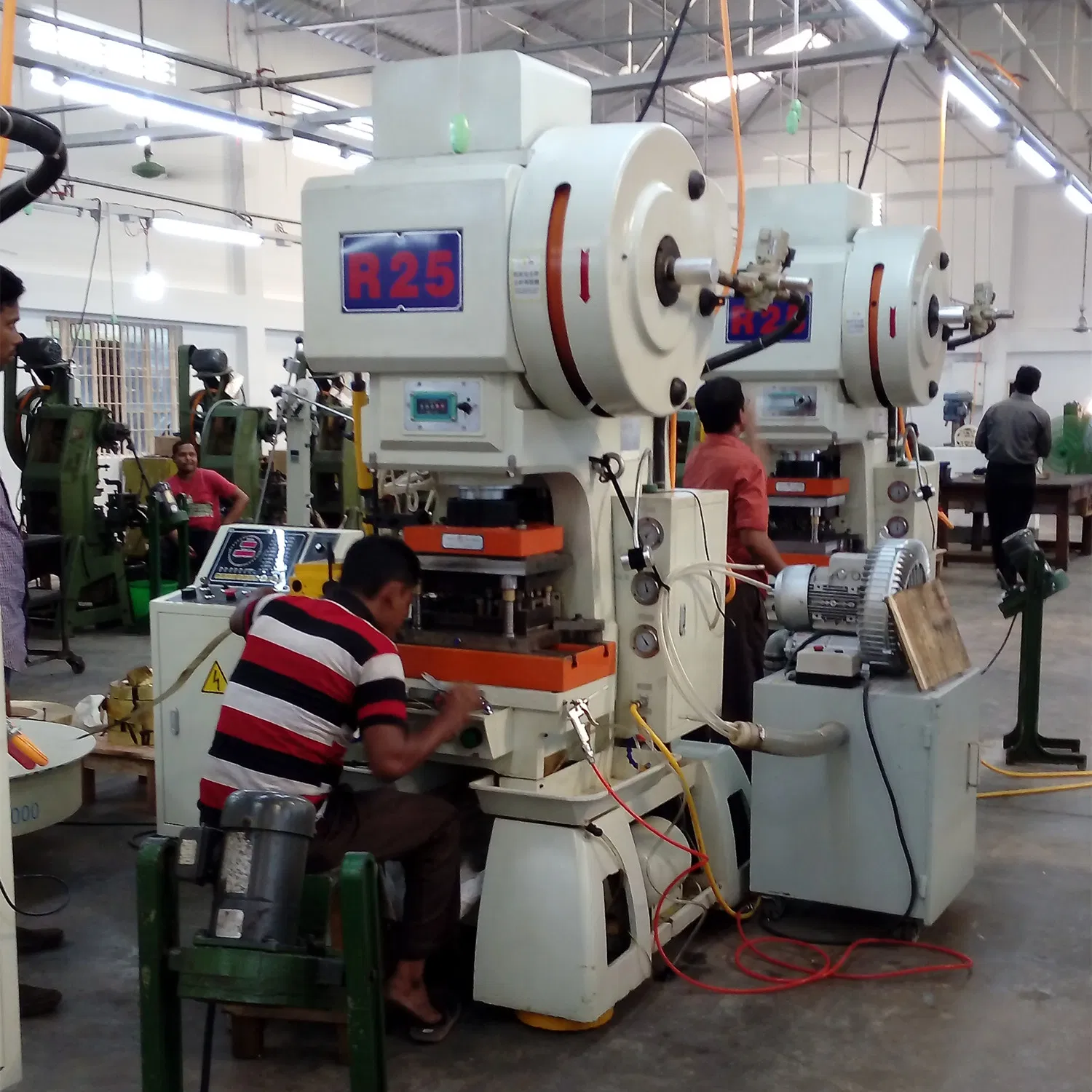

High speed eyelet press machine with Spheroidal graphite casting structure and dynamic balance which speed can reach SPM 900 in Mainland.Low Vibration, Low Noise, High Speed, Precision.Widely used in Garment accessories and electric connectors Automatic production such as metal button, eyelet, Led stand, terminal, saw blad, precision mobile phone accessories.
The configuration of High speed Metal button/eyelet/terminal/Saw blade stamping press machine:

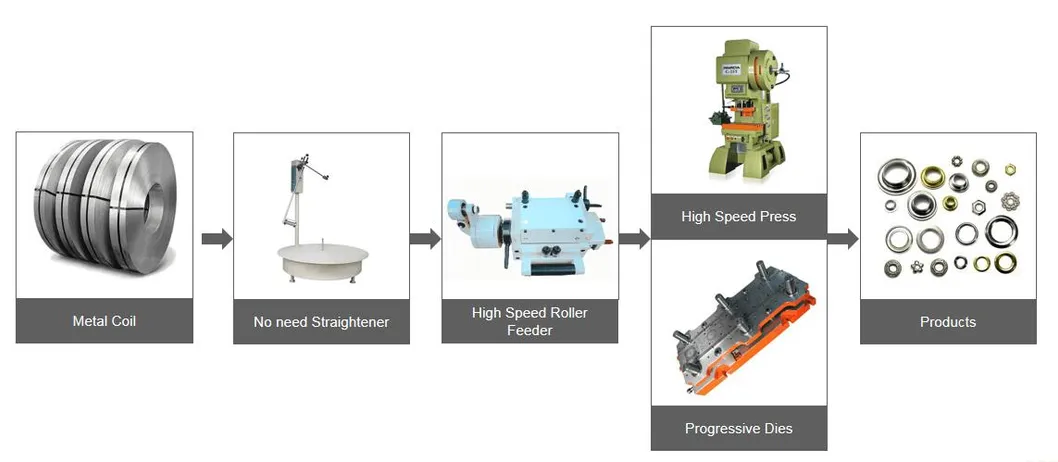

Stept-1: Electrical falt Uncoiler FU-1000, Loading coil and uncoilling coil.
Stept-2: High speed roller feeder machine, Feed coil to press machine.

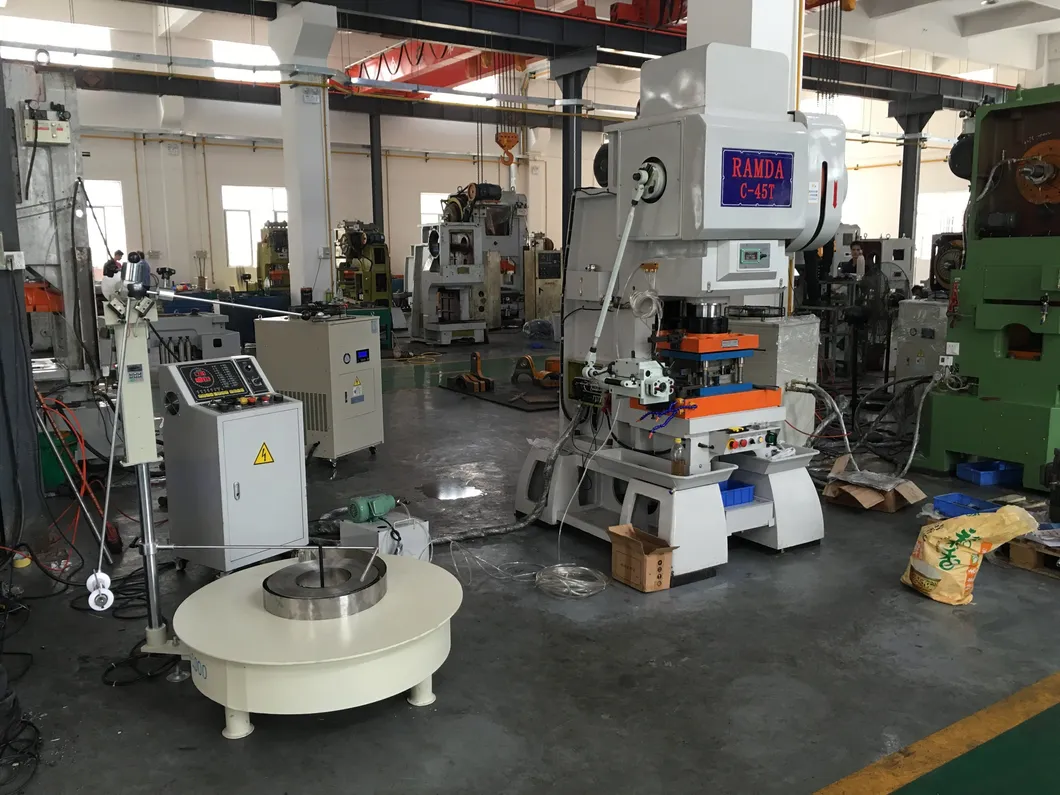

Stept-3: High speed press machine with tools, pressing to the end product.
What's more, we add the water tank, it can protect the mould . The function of water tank is cooling the mould and reduce the wastage of the mould.Our high speed press machine equiped the dynamic balancing device, it can make the machine steady when it works and prolong the service life of equipment.
Specification

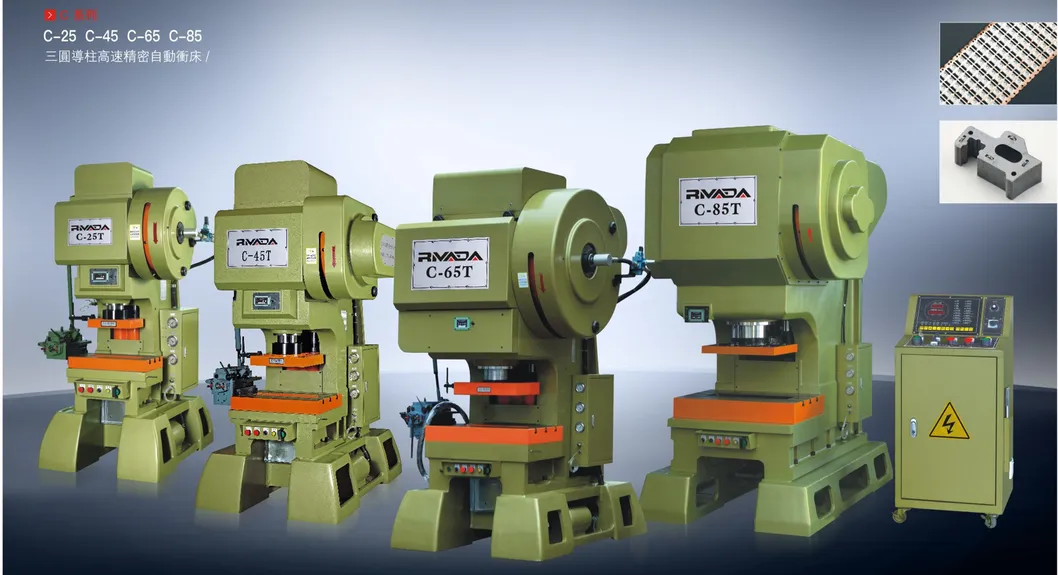

Model	C-25			C-45			C-65			C-85
Capacity	25Ton			45Ton			65Ton			85Ton
Stroke of slide	20mm	25mm	30mm	25mm	30mm	40mm	30mm	40mm	50mm	40mm	50mm	60mm
Speed(SPM)	200-1000	200-900	200-800	200-800	200-700	200-600	200-700	200-600	200-500	200-400	200-300	200-300
Die-height(mm)	185-215	183-213	180-210	213-243	210-240	205-235	206-256	200-250	196-246	310-360	305-355	300-350
Bolster(mm)	600 x 300 x 80			680x 420 x 90			890x520x110			1000x600x150
Area of slide(mm)	320mm x 220mm			420mm x 320mm			550mm x 350mm			700mm x 450mm
Slide adjustment(mm)	30			30			50			50
Bed opening(mm)	100x 300(400)			100 x 400 (500)			100x450(550)			170x600(700)
Motor(HP)	5			7.5			15			30
Machine weight(kg)	2919			5080			8016			14500
Lubrication system	Forceful Automation
Variable speed system	Inverter
Clutch and Brake	Air clutch,Friction brake
Vibration reduction	Mechanical Mounting or Pneumatic Mounting
