High Speed Precision Stamping Power Press Machine for Metal Forming Industry
High Speed Precision Stamping Power Press machine for Metal Forming IndustryH frame High speed press machine use integrated special cast iron alloys with high rigidity and shock resistance. The slider is designed with a long guide and equipped with a slider balancing device to ensure precise and sta......
Send Inquiry

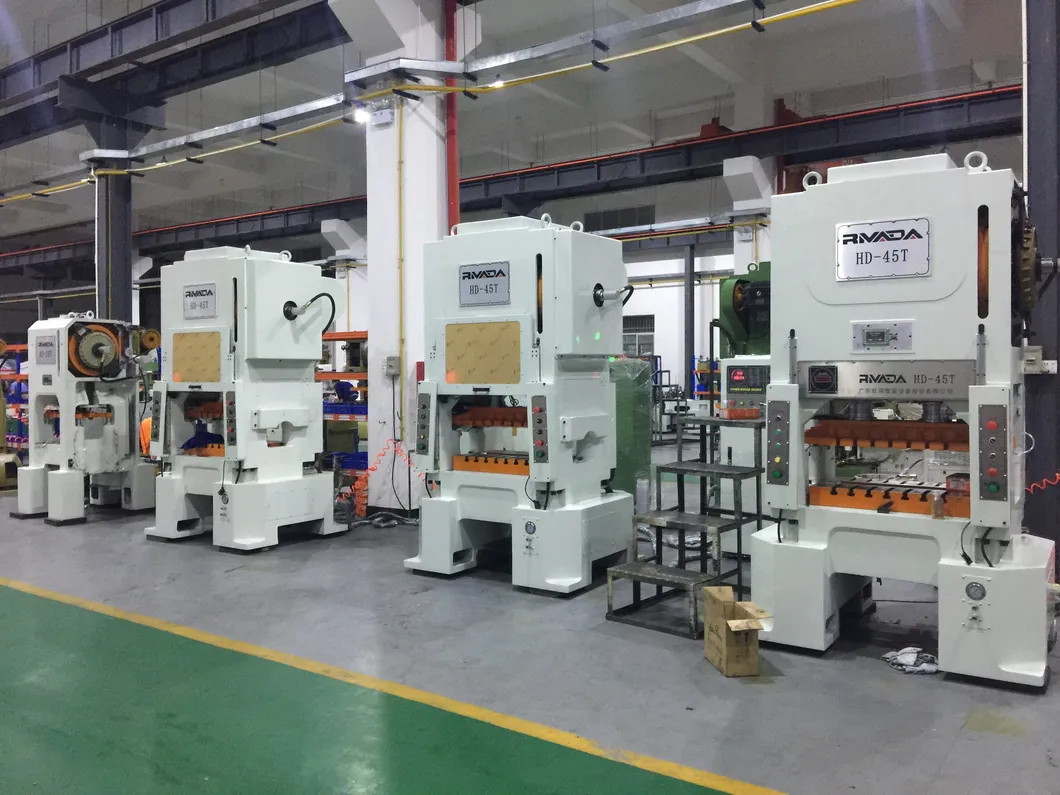

Product Description
H frame High speed press machine use integrated special cast iron alloys with high rigidity and shock resistance. The slider is designed with a long guide and equipped with a slider balancing device to ensure precise and stable operation. All anti-wear components are electronically timed automatic lubrication systems, such as the lack of lubricant, the punch will be fully automatic stop. Advanced and simple control system ensures the accuracy of the running and stopping of the slider. It can be used with any automated production requirements to increase production efficiency and reduce costs.
High-speed press stroke (speed) per minute is very high, so its higher requirements on the lubrication system, only the use of forced lubrication system, and high-speed presses with abnormal lubrication detection function can effectively reduce the probability of failure of the press due to lubrication.
Material Type: Stainless Steel, Copper, Aluminum, Silicion Steel etc.
Material Thickness: 0.1-2.0 mm
Coil Width: 20-400mm
Speed: 200-900SPM

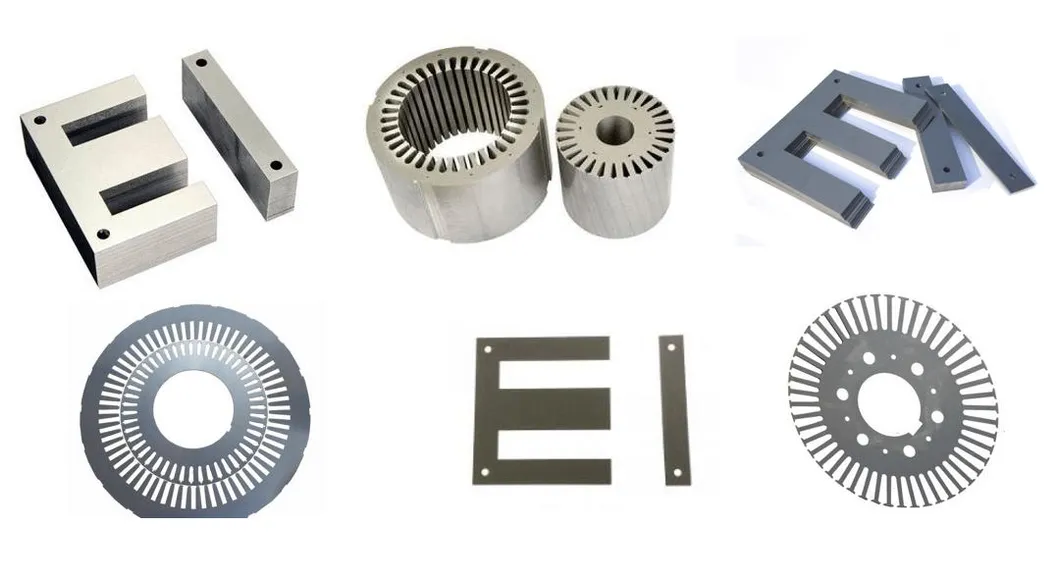

Suitable for Motor and EI lamination stamping line and terminal stamping line
Application

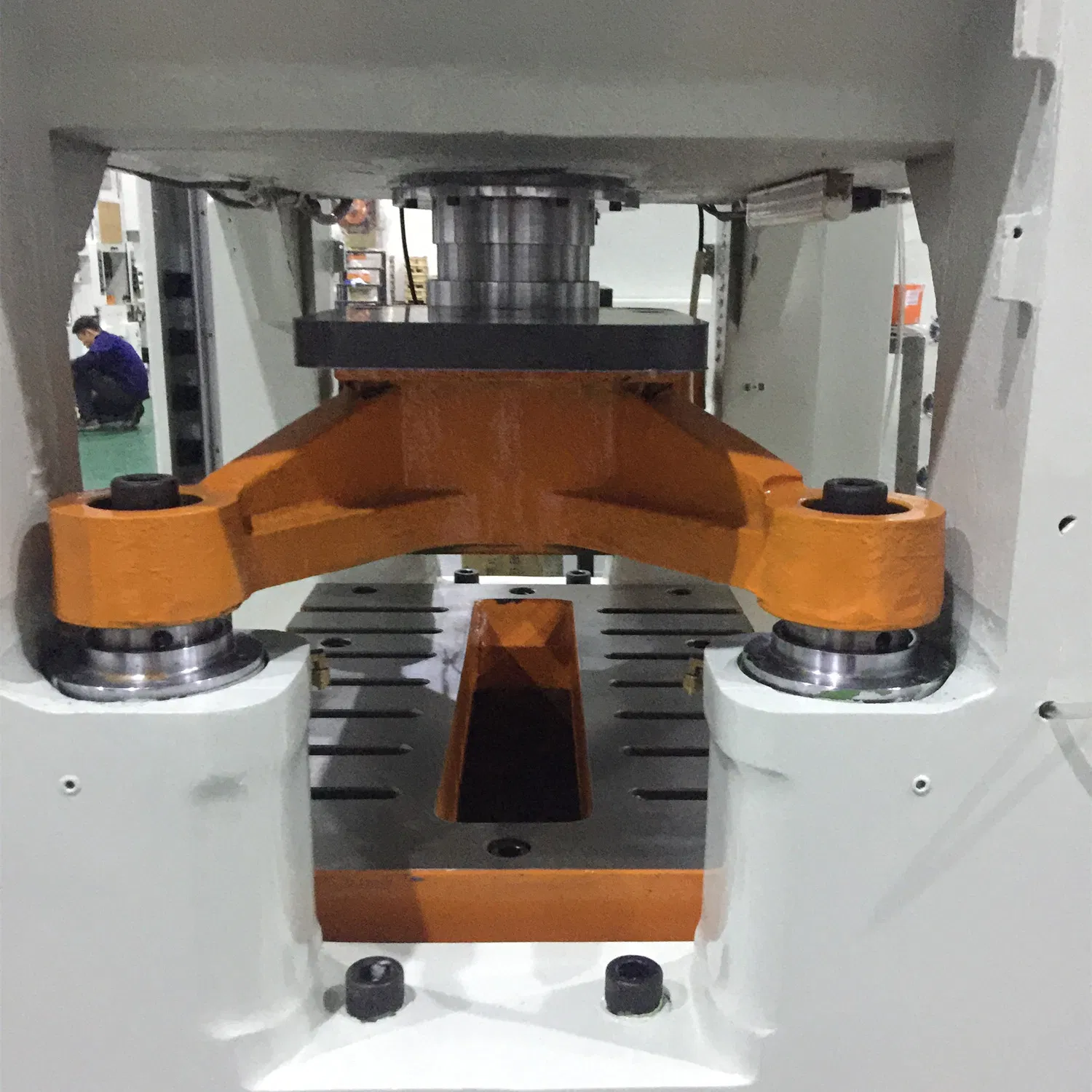

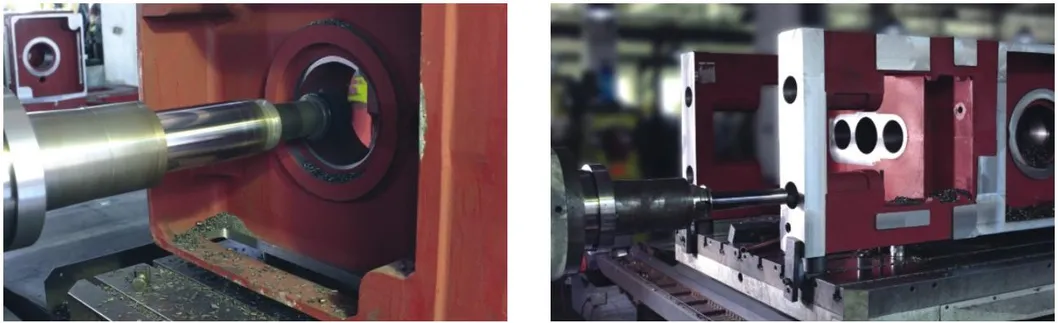

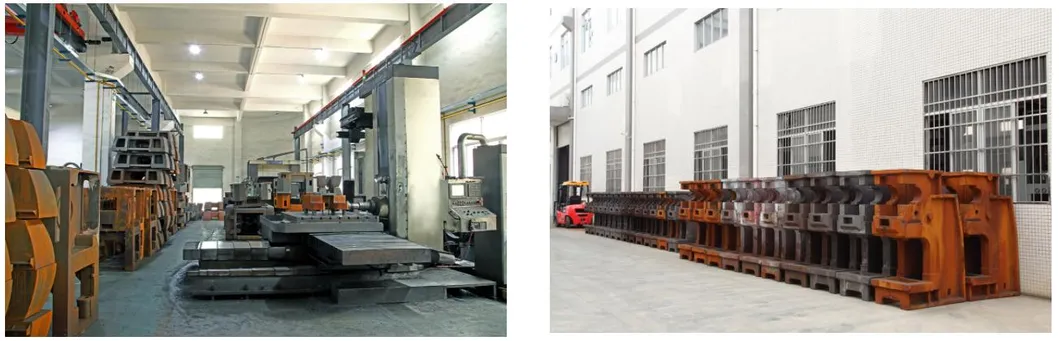

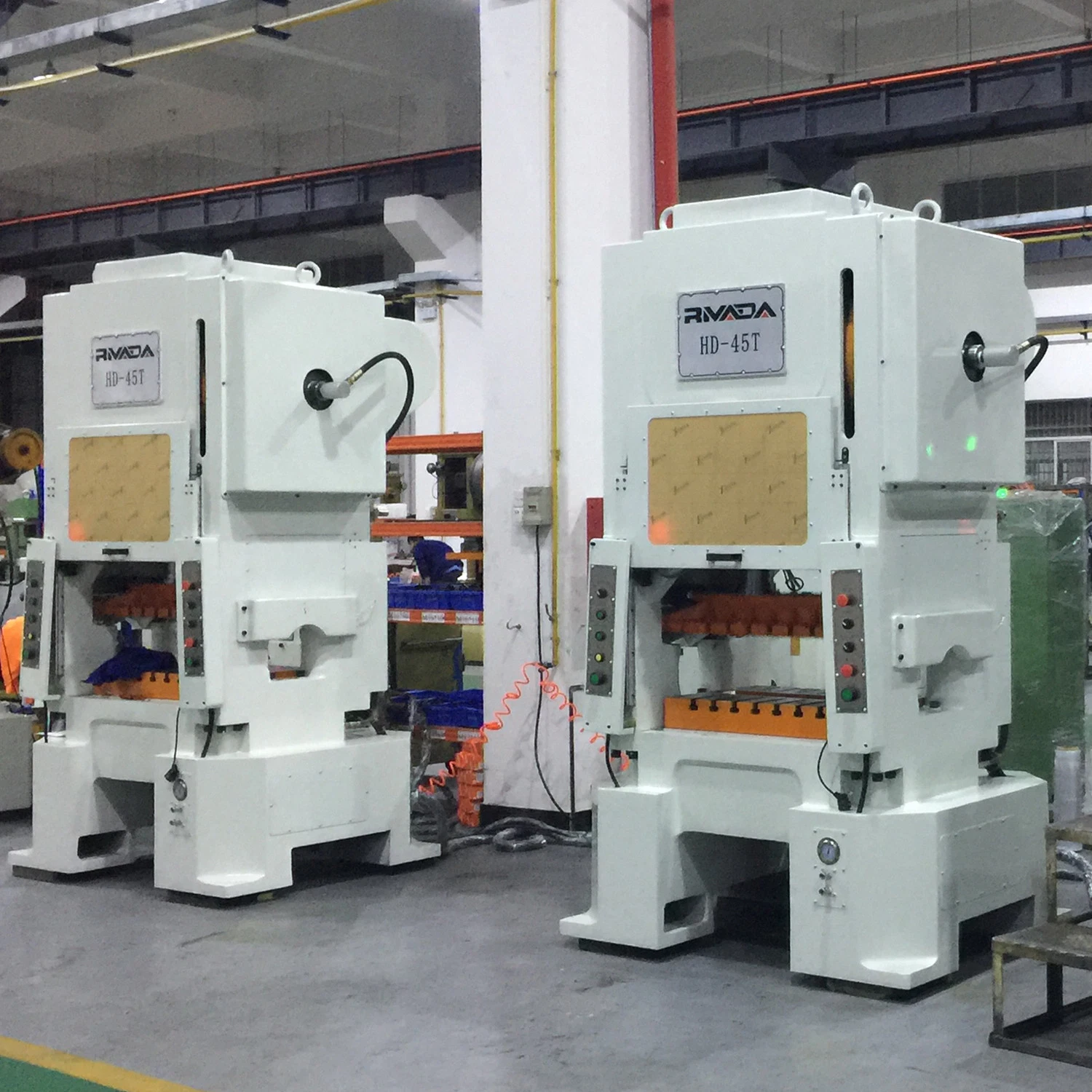

H Frame High Speed Press Machine with Spheroidal graphite casting structure with high rigidity, four pieces of guide pillars and alloy copper sleeve design.

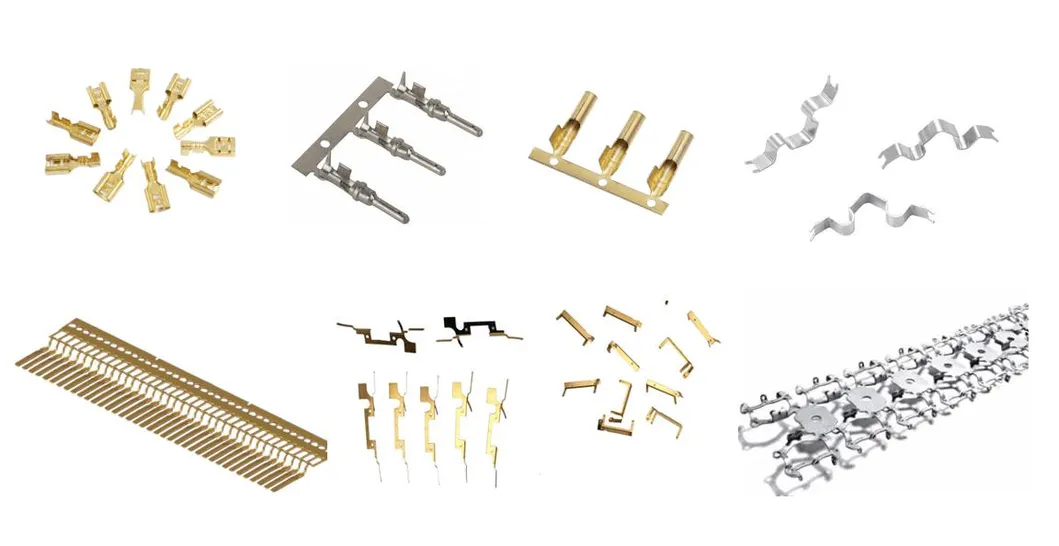

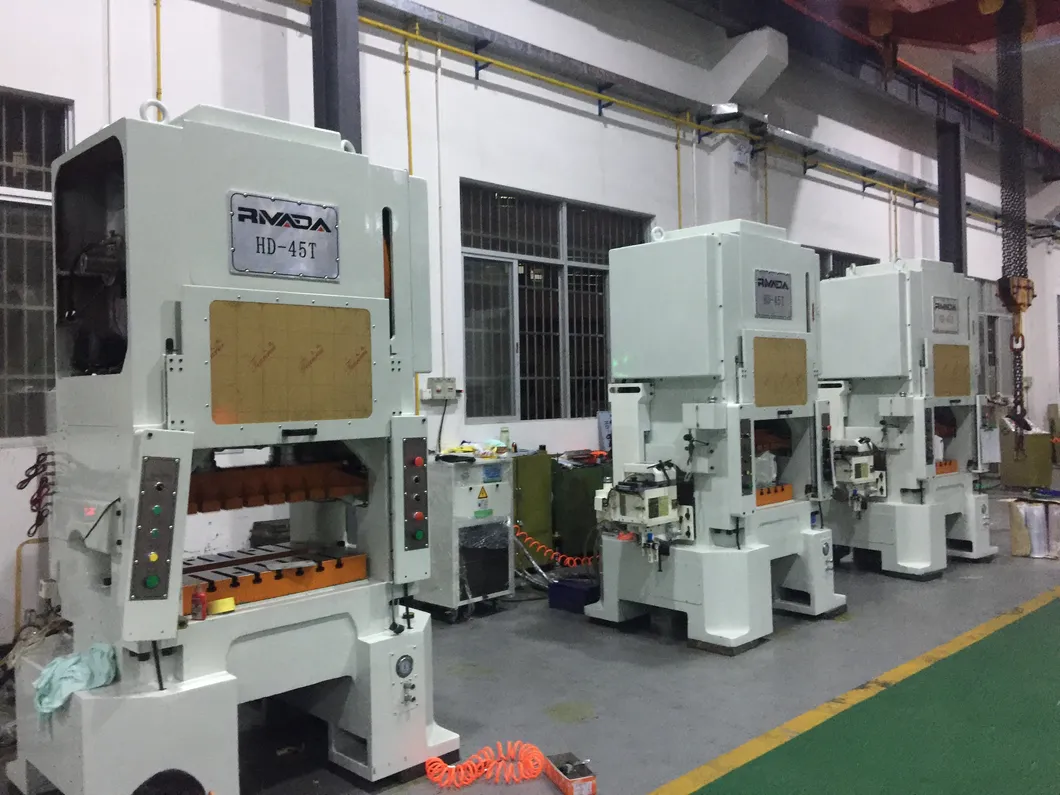

H Frame Press machine is suitable for various fields, eyelet, metal button, motor, connector, computer, mobile phone,LED, car, nonstandard metal parts and so on.

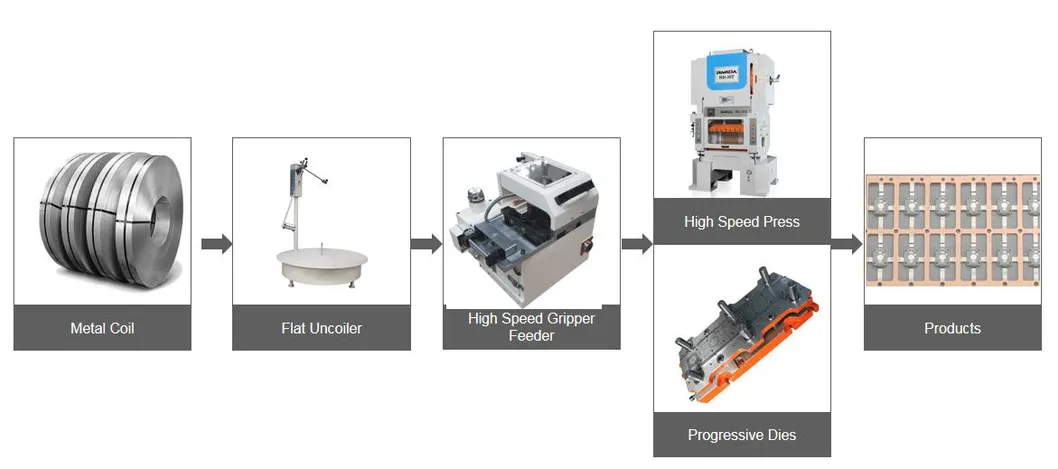

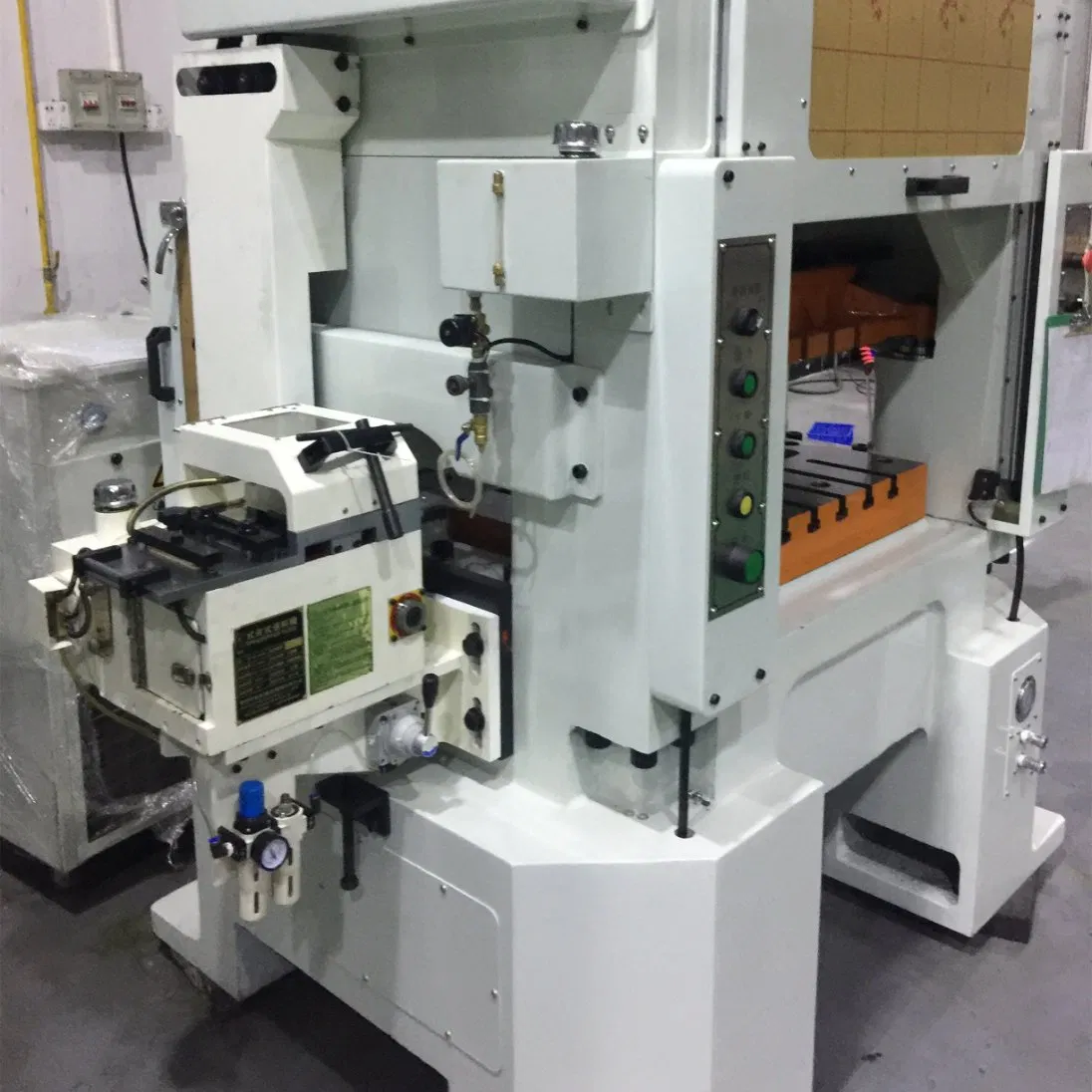

The configuration of High speed press line for making LED parts.
Step-1: Flat Decoiler Machine, Loading coil and uncoilling coil.
Step-2: High speed feeder machine, Feed coil to press machine.
Step-3: High speed press machine with the moulds,pressing to the end product

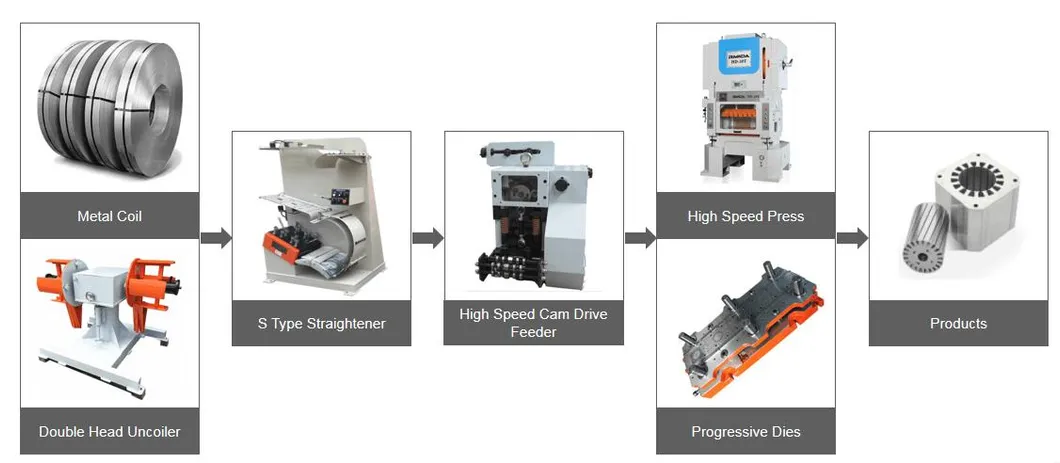

The configuration of high speed press line for Motor and EI lamination
Step-1: Double Head Decoiler machine, Loading coil and uncoilling coil.
Step-2: High speed S Loop Straightener machine, leveling the strips.
Step-3: High speed Cam Feeder machine, Feed coil to press machine.
Step-4: High speed press machine with the moulds,pressing to the end product
Specificationic Parameter

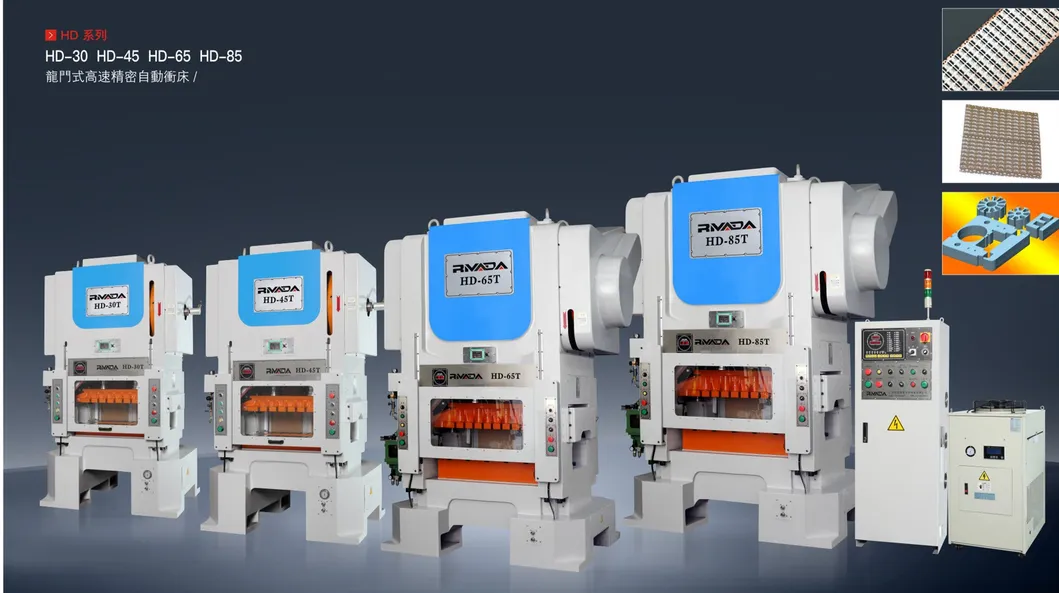

Model | RH-30 | RH-45 | RH-65 | RH-85 | ||||||||
Capacity | 30Ton | 45Ton | 65Ton | 85Ton | ||||||||
Stroke of slide | 25mm | 30mm | 40mm | 25mm | 30mm | 40mm | 30mm | 40mm | 50mm | 30mm | 40mm | 50mm |
Speed(SPM) | 200-900 | 200-800 | 200-600 | 200-900 | 200-800 | 200-600 | 200-600 | 200-500 | 200-400 | 200-700 | 200-600 | 200-500 |
Die-height(mm) | 192-232 | 190-230 | 185-225 | 208-248 | 205-245 | 200-240 | 270-320 | 265-315 | 260-310 | 370-320 | 365-315 | 360-310 |
Bolster(mm) | 660mmx460mmx110mm | 780mmx650mmx120mm | 950mmx700mmx135mm | 1200mmx900mmx150mm | ||||||||
Area of slide(mm) | 630mm x 330mm | 730mmx380mm | 900x450 | 1100x650 | ||||||||
Slide adjustment(mm) | 40mm | 40mm | 50mm | 50mm | ||||||||
Bed opening(mm) | 100x 500 | 120x550 | 125x650 | 850x150 | ||||||||
Motor(HP) | 10 | 15 | 25 | 30 | ||||||||
Machine weight(kg) | 5200kg | 8516kg | 16080kg | 19000kg | ||||||||
Lubrication system | Forceful Automation & oil cooler | |||||||||||
Variable speed system | Inverter | |||||||||||
Clutch and Brake | Air clutch,Friction brake | |||||||||||
Vibration reduction | Mechanical Mounting or Pneumatic Mounting | |||||||||||
FAQ
SUNRUI MACHINE receives T/T payment and LC at sight when the amount over USD15000.00.
For standard decoiler, straightener or feeders, the usually lead time is about 10-25 workdays, but we usually have machines in stock. Please contact with our sales if you need the coil handling equipment urgently.
For compact coil feed lines or whole metal stamping lines, it needs 30-70 workdays depends on different specifications and production plan in our factory.
3. What's warranty time of your machine?
Usually the warranty time is 12 months. Also the warranty time can be extend acorrding the specific requirements.
4. What after-sales service does SUNRUI provide?
For the standard decoiler straightener feeder machine, it's easy to install and debug it, most of our customers can do it by themselves; And what's more, our technical engineer can teach your operators how to install and operate it. SUNRUI machine on-site training will avoid operational problems that are easy to occur at the beginning of production. The training after sales service will create more value for your employees.
For the compact coil feed machine and complete metal stamping line, SUNRUI can arrange engineers to go overseas for the coil handling equipment installation. They guide the customer's operators on-site. Then the commissioning phase will smoothly enter into the mass production phase.
5. What's the package of your coil feeding machine?

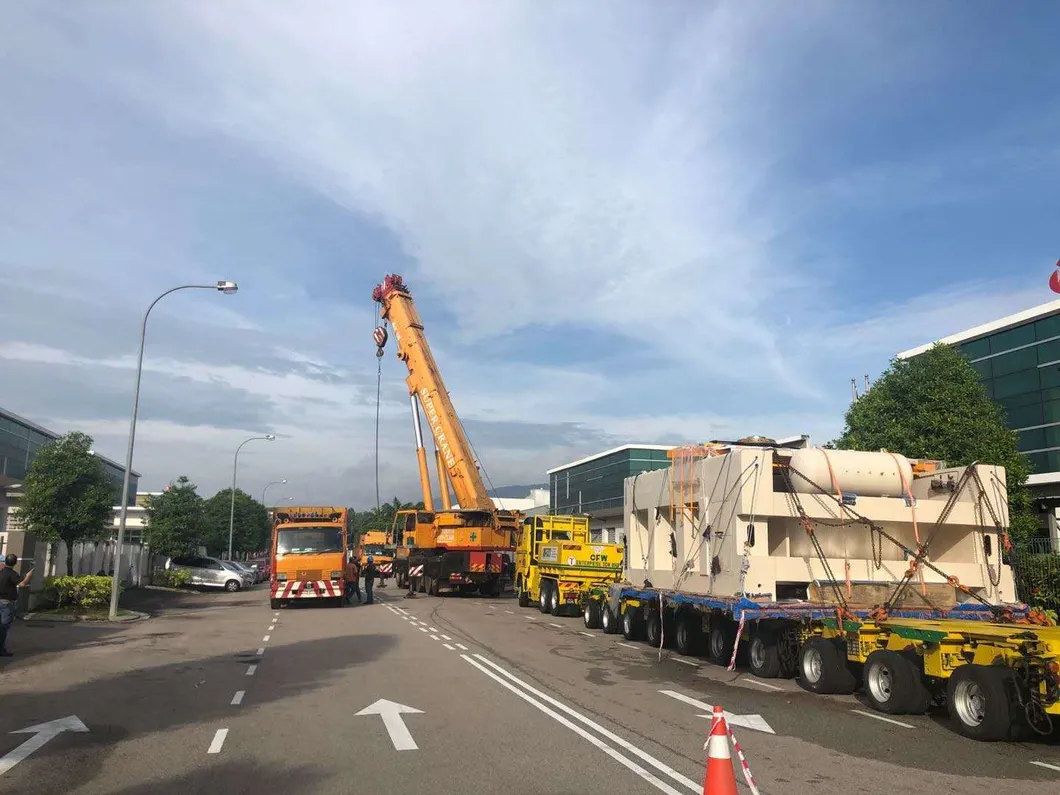

For standard small decoiler, straightener, feeder which go LCL shipping, SUNRUI machine will use plastic films cover the equiment, and then fix it into a woodencase.
For the coil feed lines and complete line which go FCL shipping, SUNRUI machine will fix each part with ropes on the shipping container and then wrapped them with plastic films.
Here with some pictures for your reference.
