Product Description

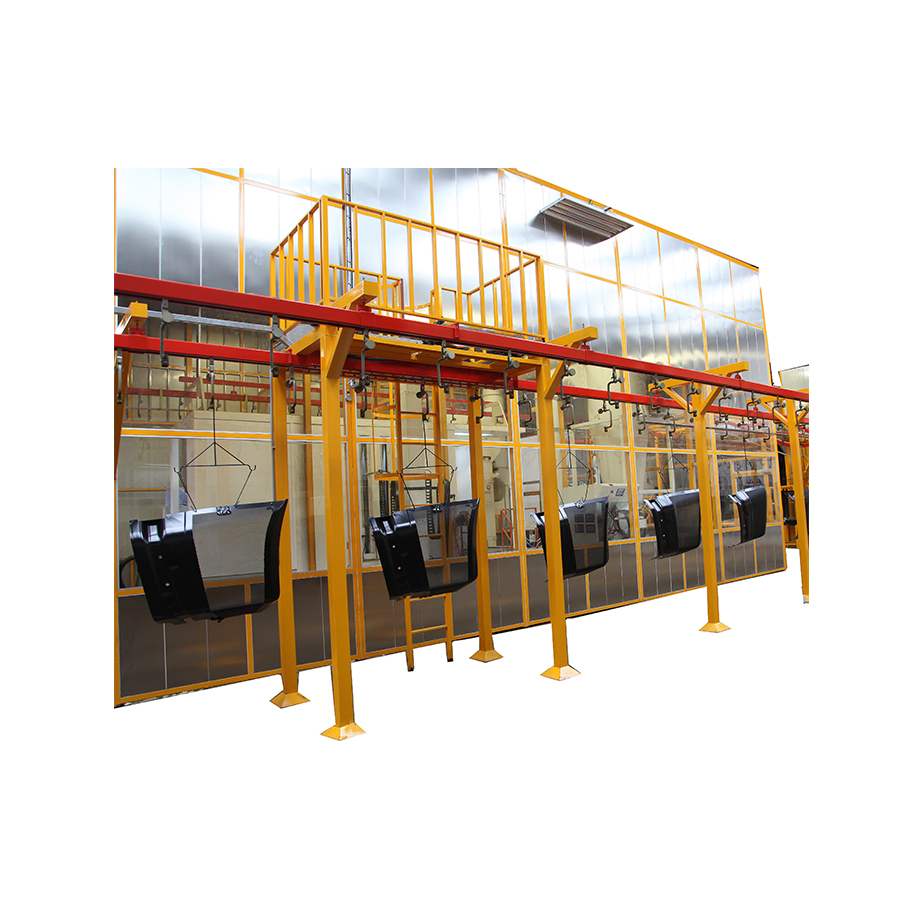

Energy-Saving Electrophoresis Coating Line

Technical advantages:
1. Non-poisonous
2. Easy automatic control
3. Water solubility

Company advantages:
1. More than 10-years experience
2. Technical team of engineers
3. Various successful projects

Main parts of the full line:
1. Pretreatment device

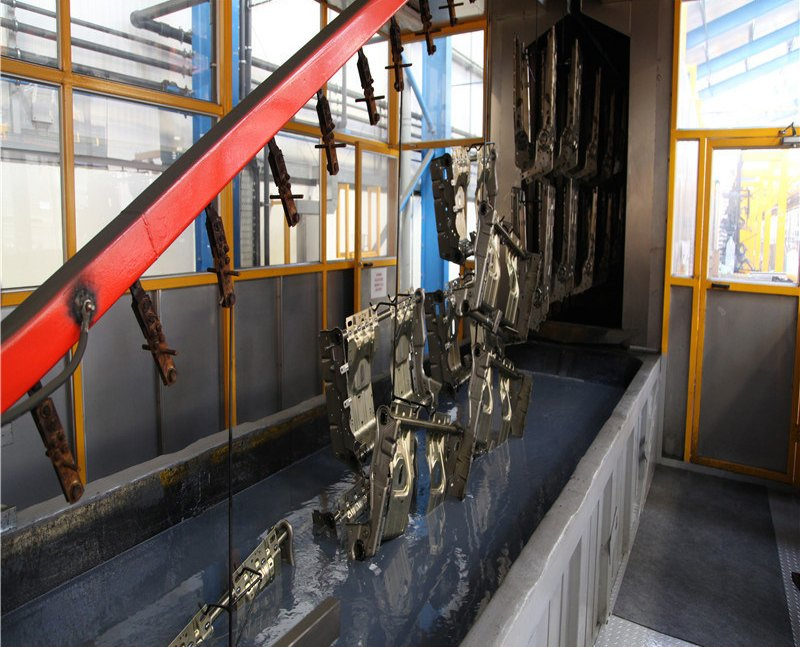

2. Electrophoretic tank system
3. Electrophoretic transferring tank system
4. Stirring apparatus
5. Filter system
6. Water washing system

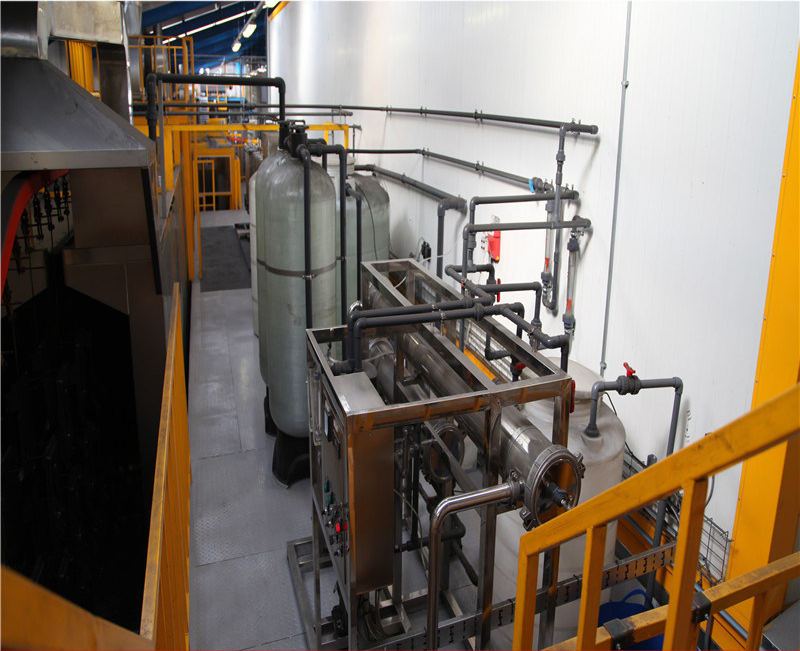

7. Ultrafiltration system

Energy-Saving Electrophoresis Coating Line

Parameters:

No.	Item	Description
1	Voltage	Iron and steel: 40~70V; Aluminum: 60~100V; Zinc: 70~85V
2	Electrophoresis time	1~3 min for normal workpieces,3~4 min for large workpieces
3	Temperature of paint	15~30ºC
4	PH value of paint	7.5~8.5
5	Distance between the workpieces and the cathode	More than 20 cm

Product Catalog:
*Coating line	Automatic/Manual/Semi powder coating line; Automatic/Manual/Semi paint spraying line; Electrophoretic painting line; Electrostatic powder coating/painting line etc.
*Coating booth	Powder coating booth with large cyclone; Powder coating booth with small cyclone; Powder coating booth with recycling system; Painting booth; Water curtain painting booth, Sand blasting booth; Shot blasting booth, etc.
*Conveying system	Chain conveyor, Belt conveyor, Plate conveyor, Overhead conveyor and Power and free conveyor are all available according to the clients' requirements.
*Coating oven	Drying oven and curing oven with various heating energy, like gas, electricity, diesel, etc.
*Coating machine	Electrostatic powder coating gun (OURS-808 and OURS-2014); Airless paint sprayer, etc.
Our service:
*Free design	Free drawing designed by our engineer according to the actual requirements of clients.
*High quality and competitive price	We promise to provide high quality equipment with best price.
*Customized equipment	Customized equipment completely based on the drawing.
*Overseas installation and commissioning	On-site installation and commissioning of coating lines.
*Warranty	At least one year after the acceptance of the client.
