Hcvac Door Handle Metal PVD Decorative Coating Machine (JTL- 0910 )
HCVAC Doorhandle PVD Decorative Coating Machine This machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.Characteristic: The principl......
Send Inquiry
Product Description

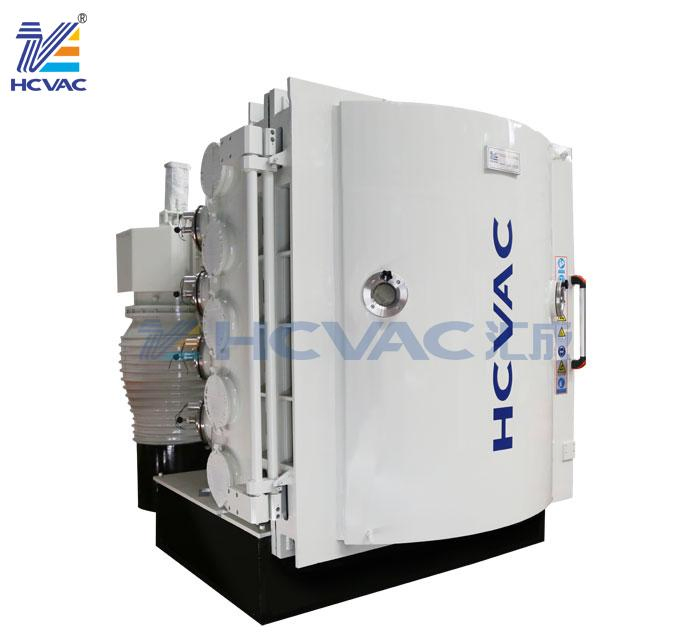

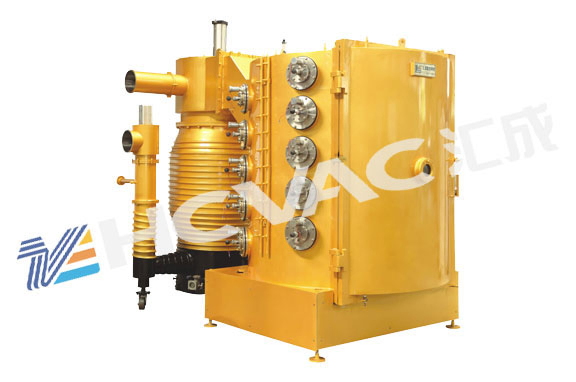

HCVAC Doorhandle PVD Decorative Coating Machine
This machine is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.

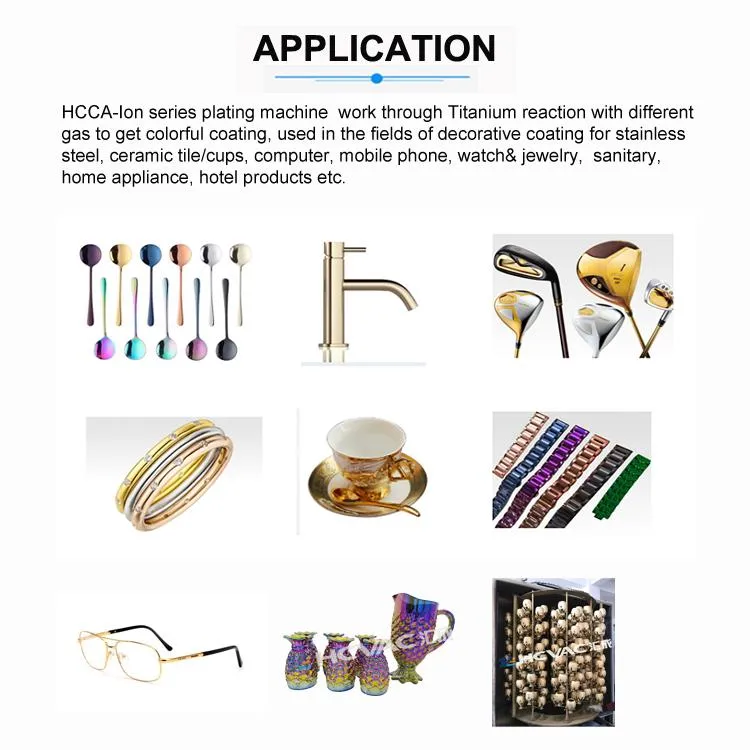

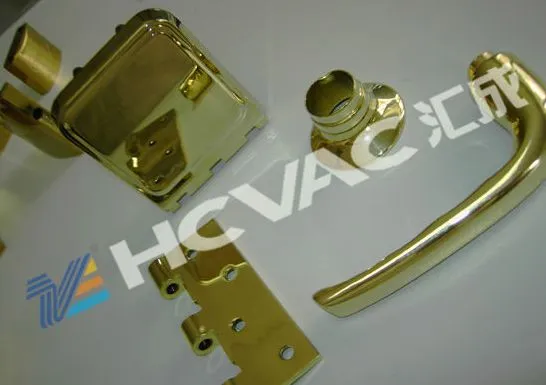

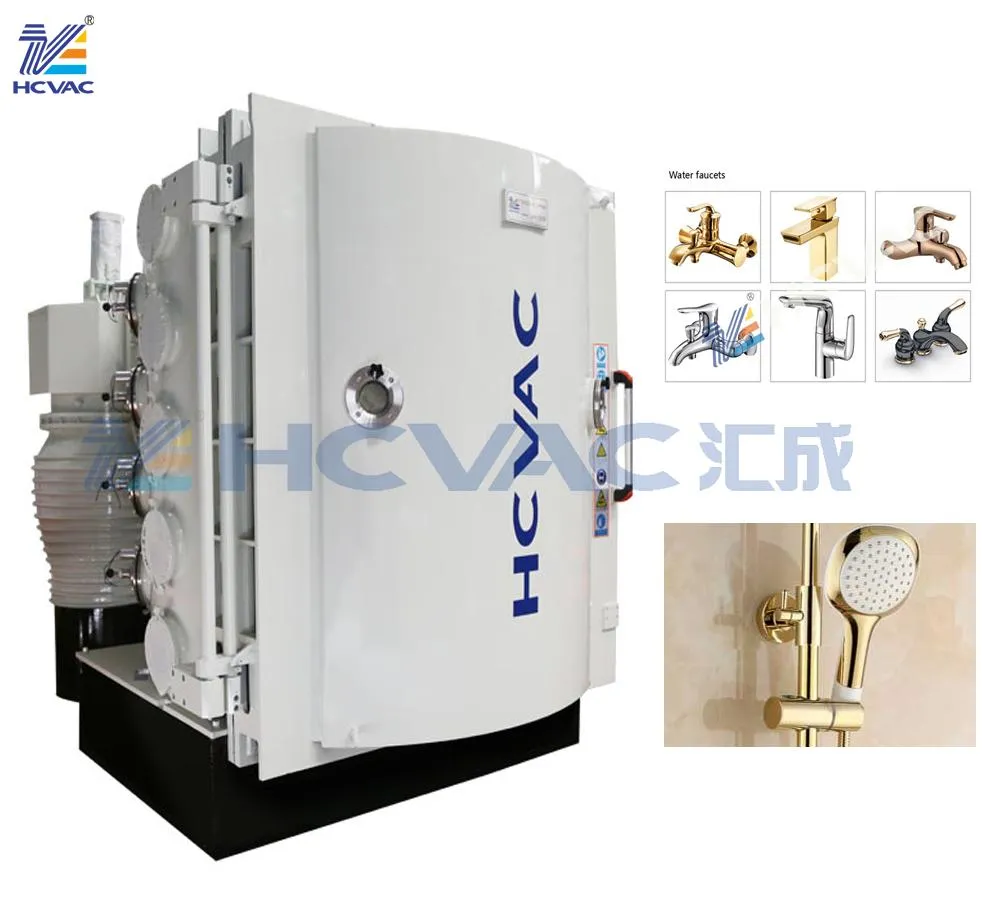

Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment. This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
All the vacuum metallizers are environmental protection products and sooner or later will replace tradition galvanization industries.
| Mode | LH-1215 | LH-1618 | LH-2121 |
| Dimension | D1250*H1500mm | D1600*H1800mm | D2100*H2100m |
| Coating mode and | Twelve arc targets | Eighteen arc targets | Twenty two arc targets |
| main confirguration | |||

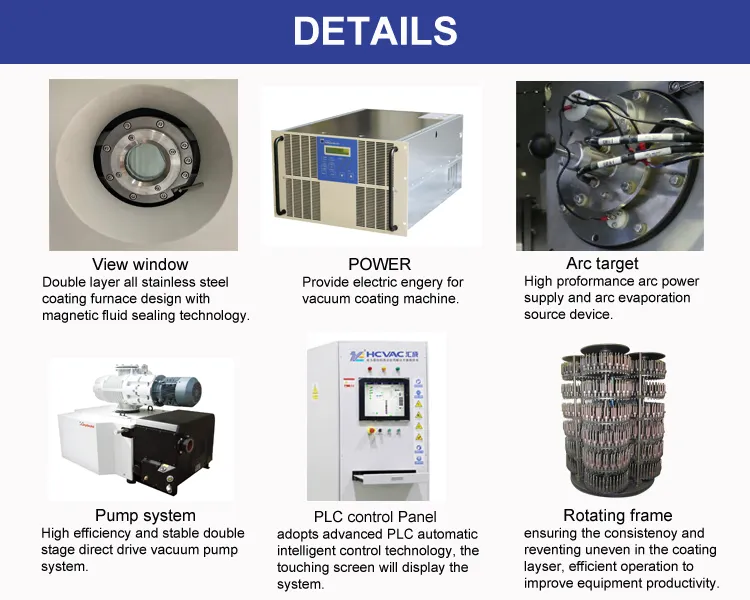

| Power source | Electric-arc power, Filament power, Pulsed bias power supply | ||
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve | ||
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling | ||
| Vacuum system | Diffusion pump +Roots pump +Mechanical pump(5.0*10-4Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10-5Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. | ||
Why Choose HCVAC system?
- Over 3000 plants installed worldwide
- Quick cycle times
- High production capability with low energy consumption
- More up time due to ease of loading/unloading and low maintenance
- High productivity with only a single operator
- Steel process chambers, built to last
- Eco-friendly
- Space saving design
- PVD option available on all plants
- 1 year component warranty and 25 years minimum guaranteed working life
- Complete global network of consulting, engineering and renowned after sales service
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the full set special coating solution for each customer; combine the full set production technics to meet your requirements, to ensure high efficiency of production.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
More information, pls be feel free to contact with us.
