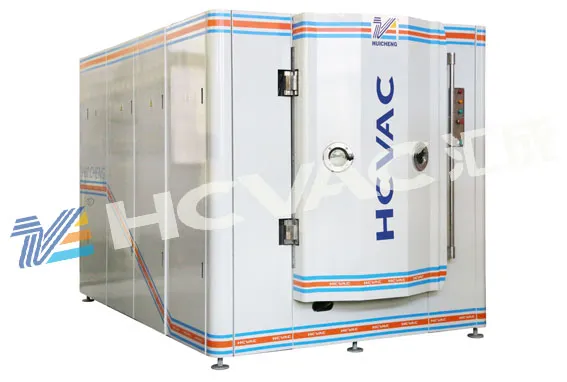

Hcvac Titanium Nitride Plasma Ion Coating Machine/Plasma Ion Plating System
Titanium Nitride Plasma Ion Coating Machine/Plasma Ion Plating SystemThis machine mainly integrate the technology of arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films. The coating will be good adhesion, scratch-proof.The princi......
Send Inquiry
Product Description
Titanium Nitride Plasma Ion Coating Machine/Plasma Ion Plating System
This machine mainly integrate the technology of arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films. The coating will be good adhesion, scratch-proof.
The principle of vacuum electric arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation, ionization material, combine pulsed bias technical to improve the energy and activity of deposited particles, and enhance the properties of coating. It can deposit coatings on the surface of metal as well as non-metal.

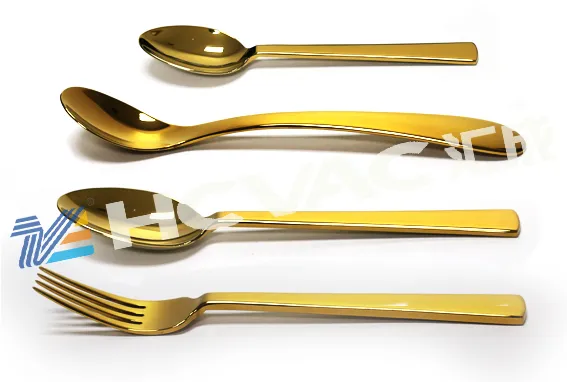

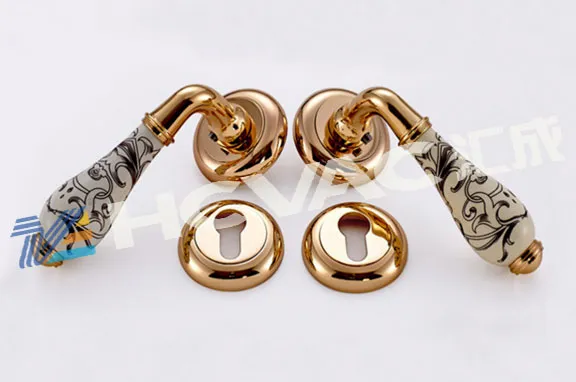

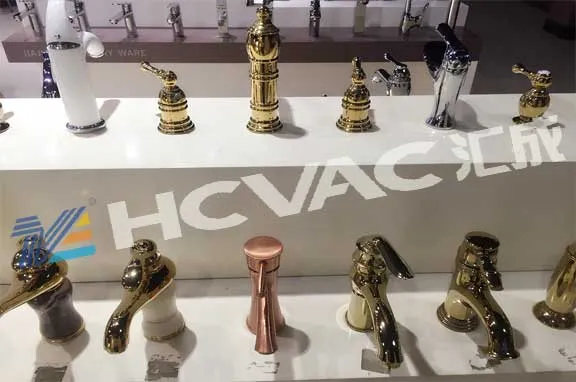

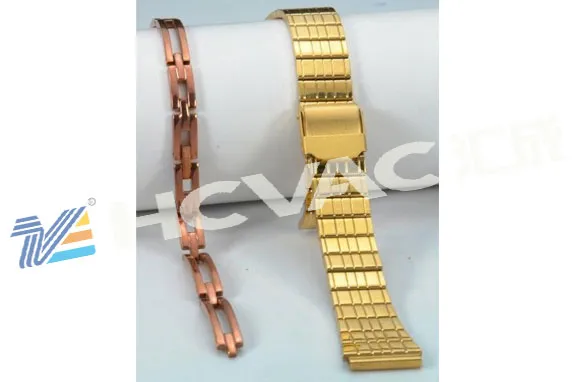

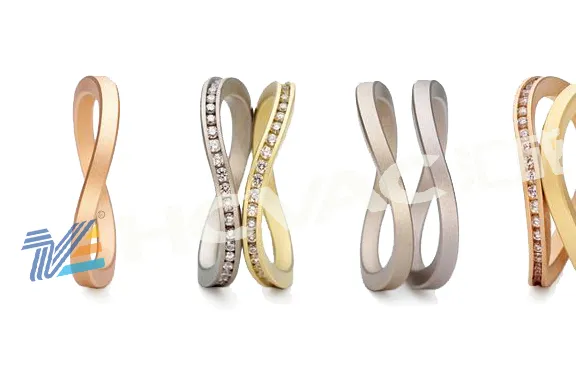

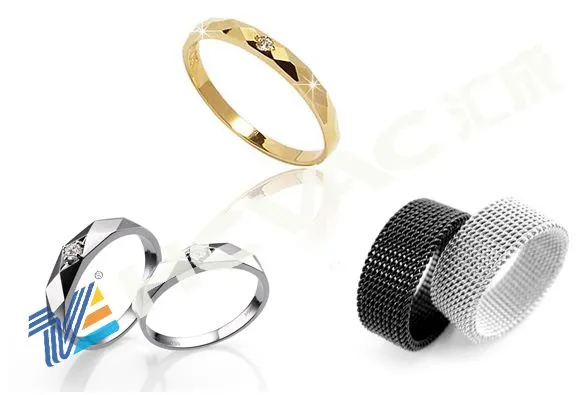

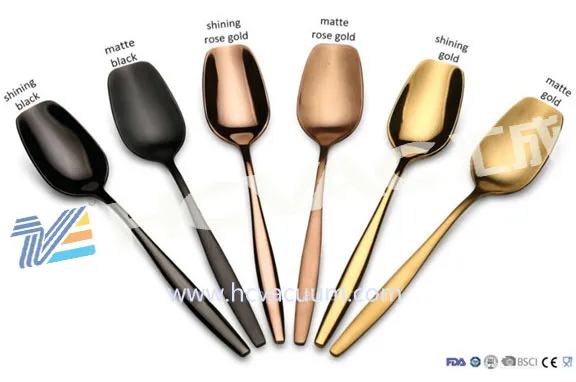

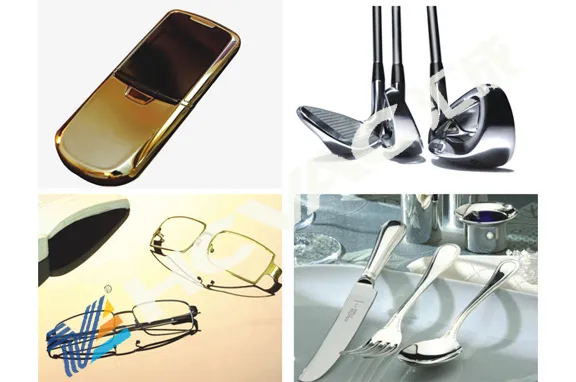

Applied industries: It is widely used in the watchband, watchcase, jewelry, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films. It can get fineness and smooth film, good adhesion. Samplescoating effect!
It can also coat TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.
The coating experts of your own company: Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technicto meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Please feel free to contact us for further information!
Contact: Lillian Yang
Technical parameters:
Why a HCVAC system?
Over 1000 plants installed worldwide
Quick cycle times
High production capability with low energy consumption
More up time due to ease of loading/unloading and low maintenance
High productivity with only a single operator
Steel process chambers, built to last
Eco-friendly
Space saving design
PVD option available on all plants
1 year component warranty and 12 years minimum guaranteed working life
Complete global network of consulting, engineering and renowned after sales service
This machine mainly integrate the technology of arc ion evaporation, combining the ion source and the pulse bias voltage. It is full automation control when coating films. The coating will be good adhesion, scratch-proof.
The principle of vacuum electric arc ion coating is based on cold cathode, self-sustained arc discharge plasma evaporation, ionization material, combine pulsed bias technical to improve the energy and activity of deposited particles, and enhance the properties of coating. It can deposit coatings on the surface of metal as well as non-metal.
Applied industries: It is widely used in the watchband, watchcase, jewelry, mobile shell, hardware, tableware, etc. It can coat TiN, TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films. It can get fineness and smooth film, good adhesion. Samplescoating effect!
It can also coat TiC, TiCN, TiAlN, CrN, Cu, Au, Al2O3 and other decorative films.
The coating experts of your own company: Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technicto meet your requirements, to ensure high efficiency of production.
Easy to implement
To many people unfamiliar with the process, PVD coating technology seems complicated. However, with the right investments and a good support, it is easier than expected. HCVAC has developed a turnkey coating process that makes a PVD coating centre easy to implement. A complete coating process consists of several steps: Stripping (depending on the part's history); Pre-treatment; Quality control; Cleaning & drying; Fixturing & visual inspection; PVD coating; Quality control & thickness measurement and post-treatment (depending on the application). These steps are all available from one partner: HCVAC Technology, including mature technics and coatings.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
ISO 9001 standard to ensure the quality can meet the customer's requirements.
Please feel free to contact us for further information!
Contact: Lillian Yang
Technical parameters:
| Mode Dimension | JTL-900 | JTL-1100 | JTL-1250 |
| 900*1000mm | 1100*1000mm | 1250*1100mm | |
| Coating mode and main confirguration | Six multi-arc targets + one set of column targets + one set of plane rectangle magnetron sputtering targets | Six multi-arc targets + a pair of twin (MF)magnetron sputtering targets | Twelve multi-arc targets + two sets of plane rectangle magnetron sputtering targets+ a pair of twin (MF)magnetron sputtering targets |
| Power source | Electric arc power, DC magnetron power, MF magnetron power, filament power, pulse power, linear ionized source. | ||
| Process gas control | Quality flowmeter + electromagnetism ceramic valve | ||

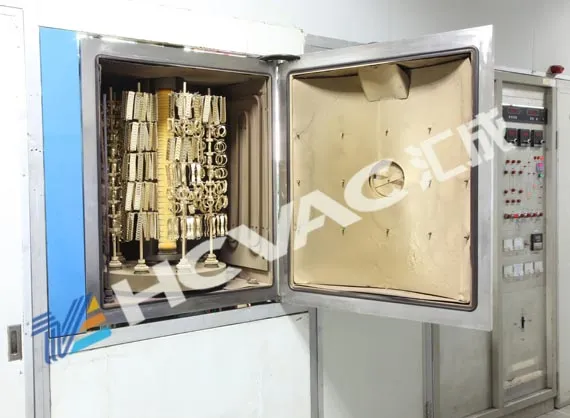

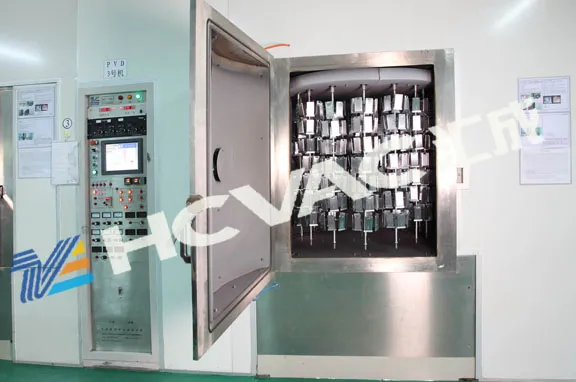

| Vacuum chamber structure | Vertical single(side) door, pump system postposition, double water-cooling | ||
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(5.0*10 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.0*10 -4 Pa) | ||
| Workpiece baking temperature | Normal temperature to 350 centi-degree PID control, radiation heating. | ||
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute | ||
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa | ||
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode | ||
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. | ||
Why a HCVAC system?
Over 1000 plants installed worldwide
Quick cycle times
High production capability with low energy consumption
More up time due to ease of loading/unloading and low maintenance
High productivity with only a single operator
Steel process chambers, built to last
Eco-friendly
Space saving design
PVD option available on all plants
1 year component warranty and 12 years minimum guaranteed working life
Complete global network of consulting, engineering and renowned after sales service
