Chaoxu ABS PC Plastic Sheet Extrusion Machine for Hardside and Soft Trolley Travel Bag Luggage Production

Product Description

Products Description:

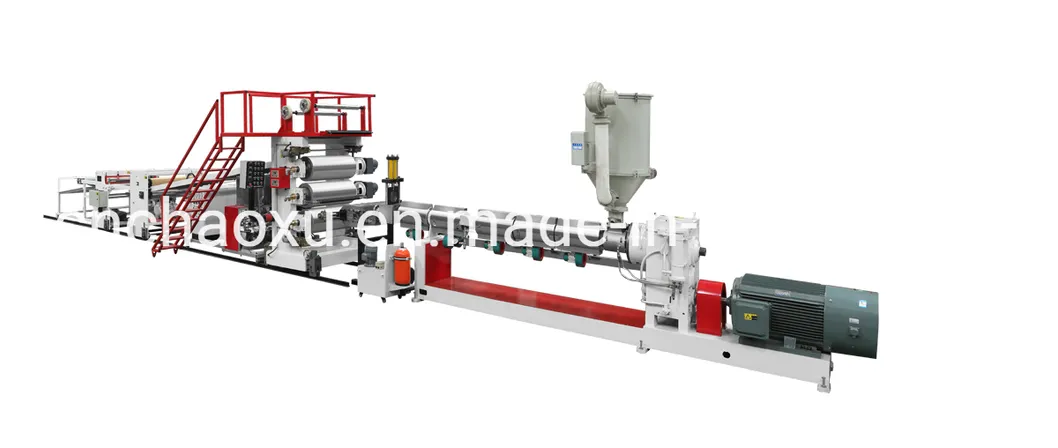

CHAOXU ABS PC Plastic Sheet Extrusion Machine for Hardside and Soft Trolley Travel Bag Luggage Production

Technique parameter:

Model	YX-21AP
Plate thickness	1-4mm
Plate Width	1-900mm
Weight	14T
Total Power	130kw
Overall Dimension	1760057003300mm
Yield	Around 300KG/HR
Auto Grade	Full Auto
Brand of Main Electrical Parts	Schneider,RKC,Rittal,Siemens,etc.
Diameter of Roller	400mm or customized
Diameter of Barrel	100/70/50mm or customized
Lamination Device	Included,printed film on the sheet is ok
Distribution Device	Included,more layers sheet can be made
Layers of Sheet	1-3 layers

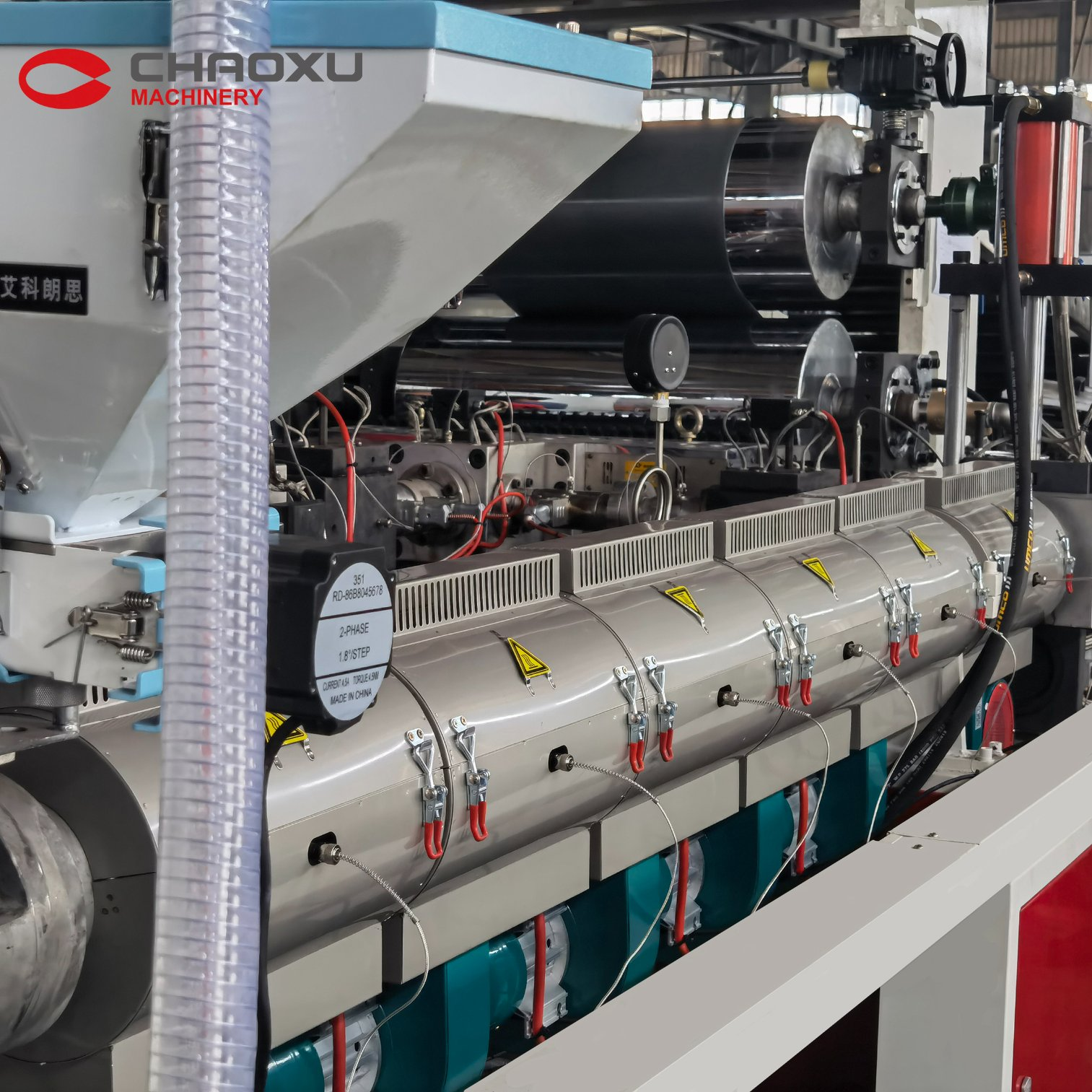

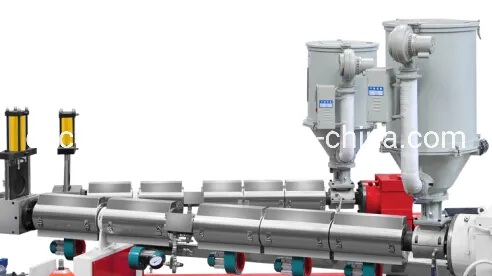

Extrusion Screws

According to the different material features, it adopts ideal,reasonable and high-efficiency tow-layers extruder, which has the
characteristics of high output,good plasticizing capacity.

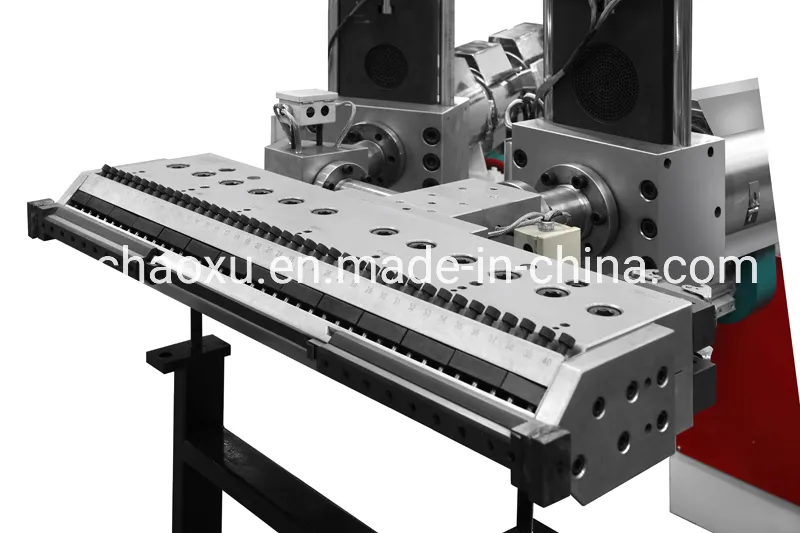

Mould

This mono-layer of multi-layer co-extrusion mould is adopted hanger design.It processes hard chrome plating and mirror polishing,
ensuring to extrude stable,uniform,good smooth finish sheet

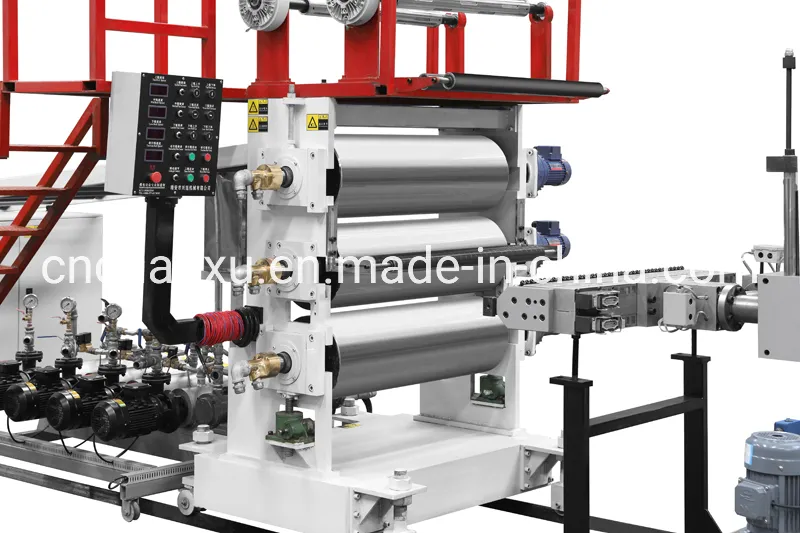

Three-roller Calender

It adopts vertical structure and the independent control of oil and water control device,to ensure precise constant temperature
control .Rollers adjust the speed independently,which has the characteristics of easy operation,easy to adjust thickness,high
density sheet

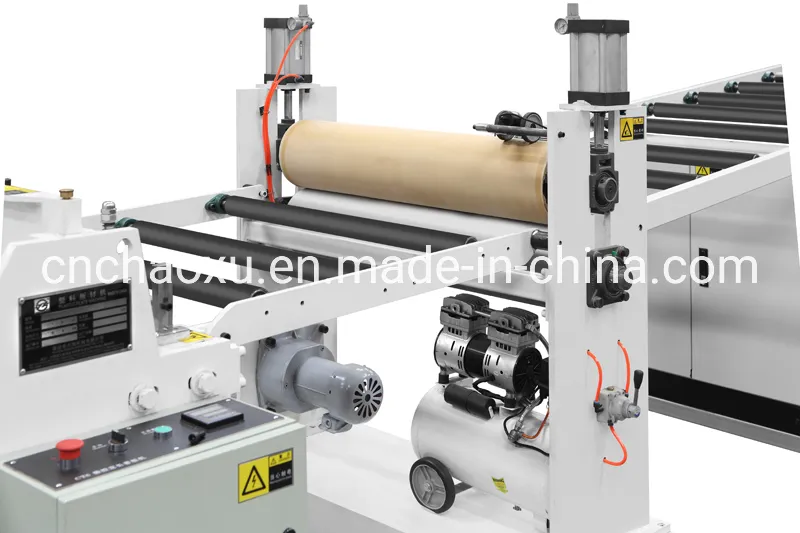

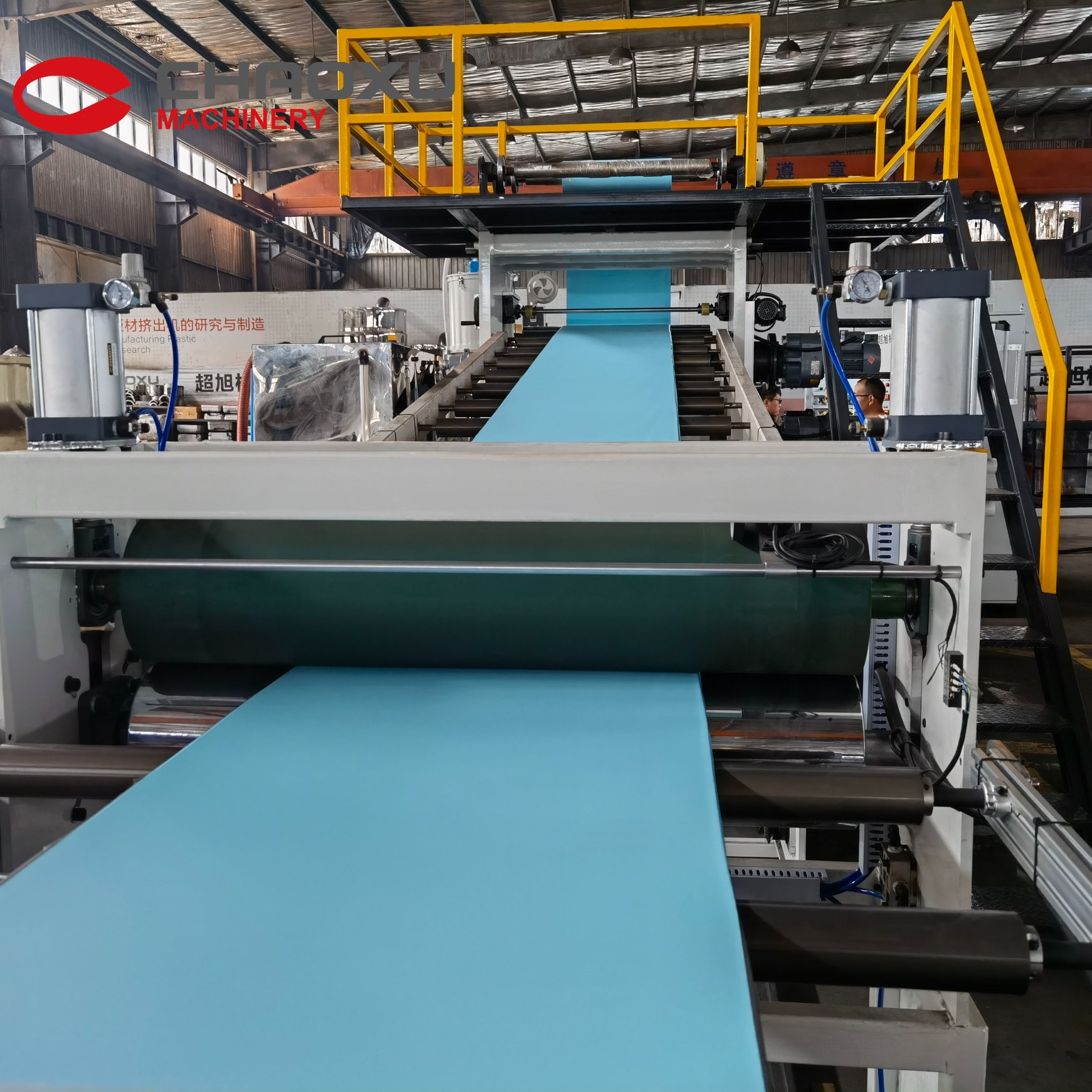

Haul-off Unit

It adopts the design of upper-lower cylinder pressure type,stepless frequency conversion timing, which is suitable for different
extruded speed. Track the length of sheet transfer,it provides strong guarantee for the stable production.

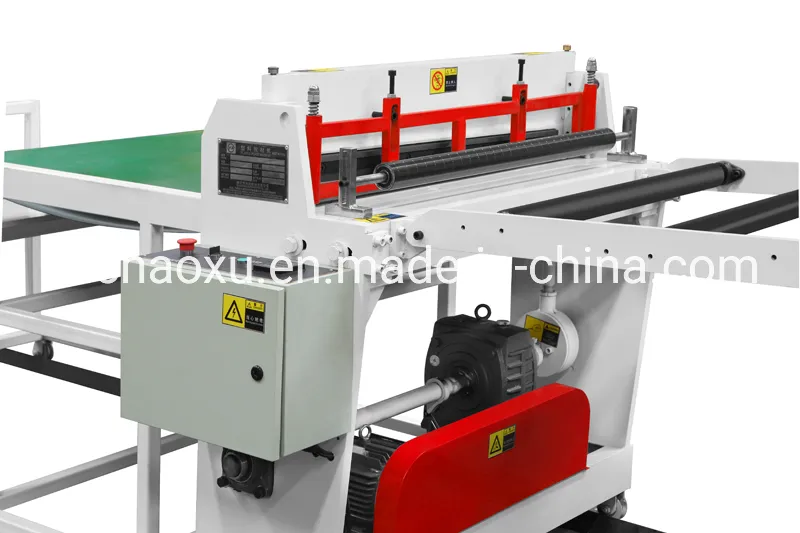

Cutter

The cutting board is adopted motor drive type, which has the function of auto measuring length and cutting It can cut the sheet
length effectively and smoothly.

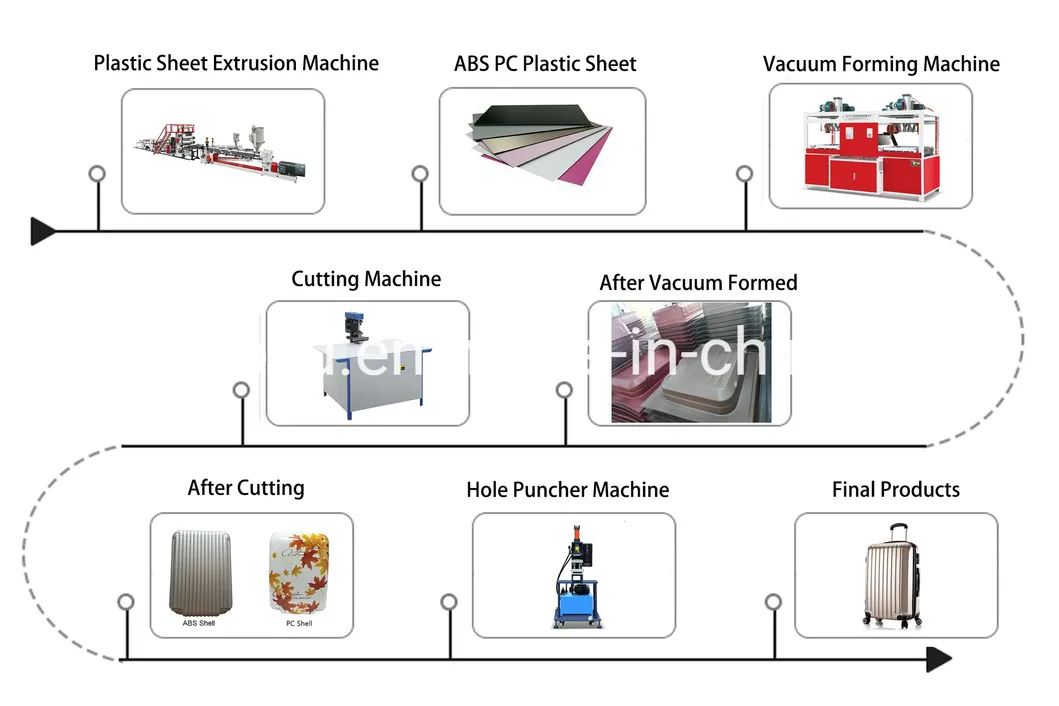

Application:

This production line is capable of continuously produce mono-layer or multi-layer ABS,PC,PP,PE,PS,PMMA,HIPS sheet.

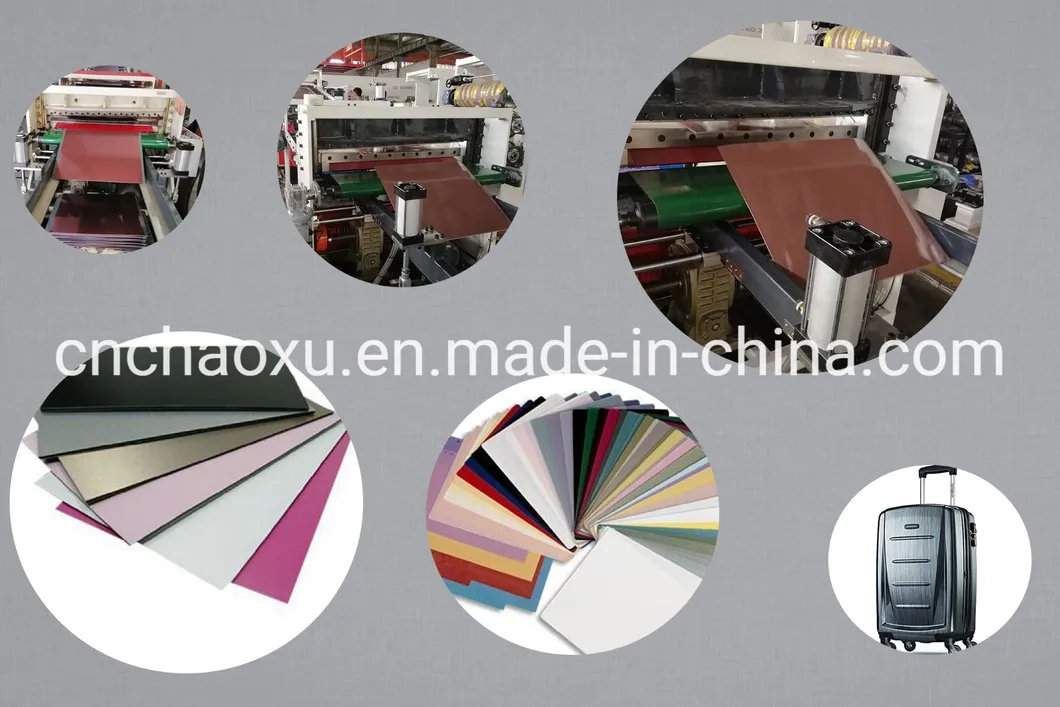

The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement,bathroom,automotive trim etc.

Exhibition:

Company Profile:

Wenzhou Chaoxu Machinery Co.,ltd has specialized in Intelligent Luggage machinery industry since 1992.

We has become a leader brand after two decades'development and management. Our main products are Plastic Sheet Extrusion Machine, Vacuum Forming Machine, Cutting Machine, Punching Machine and so on. Has developed Meltblown Machine with government together in 2020 Has a group of senior technical personnels, researching and achieving lots of national technical patents(such as Cursor positioning device in cutting component, Mold distributor device and Water film temperature machine device for Extrusion Machine, Lifting frame device and Drying oven device for Vacuum Forming Machine ) .

We have passed CE, ISO9001:2015 Certificates and have the whole running system, We corporate with global famous luggage manufactory such as Samsonite, Crown. We have further relationship with our supplier ABB, Schneider, Siemens, Taiwan Weinview Japan ORMON and so on. Our machine widely sold to Western Europe, Middle East, Southeast Asia and other more than 20 countries and regions and has gained good reputation.

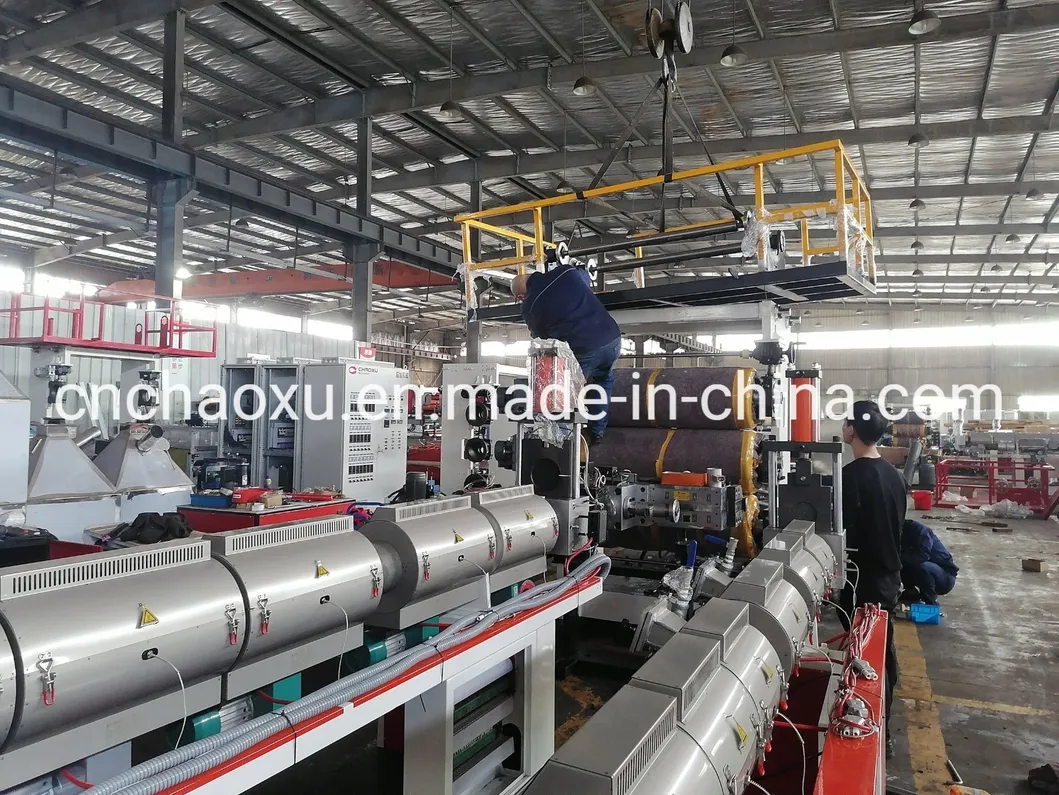

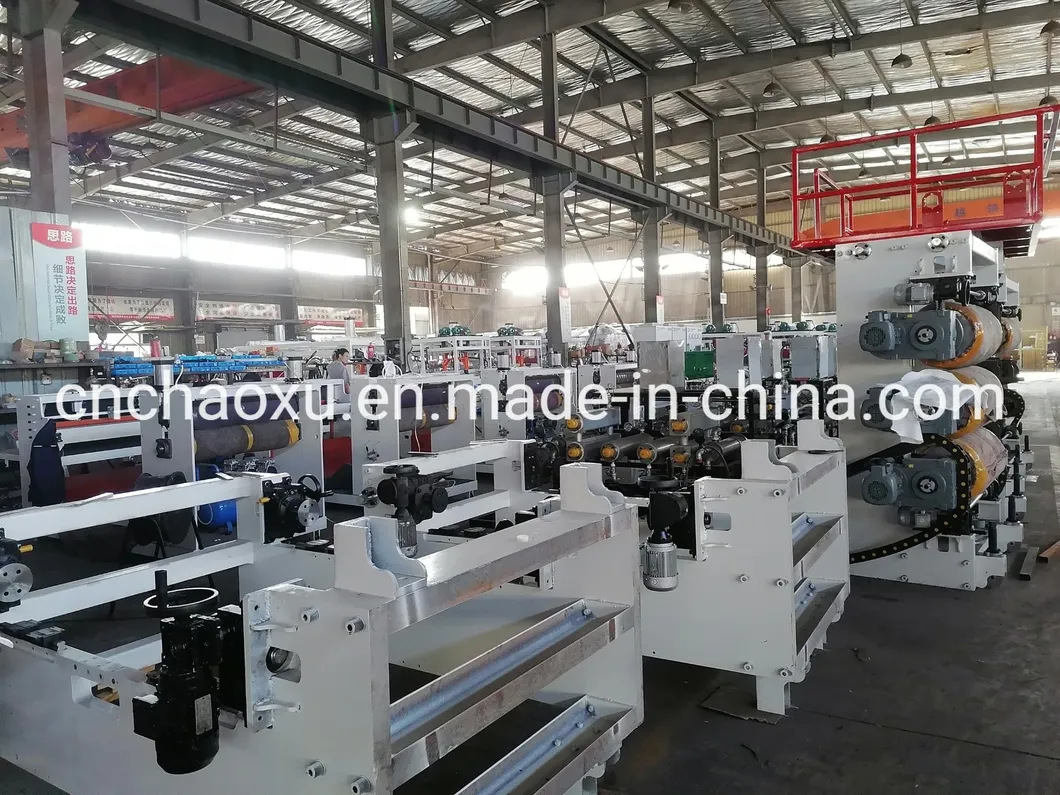

Factory View:

Chaoxu ABS PC Plastic Sheet Extrusion Machine for Hardside and Soft Trolley Travel Bag Luggage Production

Certificate:

FAQ:

Q1:Are you a factory or a trading company?

A1:We are the manufacturer & trading company,extablished in 1992.

Q2:Where is your factory? How can I get there?

A2:Our factory is located in Pingyang County, Wenzhou, Zhejiang Province, China, about one hour from Shanghai. Welcome overseas customers to visit and guide!

Q3:What about your main market?

A3:Our products sell well in 30 provinces
and cities in China and enjoy high reputation in China. At the same time, the products have been widely exported to Western Europe, the Middle East, Southeast Asia and other places, (more than 20 countries and regions, well received by customers)

Q4:How is your factory doing in quality control?

A4:Quality is the most important principle.Strictly test the machine before delivery,
and arrange delivery after 100% confirmation that the machine has no problem. Chaoxu attaches great importance to quality control from the beginning to the end. Our factory has passed ISO and CE certification

Q5:How about after sales service?

A5:If you buy our machine, you can call us and tell us about the problems and any problems about the machine. We will reply you and help you solve the problem within 12 hours. will offer technical support online for whole life
