PE /PP Sheet Extrusion Extruder Machine Sheet Making Machine/Plastic Production Line for Plastic Making Made in China
Product ParametersModel TJ-750Suitable Sheet PP,PSMax. Sheet Width 770mmSheet Thickness Range 0.3-2.0mmScrew Rod Dia. 110 mmScrew L/D ratio 32:1Main Motor Power 75kwMax. Output 240kg/hrPower Supply AC 380V,50Hz, Three-phase , Four-wireDimension L14000xW2600xH1800mmWeight About 8T Product......
Send Inquiry
Product Description
| Model | TJ-750 |
| Suitable Sheet | PP,PS |
| Max. Sheet Width | 770mm |
| Sheet Thickness Range | 0.3-2.0mm |
| Screw Rod Dia. | 110 mm |
| Screw L/D ratio | 32:1 |
| Main Motor Power | 75kw |
| Max. Output | 240kg/hr |
| Power Supply | AC 380V,50Hz, Three-phase , Four-wire |
| Dimension | L14000xW2600xH1800mm |
| Weight | About 8T |
APPLICATION AREA

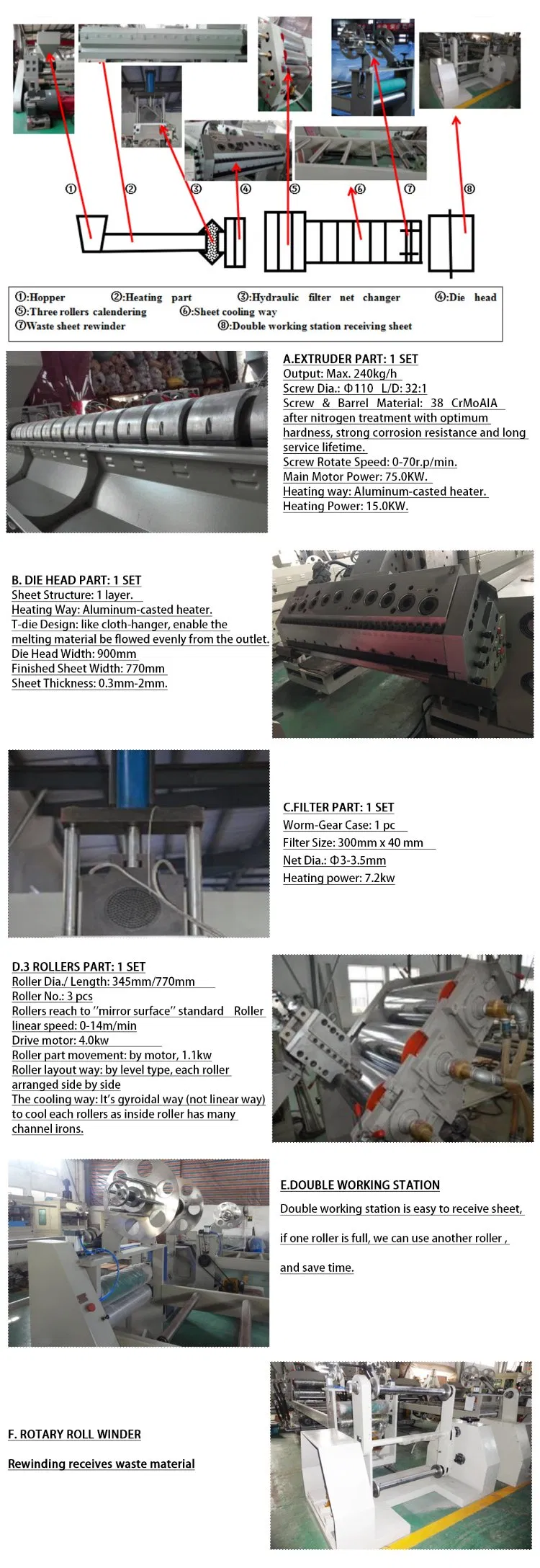

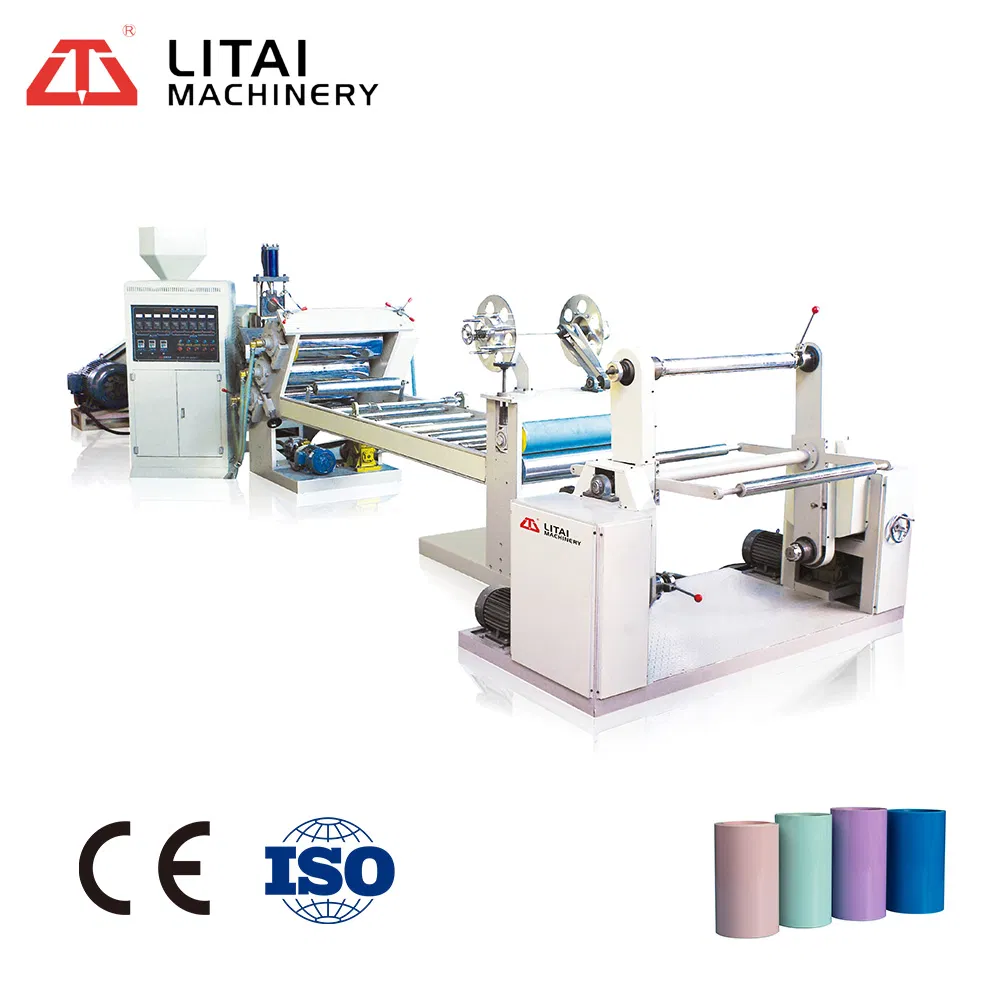

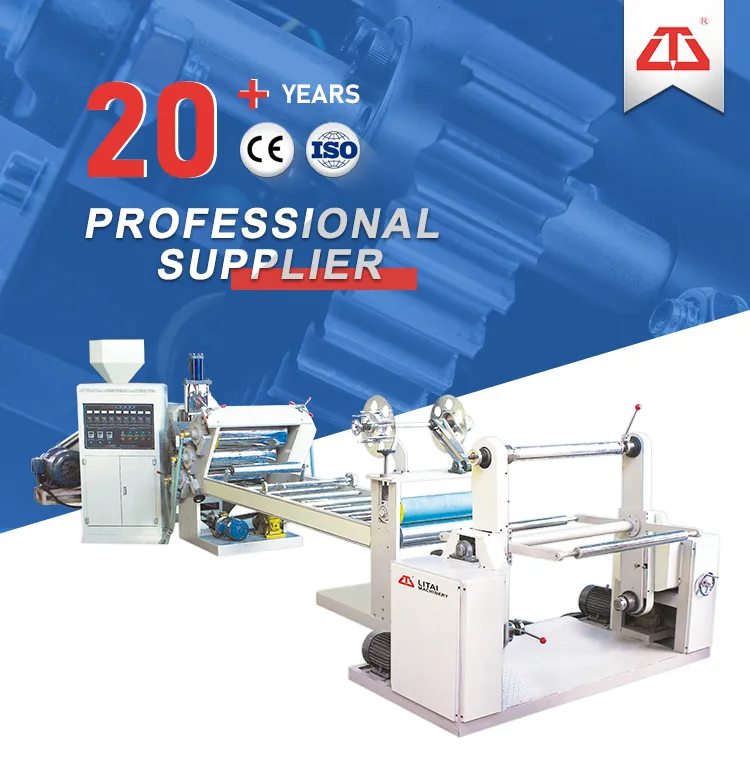

The sheet extruder is composed of extrusion, calendaring, traction and rolling. The main parts
are abrasion resistant, resistant to corrosion, high-temperature resistant by high quality
specially-treated. Low resistance force in die head extruding channel makes sheet thickness
evenly, the internal spiral tank in three rollers ensures an effective cooling and it is easy to
change and install net changer with the hydraulic pressure unit, no need to stop machine.

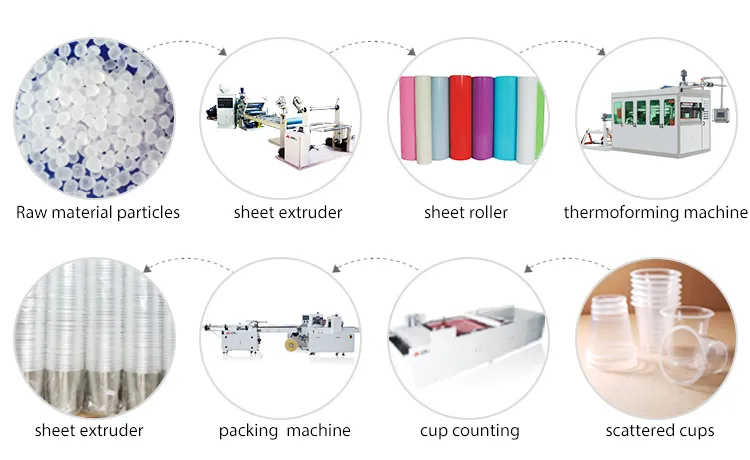

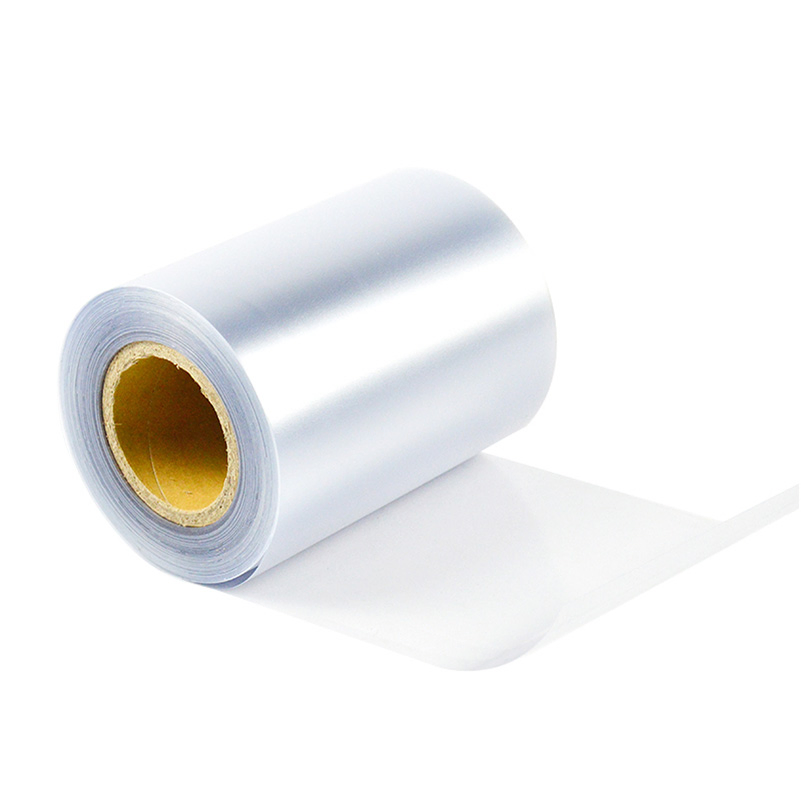

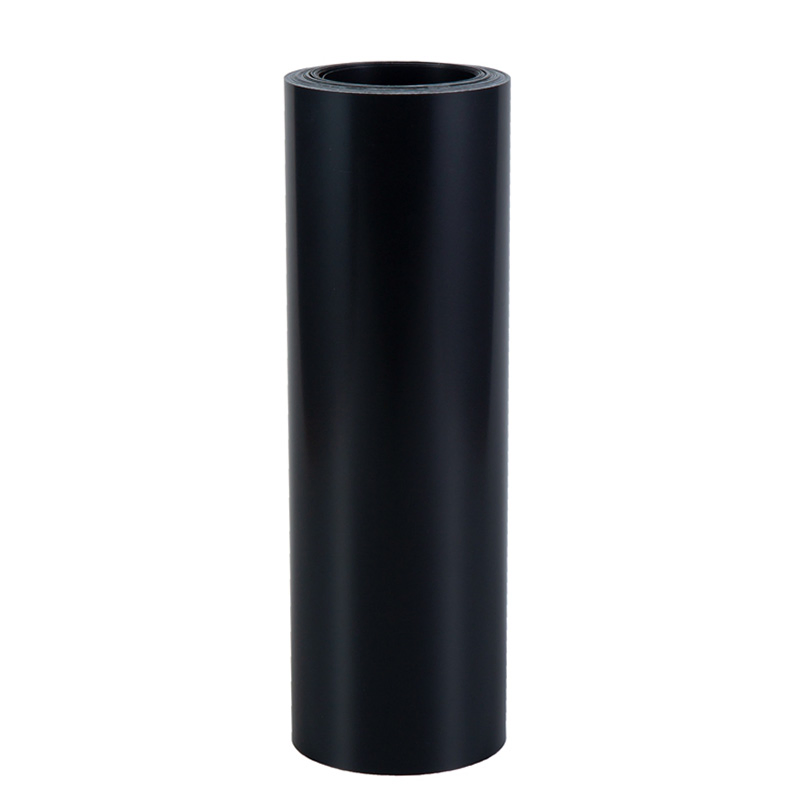

The machine extrudes PP/PS granule to PP/PS sheet with single color, which is used for
producing plastic products by plastic thermoforming machines, like cups, food container,
trays, dishes, bowls, lids, etc.
Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 80 countries since 2001.
Q2: How long is the warranty period?
A2: We have a professional QC department in charge of products' quality.
Q3: How long is the warranty period?
A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.
Q4: How to install the machine?
A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.
