China Made 2021 Processing 3D Woodworking Door Making CNC Router Machine
China Made 2021 Processing 3D Woodworking Door Making CNC Router MachineMain Feature1.3.0KW water cooling Spindle, be famous brand and has a longer working life.2. DSP Control System, not need connect to PC,be easily operate and learned3.Transmission, X Y gear and rack transmission, Z Taiwan TBI bal......
Send Inquiry
Product Description

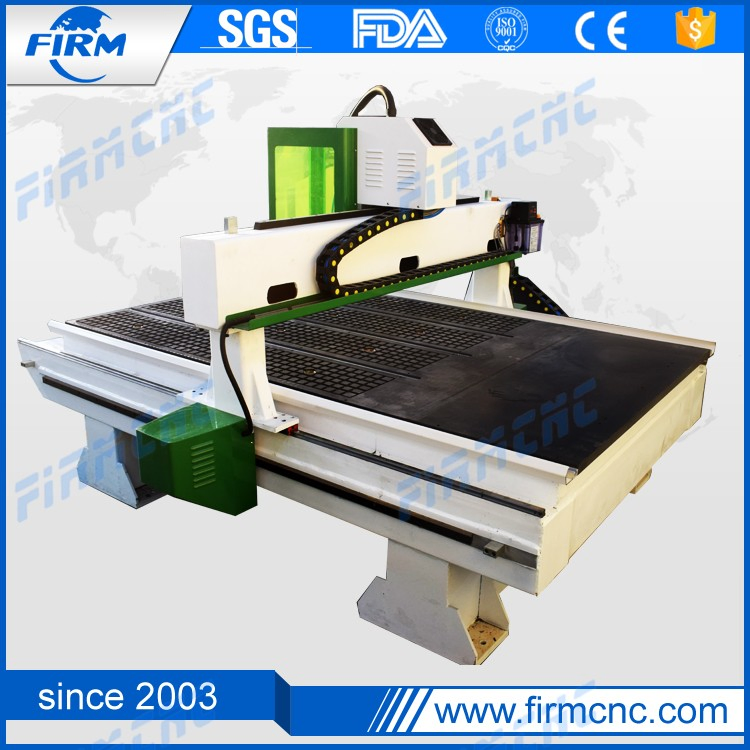

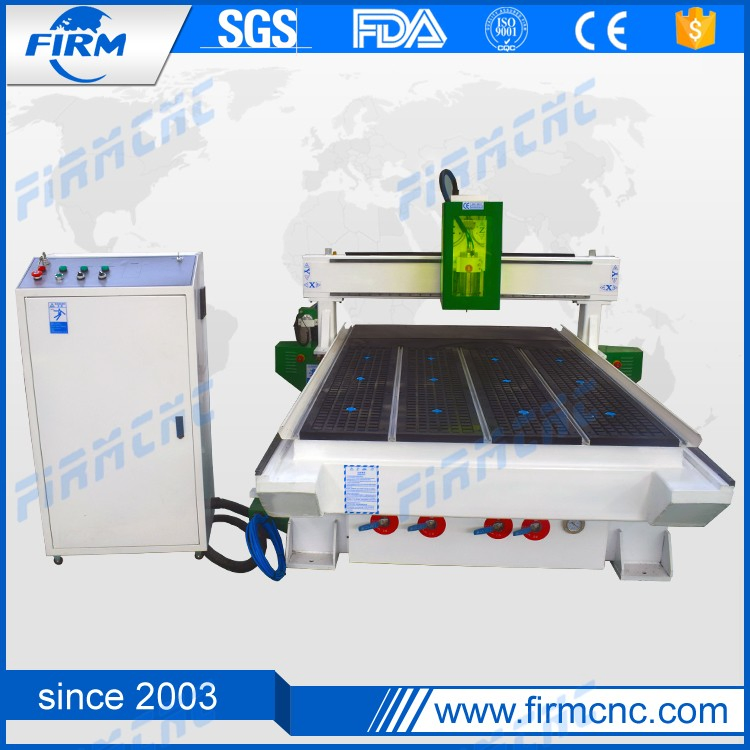

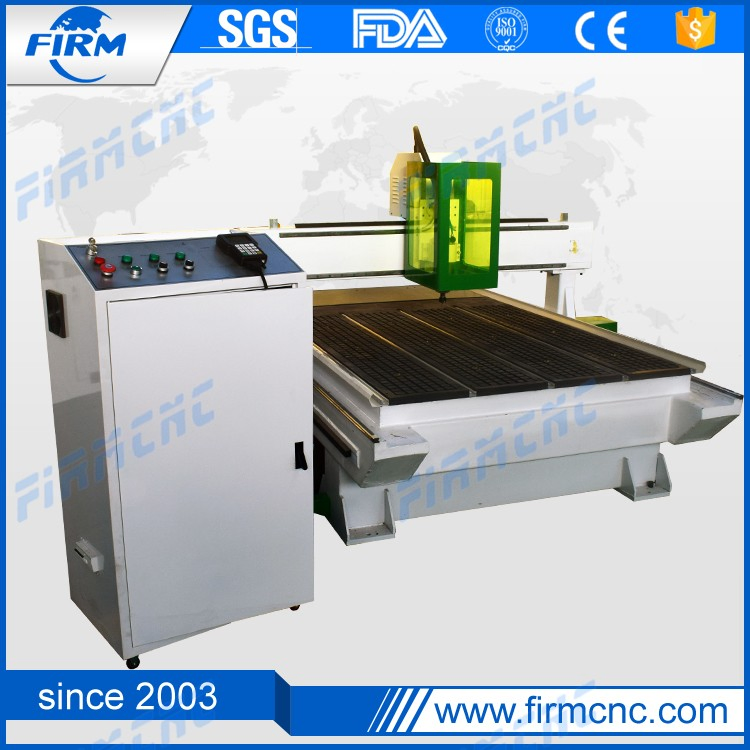

China Made 2021 Processing 3D Woodworking Door Making CNC Router Machine

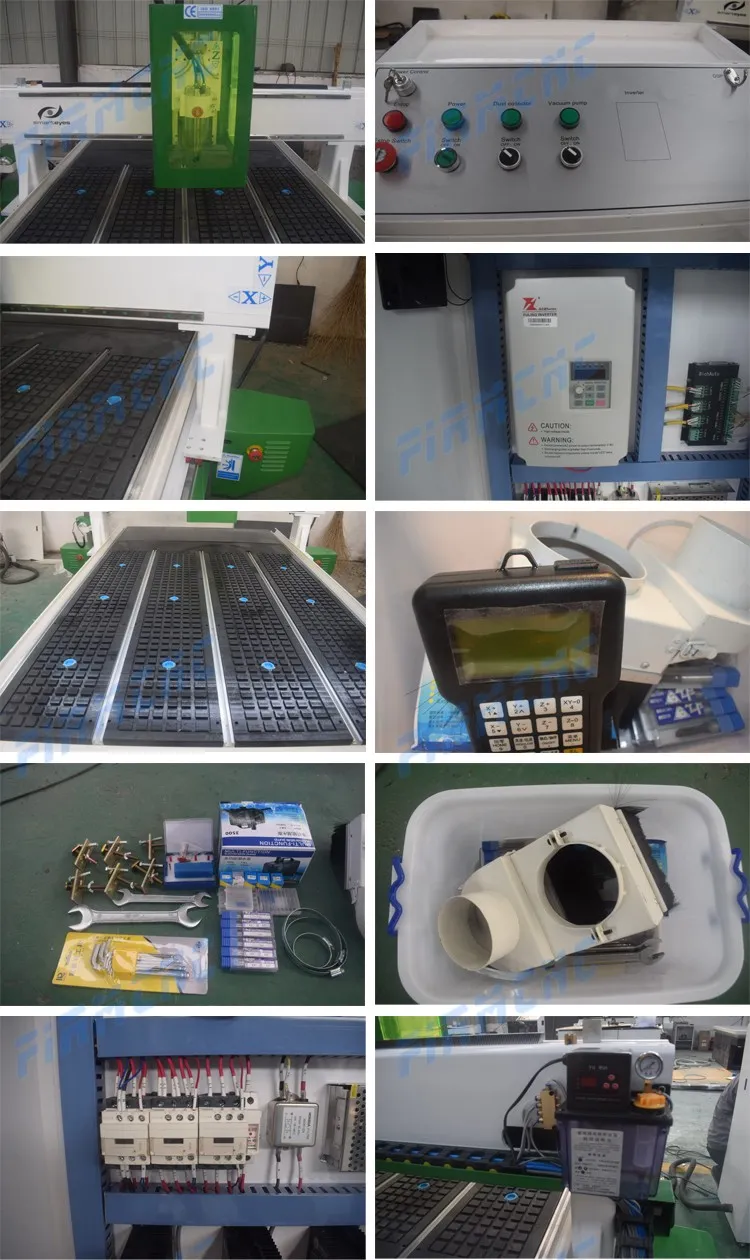

Main Feature
1.3.0KW water cooling Spindle, be famous brand and has a longer working life.
2. DSP Control System, not need connect to PC,be easily operate and learned
3.Transmission, X Y gear and rack transmission, Z Taiwan TBI ball screw transmisson.
4.Guide Rail for X Y Z,TAIWAN HIWIN Square Rail
5.Stepper motor and Leadshine drivers, high positioning accuracy;good reliability;save power consumption
Technical Parameters:
| No. | Description | Parameter |
| 1 | X, Y, Z Working Area | 1300mmx2500mmx200mm |
| 2 | Table Size | 1450mm×2940mm |
| 3 | X, Y, Z Traveling Positioning Accuracy | ±0.02/300mm |
| 4 | X, Y, Z Repositioning Accuracy | ±0.02mm |
| 5 | Table Surface | Vacuum and T-slot table |
| 6 | Frame | Welded steel tube structure |
| 7 | Inverter: | Chinese Fuling Inverter/Taiwan Delta Inverter |
| 8 | Spindle | CS water colling spindle/ Italy HSD air cooling spindle |
| 9 | Limit switch | Japan Omron limit switch |
| 10 | Oil LubricationSystem | Manual |
| 11 | X, Y Structure | Rack and Pinion Drive, Hiwin Square Rail |
| 12 | Z Structure | Hiwin Square Rail and Ball Screw |
| 13 | Max. Power Consumption | 5~7KW |
| 14 | Max. Rapid Travel Rate | 33000mm/min |
| 15 | Max. Working Speed | 25000mm/min |
| 16 | Spindle Power | 3.5/4.5/5.5/6 KW |
| 17 | Spindle Speed | 0-24000RPM |
| 18 | Motors | 450B stepper/Yaskawa servo |
| 19 | Working Voltage | 380V/220V |
| 20 | Command Language | G Code |
| 21 | Operating System | NK105 DSP |
| 22 | Computer Interface | USB |
| 24 | Collet | ER25 |
| 25 | X, Y Resolution | <0.03mm |
| 26 | Software Compatibility | Artcam Software (Option: Type3 Software) |
| 27 | Running Environment Temperature | 0 - 45 Centigrade |
| 28 | Relative Humidity | 30% - 75% |
| 29 | Packing Size | 3150mmX2100mmX1900mm |
| 30 | N. W. | 1500KG |
| 31 | G. W. | 1800KG |
| 32 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System |

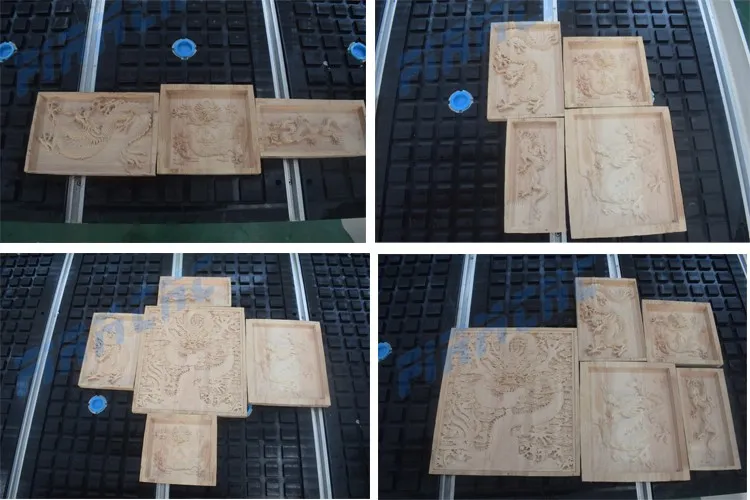

Application Industry and Materials:
#Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
#The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
#Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
#Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.

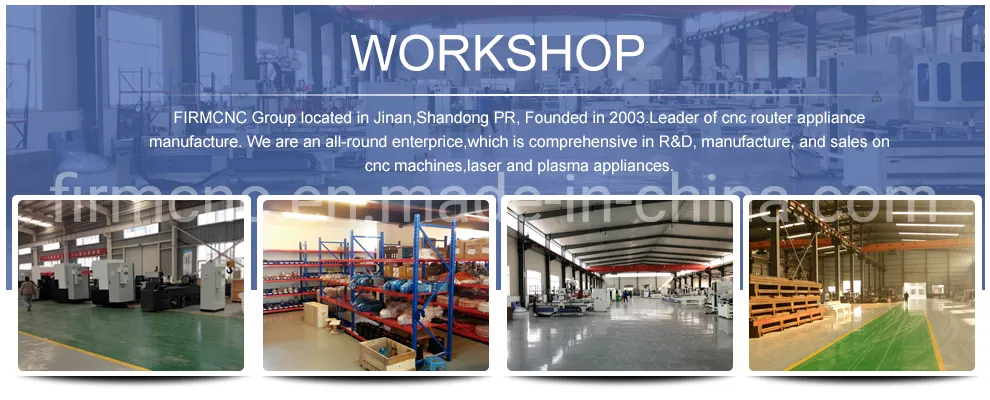

Our Company:
Jinan FIRM CNC Equipment Co., Ltd producing CNC router is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, wood CNC router, stone CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate. The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision CNC routers and CNC machines.
Packing & shipment:
Save space as much as possible for container loading.
Inside: Water-proof Plastic Film Package With Foam Protection
Outside: Solid Seaworthy Wood Box Package
Below: Steel Tube
Our service:
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here;
After sale:
We would provide English Version working manual.
If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
Machine warranty is two years. So if your machine has any unintentional damages, we would provide parts for free.
If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
Our professional after sale service team which are selected by very strict examinations, would pay their 100% time and energy to solve your problems!
FAQ
1.Can you recommend a cnc router machine to me ?
Yes, In order to give you a suitable laser machine,pls tell me your working area ? processing materials ? engraving or cutting ?
2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.
3.Does your company can processing my samples?
Yes, we can
4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts.
usually for all parts can perfect working one year without any broken .
6.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at yoru factory, you only need to pay the round air tickets cost and accommodation for technician.
