Product Description

Ck0660 CK6130 CK6432 CK6150 Mini CNC Lathe For Sell Small CNC Machine Tool CNC Turning Center

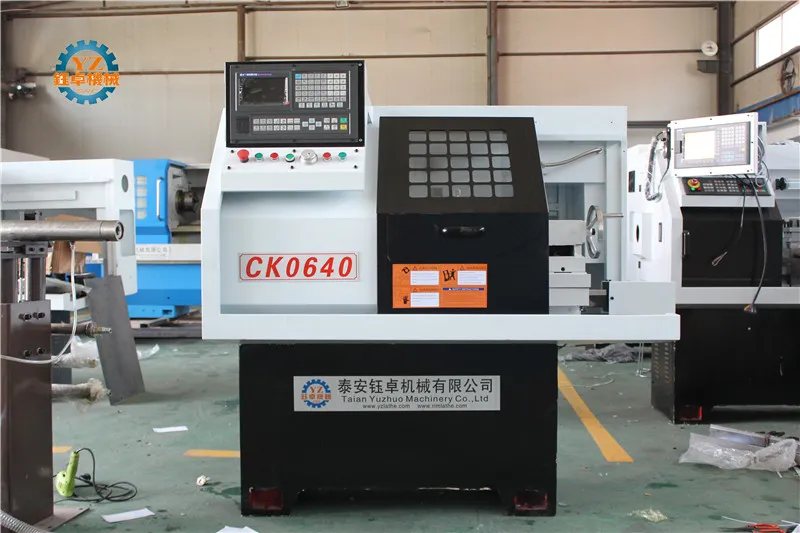

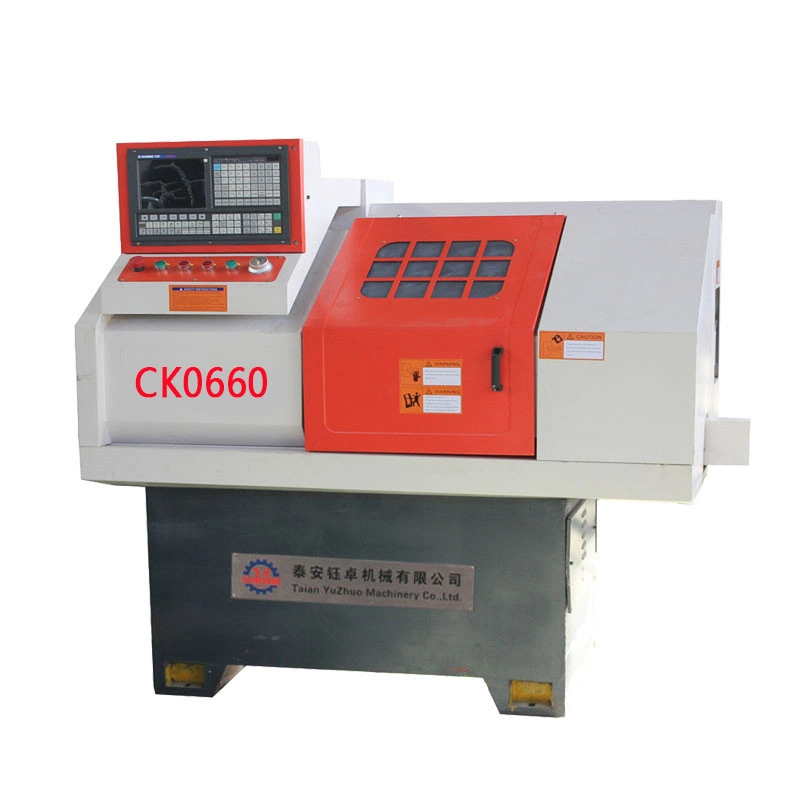

Item	CK0640	CK0660	CK0680
Max. swing dia. over bed	Φ260mm	Φ260mm	Φ260mm
Max. swing dia. over cross slide	Φ130mm	Φ100mm	Φ130mm
Max. workpiece length	Collet 200mm Chuck 120mm	Collet 200mm Chuck 120mm	Collet 200mm Chuck 120mm
Diameter of spindle bore	Φ48mm	Φ70mm	Φ90mm
Drawn pipe diameter	Φ42mm	Φ60mm	Φ80mm
X-axis fast moving speed	6000mm/min	6000mm/min	6000mm/min
Z- axis fast moving speed	8000 mm/min	8000 mm/min	8000 mm/min
X-axis feed rates	1~2000mm/min	1~2000mm/min	1~2000mm/min
Z- axis feed rates	1~1800mm/min	1~1800mm/min	1~1800mm/min
Range of spindle speed	50~2500rpm	50~2500rpm	50~2500rpm
Thread machining scope (metric system)	0.25~12mm	0.25~12mm	0.25~12mm
Thread machining scope (British system)	28~3 1/2	28~3 1/2	28~3 1/2
Stations of tool carrier	gang-typetool carrier	gang-typetool carrier	gang-typetool carrier
Main motor	3KW	4KW	4KW
Dimension	1550×920×1450mm	1650x1000x1600mm	1650x1000x1600mm
Weight	850KG	950KG	1000KG

Standard configuration:

1) System:GSK928TD-L, servo motor and drive.

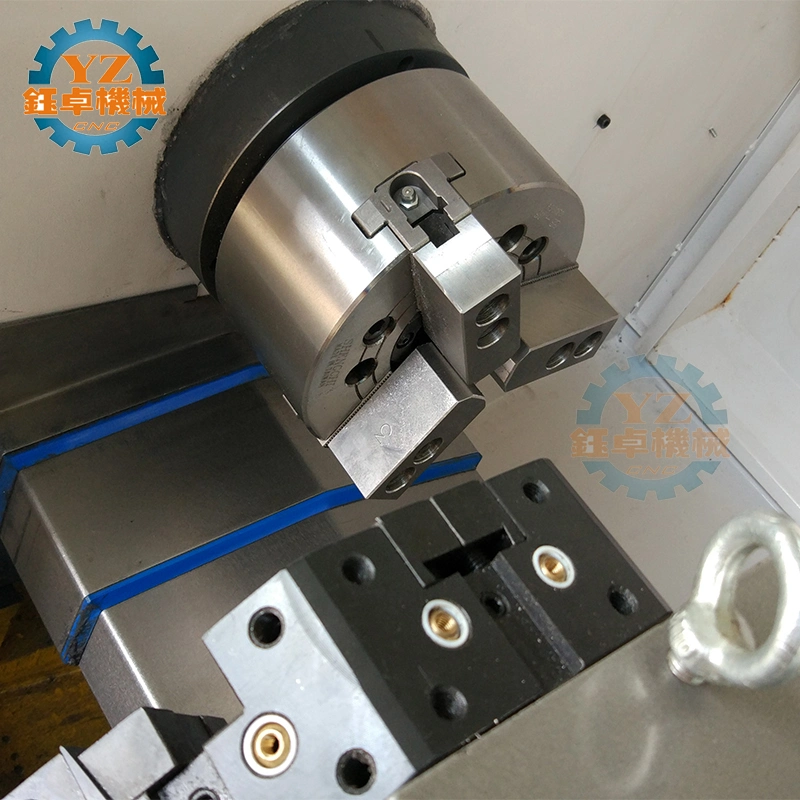

2) Pneumatic collets.
3) Gang Type Tool.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

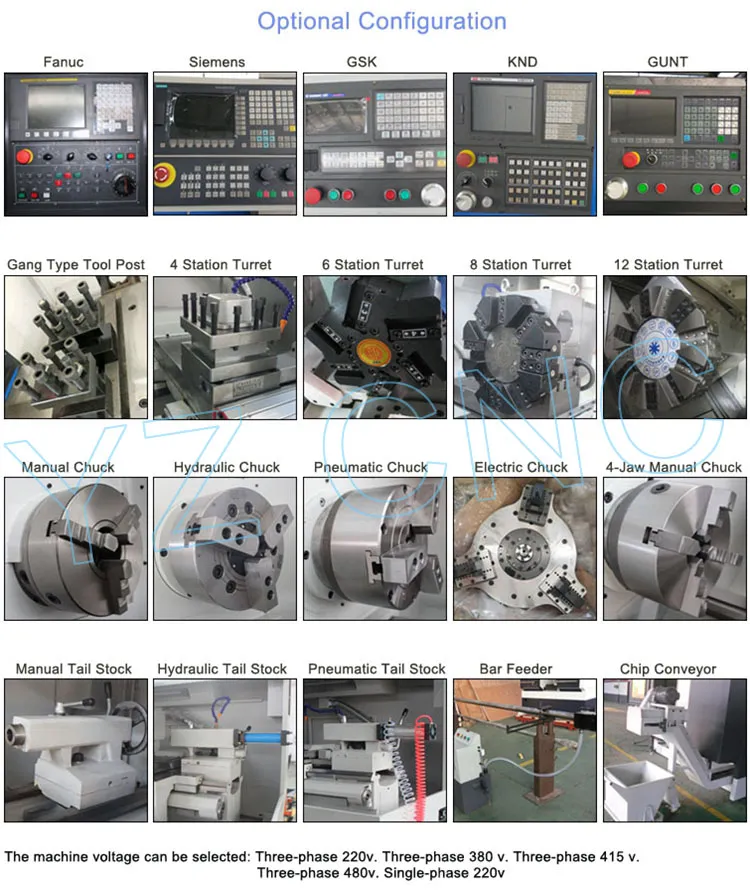

Optional configuration:

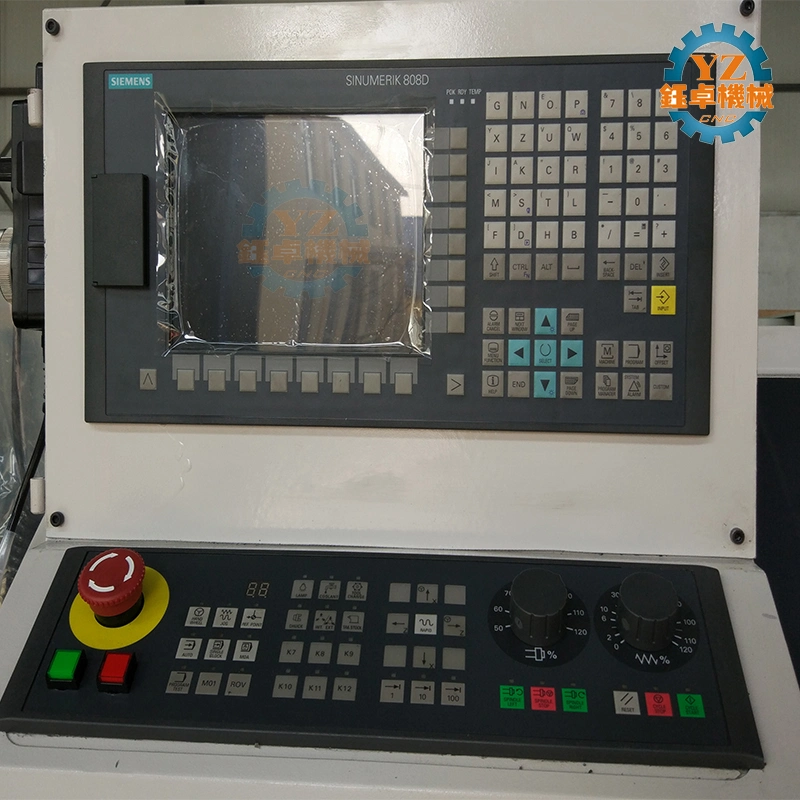

1) CNC system: Siemens, Fanuc, KND, etc.
2) Hydraulic chuck, pneumatic chuck .
3) Hydraulic tailstock, pneumatic tailstock.
4) 4/6/8station electric tool post.

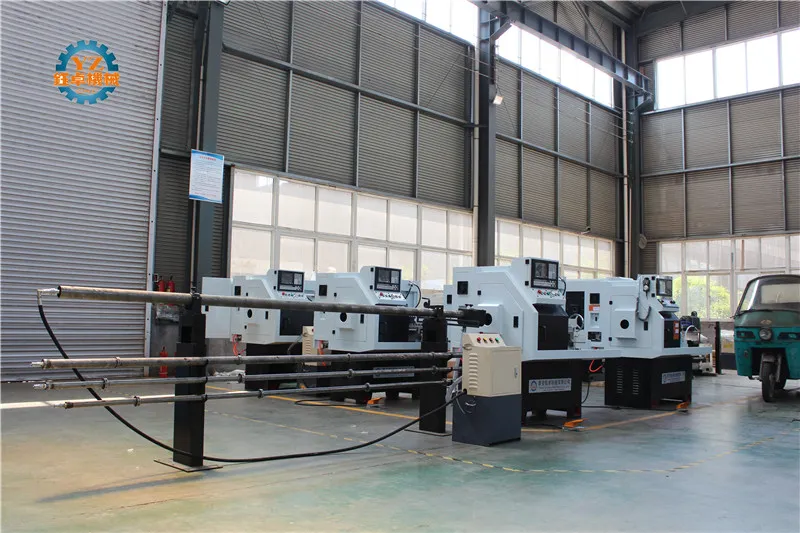

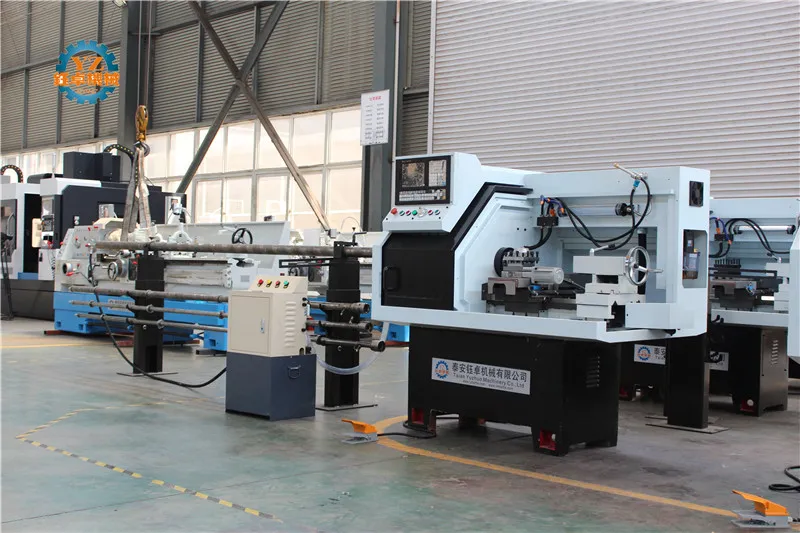

5)Automatic bar feeder.
