CNC Plasma Cutter with Ce Certificate LG60

Product Description

Features of Plasma Cutting Machine
CNC Plasma Cutter with Ce Certificate LG60

Advantages

1. Wide cutting range, can cut all kind of sheet metal;
2. Cutting speed up to 10m/min, high efficiency.
3. Cutting accuracy is higher than flame cutting, underwater cutting without distortion, precision plasma cutting with more accuracy.
4. Underwater cutting of plasma cutting machine can eliminate the noise, dust, harmful gases and arc generated by cutting, effectively improve the workplace environment.
5. With the high-power plasma cutting technology matures, cutting thickness can reach more than 150mm, makes the CNC plasma cutting machine range has been broadened as well.

Disadvantage

1. It's difficult to cut steel with thickness more than 20mm, require high plasma power, cost of high plasma power is high as well. (Our high plasma power-- LG400)

Link to LG400:
http://chdcutting.en.made-in-china.com/product/eXtnvYKMSwVF/China-Portable-CNC-Plasma-Cutting-Machine-LG-400.html

LG Plasma Cutting Machine Series

Features of our LG Plasma Cutting Machine Series
1	Available With CNC cutting system to fit the application
2	Small volume,light weight,energy saving,60%(100%)high duty cycle
3	The cutting current can be preset accurately
4	Fast high frequency arc starting enable the reduction of interference to CNC system
5	With stable plasma arc and high speed enable smooth incision and little deformation
6	Gas cut-off delay function effectively protects the torch

ITEM	LG-60	LG-100	LG-130	LG-200	LG-400
Input Voltages	380V 50/60 Hz
Rated Input Current(KVA)	9.7kw	14.5	21.5	38	100
Output Current(A)	30-60	30-100	30-130	30-200	30-400
Duty Cycle	60%	60%	60%	100%	60%
Max. Cutting Thickness(mm)	20	30	35	65	90
Optimal Cutting Thickness(mm)	0.3-10	0.3-22	0.3-25	1-45	1-55
Gas Pressure(Mpa)	0.3-0.5	0.4-0.6			0.45-0.6
Cutting Torch Cooling Mode	Air Cooling			Air Cooling,Water Cooling
Dimension(HWL,mm)	510280610	600325740	710380790	800360880	1260540830
Weight(kg)	35	53	75	82	170

FAQ:
1. Q: Certificate

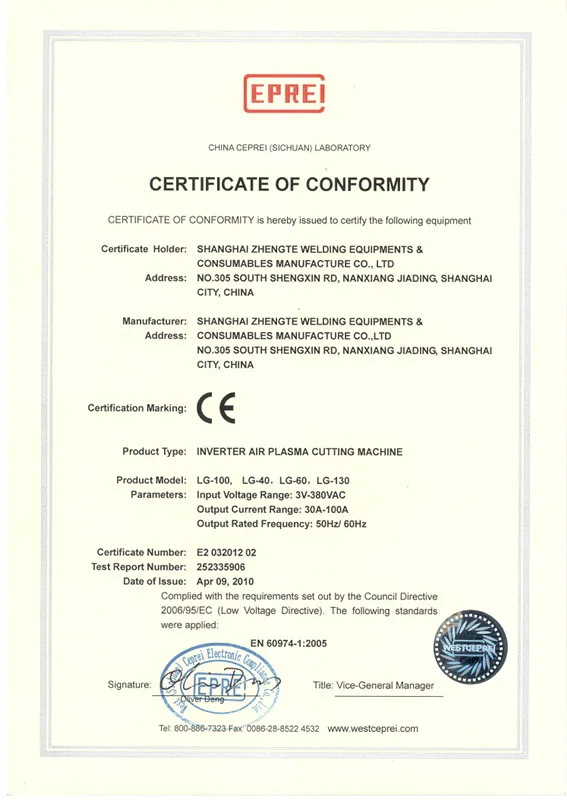

A: ISO, CE, SGS, CCC
2. Q: Cutting Thickness Range ?
A: 0.3-90 MM
3. Q:Optimal Cutting Thickness Range?
A: 0.3-55 MM
4. Q:Cutting material?
A: All kind of sheet metal
5. Q:Lead Time, Delivery Time
A: 7 working days
6. Q:Warranty
A: 1 Year
7. Q: After service
A: 24 Hours Online Service, Free spare parts for breakdown machine in warranty service
8. Q:Portable or not?
A: Yes
9. Q: Precision
A: ±0.5mm

Or you can tell me the following info, we'll suggest you the very item you need.
1. Material you'll cut.
2. Thickness of Material.
3. Cutting range (Length, width) you required.
4. Handheld torch or automated machine you required?

CHD WELDING

CHD was founded in 1989, is a High-Tech Enterprise which integrates R&D, Production, Sales and Service of cutting machine.

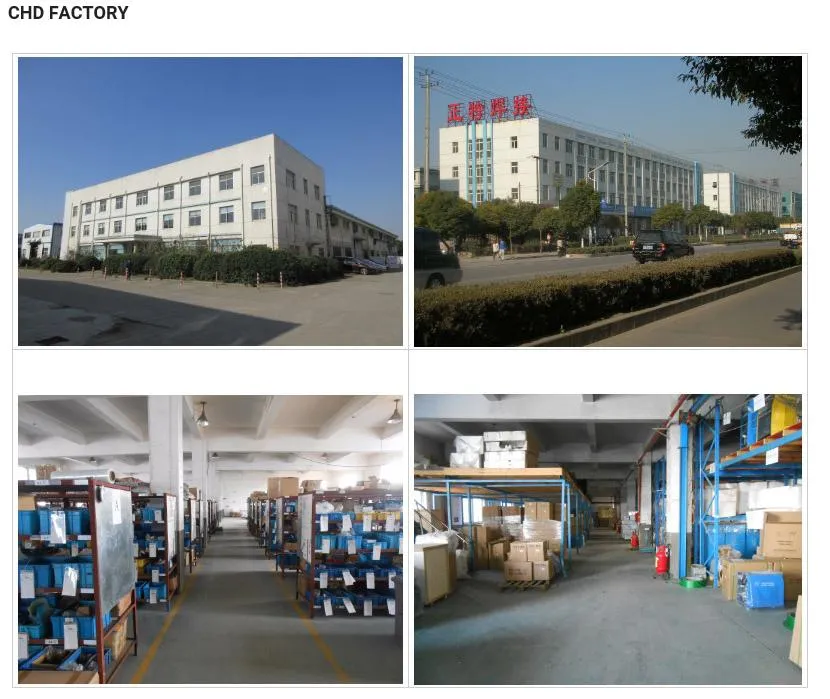

CHD, as one of the largest metal cutting machine manufacturers, headquartered in Shanghai, China. With 3 production bases, totally plant area of more than 53,000 square meters , respectively located in Shanghai, Chengdu and Wenzhou.
CHD focus on quality control, has passed many certification audits including ISO9000, SGS, CE, CCC, etc., was one of the world's largest manufacturer's partners of steel plate cutting equipment. CHD cutting machines have already been exported to more than 100 countries in the past 20 years.

Advantages of CHD
1. Large Production Capacity.
2. Full line of Products. Cutting Machine, Plasma Power, Welding Machine, Beveling Machine, Circular Cooling Water Tanks, Consumables.
3. Honesty. All parameters (cutting thickness & precision) are actual operation parameters without overstate.
4. Good after service, not one-off business.
5. One year guarantee. Free spare parts service on base of order amount. Engineer oversea service.
6. Adjustable Short Lead Time.
