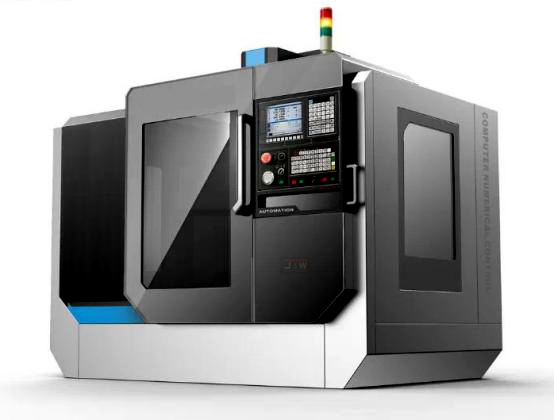

High Precision CNC Vertical Machining Center (VMC850T)
Machine standard configurationTaiwan umbrella tools magazine,capacity 16 pcsTaiwan Posa spindle ,max speed is 8000RPMTaiwan hiwin ball screw and linear guideway for 3-axisGermany FAG bearingSchneider electrical componentsSpecificationTableAreaUnit1000×500 mmT-slotmm5-18H8 Max. loadkg500 Tr......
Send Inquiry
Product Description
Machine standard configuration
Packing list
- Taiwan umbrella tools magazine,capacity 16 pcs
- Taiwan Posa spindle ,max speed is 8000RPM
- Taiwan hiwin ball screw and linear guideway for 3-axis
- Germany FAG bearing
- Schneider electrical components
| Table | Area | Unit | 1000×500 mm |
| T-slot | mm | 5-18H8 | |
| Max. load | kg | 500 | |
| Travel | Moving range X, Y, Z | mm | 850×500×500 |
| Spindle nose to table surface | mm | 150~650 | |
| Spindle center to column guideway | mm | 560 | |
| Feed | Rapid feed speed X, Y, Z | m/min | 30 |
| Feed speed X, Y, Z | mm/min | 10~10000 | |
| Spindle | Taper | BT40 | |
| Speed | r/min | (AC servo) 40~6000 | |
| Power | kW | AC servo 7.5 | |
| Tool magazine | Capacity | pieces | 16 ( special order 24) |
| Max. tool weight | kg | 8 | |
| Max. tool diameter | mm | Ф130×300 | |
| Accuracy | Positioning accuracy | mm | ±0.015 |
| Re-positioning accuracy | mm | ±0.0075 |
Packing list
| no. | name | specification | numbers | marks |
| 1 | Main machine | VM850 | 1set | |
| 2 | Pull stud | P40T-1 | 1piece | MAS 403 |
| 3 | Inner hexagon spanner | 5,6,8,10 | Each 1 piece | |
| 4 | Wrench | S17~19,S22~24 | Each 1pece | |
| 5 | Adjusting sizing block | M16×450 | 8set | |
| 6 | Hex. nut | M16 | 8set | |
| 7 | Washer | 16 | 8set | |
| 8 | Control system | 1set | With the machine | |
| 9 | instruction | 1set | ||
| 10 | certification | 1 | ||
| 11 | Packing list | 1 |
