High Speed Morse Taper Hsk100A Mta5 200 Collet Chuck for CNC Machine
1,Material:20CrMnTi2,Production standard:DIN698933,dynamic balance :G6.3 15000RPM G2.5 30000RPM4,precision:≤0.005mm5,Hardness:HRC56-60 ,carbon depth >0.8mm6,shank:HSK short cone shank type A7,Usage:HSK high speed collets chuck holders are applied for a variety of processing, including engr......
Send Inquiry
Product Description
1,Material:20CrMnTi
2,Production standard:DIN69893
3,dynamic balance :G6.3 15000RPM G2.5 30000RPM
4,precision:≤0.005mm
5,Hardness:HRC56-60 ,carbon depth >0.8mm
6,shank:HSK short cone shank type A
7,Usage:HSK high speed collets chuck holders are applied for a variety of processing, including engraving drilling, milling ,tapping & grinding and so on.
HSK shank MTA morse taper mill tools is our new products. they have been exported many times such as Germany Korea and so on.their quality and precision is very high.the clients are satisfied with them.
Technical specification
Our Advantage
1,Manufacture Factory
We are the industry and trade integration company .we have our own manufacture factory.
2,Quality Control:
During production process ,every part be checked .every product will be checked before the delivery.
the overall accuracy be checked by precision detector.the dynamic balance be checked by dynamic balance HAIMER detector.
3,Professional Sales Team
Our sales team have the professional export experience,can contact with the customer frankly.
4,Delivery in time
as we have our own manufacture factory ,the order delivery time can be control.
5,Good after Sales Service
Our company provides good after sales service as per customers requirement.
Our Services
I Fast reply
II Favourable price
III High quality products
IV Fast delivery
VI Good after-sales service
Packaging & Shipping
Contact information
More information to company, copy the official website link er-collet.en.made-in-china.com for reference.
2,Production standard:DIN69893
3,dynamic balance :G6.3 15000RPM G2.5 30000RPM
4,precision:≤0.005mm
5,Hardness:HRC56-60 ,carbon depth >0.8mm
6,shank:HSK short cone shank type A
7,Usage:HSK high speed collets chuck holders are applied for a variety of processing, including engraving drilling, milling ,tapping & grinding and so on.
HSK shank MTA morse taper mill tools is our new products. they have been exported many times such as Germany Korea and so on.their quality and precision is very high.the clients are satisfied with them.

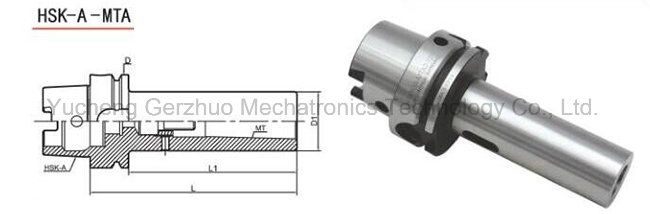

Technical specification
| Model | L | L1 | D | D1 | MT |
| HSK63A-MTA1-100 | 100 | 74 | Φ63 | Φ25 | 1 |
| HSK63A-MTA2-120 | 120 | 94 | Φ63 | Φ32 | 2 |
| HSK63A-MTA3-140 | 140 | 114 | Φ63 | Φ40 | 3 |
| HSK63A-MTA4-160 | 160 | 134 | Φ63 | Φ48 | 4 |
| HSK100A-MTA1-110 | 110 | 81 | Φ100 | Φ25 | 1 |
| HSK100A-MTA2-120 | 120 | 91 | Φ100 | Φ32 | 2 |
| HSK100A-MTA3-150 | 150 | 121 | Φ100 | Φ40 | 3 |
| HSK100A-MTA4-170 | 170 | 141 | Φ100 | Φ48 | 4 |
| HSK100A-MTA5-200 | 200 | 171 | Φ100 | Φ63 | 5 |
Our Advantage
1,Manufacture Factory
We are the industry and trade integration company .we have our own manufacture factory.
2,Quality Control:
During production process ,every part be checked .every product will be checked before the delivery.
the overall accuracy be checked by precision detector.the dynamic balance be checked by dynamic balance HAIMER detector.
3,Professional Sales Team
Our sales team have the professional export experience,can contact with the customer frankly.
4,Delivery in time
as we have our own manufacture factory ,the order delivery time can be control.
5,Good after Sales Service
Our company provides good after sales service as per customers requirement.
Our Services
I Fast reply
II Favourable price
III High quality products
IV Fast delivery
VI Good after-sales service
Packaging & Shipping
Contact information
More information to company, copy the official website link er-collet.en.made-in-china.com for reference.
