Linear Guideway CNC Lathe Machine Tool Tck46A Vmc850 Vmc1160
CNC Machine ToolsVertical Machining CenterVMC1160Technical Parameter: SpecficationUnitVMC1160X/Y/Z travelmm1100/600/600Spindle nose to worktablemm120-720Spindle Powerkw2021/11/15Spindle Speedrpm10000Spindle Taper BT40-150Positioning Accuarcymm±0.003Repeat Positioning Accuracymm±......
Send Inquiry
Product Description
CNC Machine Tools
Vertical Machining Center
VMC1160
Technical Parameter:
Terms and Conditions:
Basic Description:
☆Efficient, reliable automatic tool changer
2.Tool storage capacity of 16 BT40 or 24 forms of cutting tools, a larger tool weight of 8kg
3.Tool changing system maintainability good.
☆High reliability of its components
Configuration of machine tools in Japan, the United States and other well-known manufacturers of brand - name accessories to ensure overall quality.
☆Mechatronics Design
Full exchange of digital servo control performance, easy maintenance. CNC system stable and reliable, easy to operate, powerful, fast response, rich interface, with self - diagnosis function, can realize the coordinates precision double compensation.
☆Design of the larger least satisfy the customer
numerical control system can be configured according to user requirement to undertake turnkey projects.
Standard Accessories:
Fanuc 0i TF control system
Mitsubishi and Siemens control system
Taiwan Spindle: 10000rpm
X/Y/Z axis: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24tools hat type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication

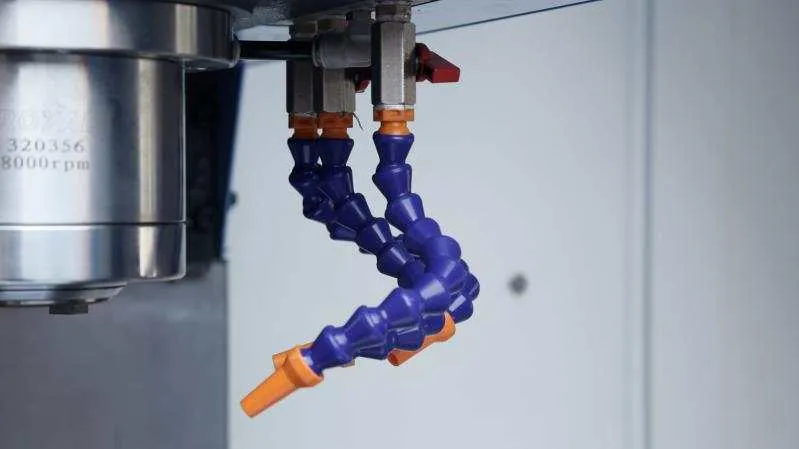

Coolant system
Work lamp
Tri-color indication lamp
Heat exchanger in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Machine Installation Environment:
★Power Supply: AC 3Ф 380V +10%~-15% 50HZ±1Hz
★Source : Pressure0.5~0.7mpa , Flow 250L/min
★Relative Humidity: ≤80%
★Ambient Temperature: 0°~ 42°C
Optional Accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
24 tools disc type
Nitrogen balance cylinder
Air conditioner for electricity cabinet
3rd Axis, 4th Axis or 5th Axis

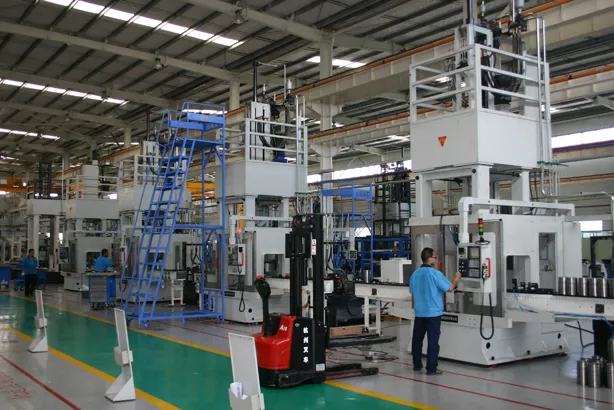

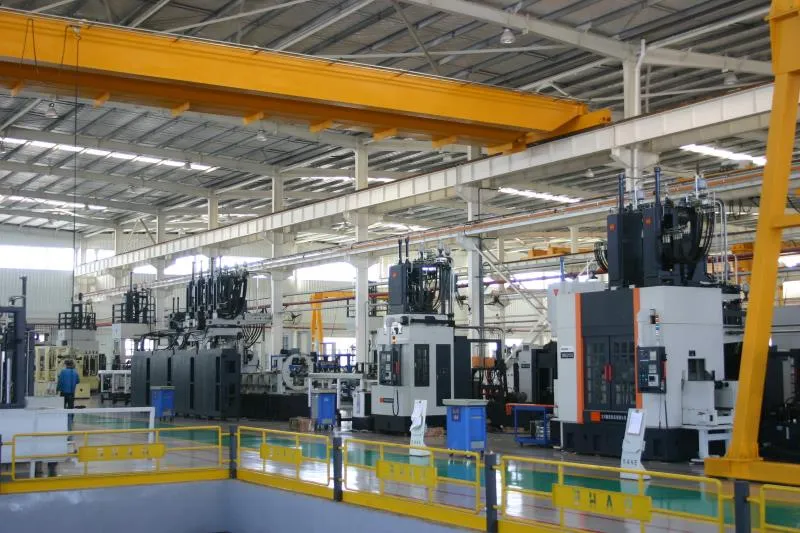

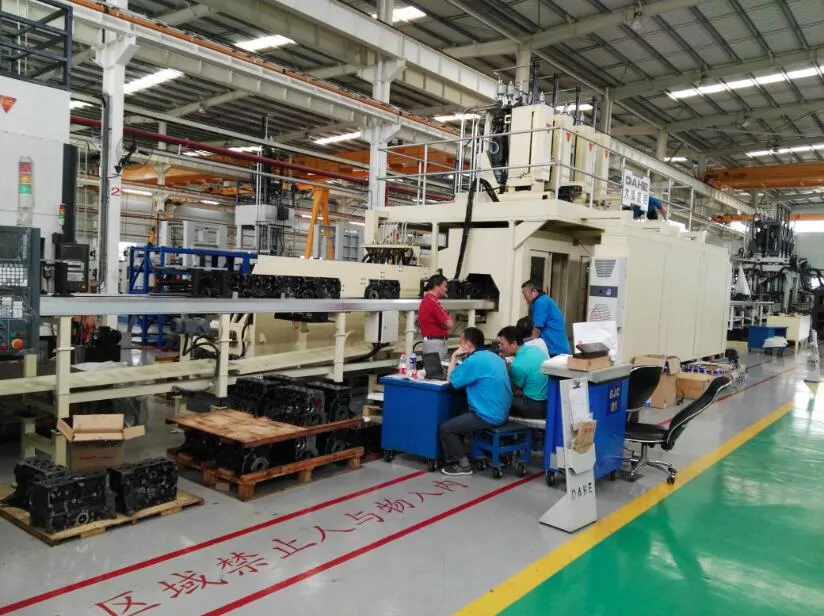

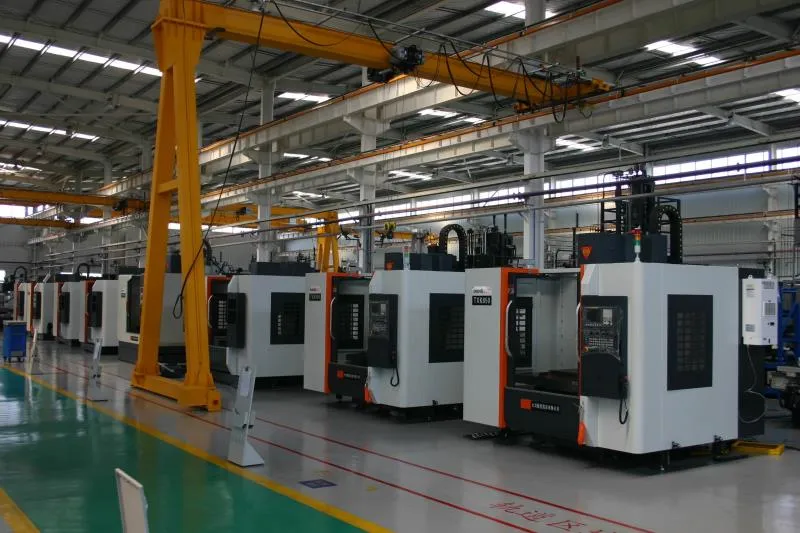

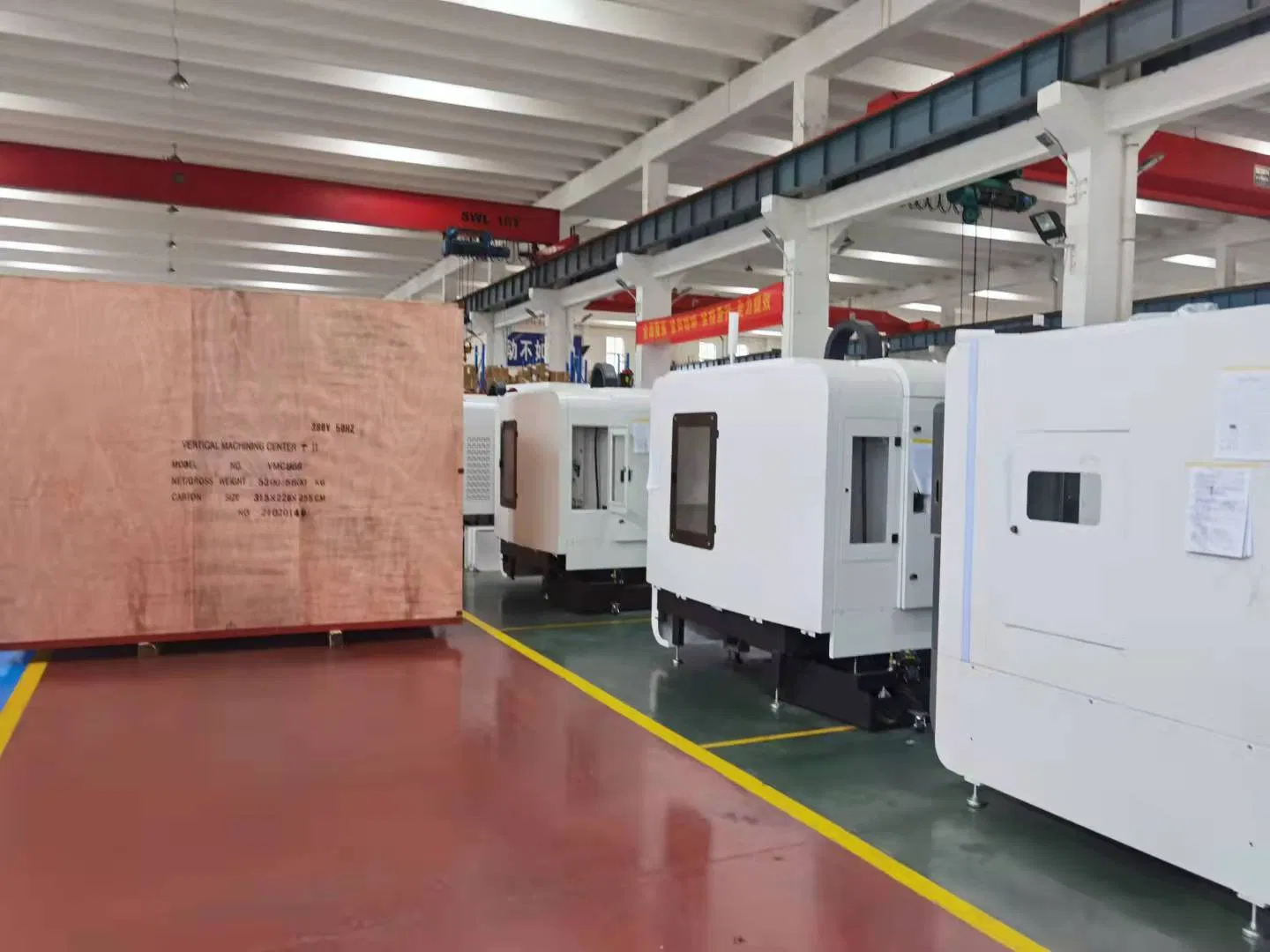

Factory View:
Machine Tools
Vertical Machining Center
Horizontal Machining Center
Double-column Machining Center
(Plano Machining Center)
Combined Machining Center
Vertical Machining Center
VMC850
VMC1160
Machine Tool
TCK46A
Linear Guideway and Slant
Company Info:
Weifang Runlian Economic and Trade Co., Ltd. Was established in 2005. It has 15 years of experience in R& D and sales of lubricants series products, machining series machines and machining accessory. It has a mature operating team and a professional technical R& D team. It has cooperated with more than 40 well-known enterprises in China. Fully trusted by our customers.
In order of market demand and specific technical requirements, we are professional our lubricants series and CNC, VMC, GMC, CNC flat lathe, CNC slant lathe, CNC EDM, CNC tool grinder, engraving milling machine, Zero Point positioning system, CNC energy saving fan, portable fuel dispenser, CNC tool car, oil water separator, chip sludge removal machine, cutting fluid filling machine, 4th axis rotary table, 90 degree angle head, parallel block, balance level, parallels vise, CNC tool box, portable EDM broken tap remover, vertical horizontal holder device and directly provide high quality products and professional after-sales services for the manufacturing industry.
Company vision: Become the first-class industrial service provider.
Contact Details:
Thank you for your time.

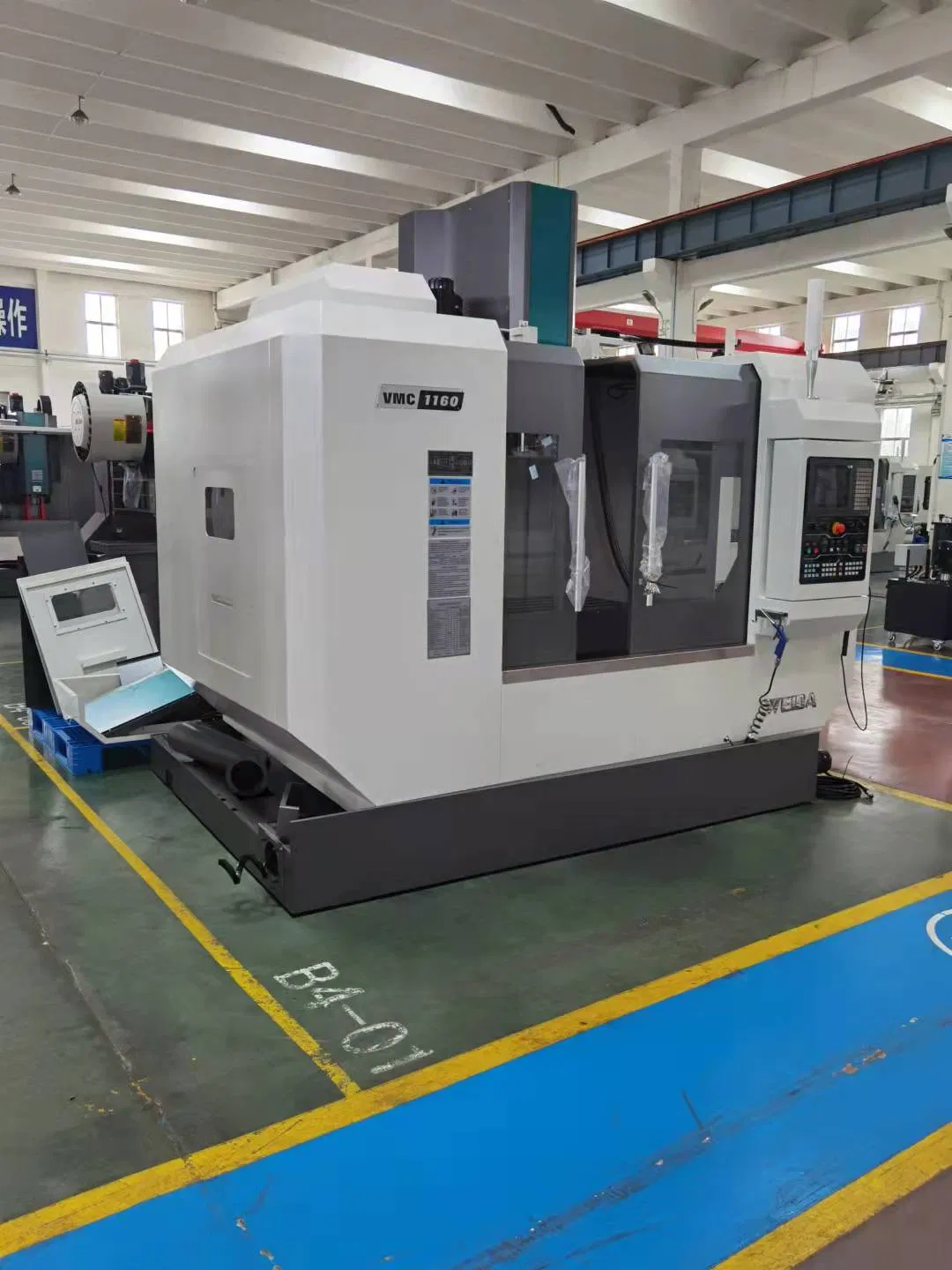

Vertical Machining Center
VMC1160
Technical Parameter:
| Specfication | Unit | VMC1160 |
| X/Y/Z travel | mm | 1100/600/600 |
| Spindle nose to worktable | mm | 120-720 |
| Spindle Power | kw | 2021/11/15 |
| Spindle Speed | rpm | 10000 |
| Spindle Taper | BT40-150 | |
| Positioning Accuarcy | mm | ±0.003 |
| Repeat Positioning Accuracy | mm | ±0.0015 |
| Table Size | mm | 1200x600 |
| Max Table Loading | kg | 900 |
| T-shot | 5-18-100 | |
| X/Y/Z Rapid Speed | m/min | 36/36/36 |
| Cutting Speed | mm/min | 1-10000 |
| X/Y/Z Axes Ball Screw Diameter | Φ40 | |
| X/Y/Z Axes Servo Motor Power | kw | 3.0/3.0/4.5 |
| Linear Width X/Y/Z | mm | 45/45/45 |
| Guideway No X/Y/Z | 2002/2/2 | |
| Slider No X/Y/Z | kg | 2006/4/6 |
| Max Power Consumption | kw | 25 |
| Air | Mpa | 0.5-0.7 |
| Power | 380v/220v/415v/50(60)Hz/3ph | |
| Ambient Temperature | 0ºC-42ºC | |
| Relative Humidity | 80% | |
| Machine Net Weight | T | 6.5 |
| Overall Dimension | mm | 3200/2550/2600 |
Terms and Conditions:
1.Trade term: FOB/FCA, CFR/CPT, CIF/CIP
2.Port of loading: Qingdao port, China
3.Payment term: T/T, L/C at sight
4.Lead time: wihtin 45 days after confirming contract
5.Shipping documents: Commercial Invoice, Packing List, C/O, Test Report, B/L, and any other files as you requested

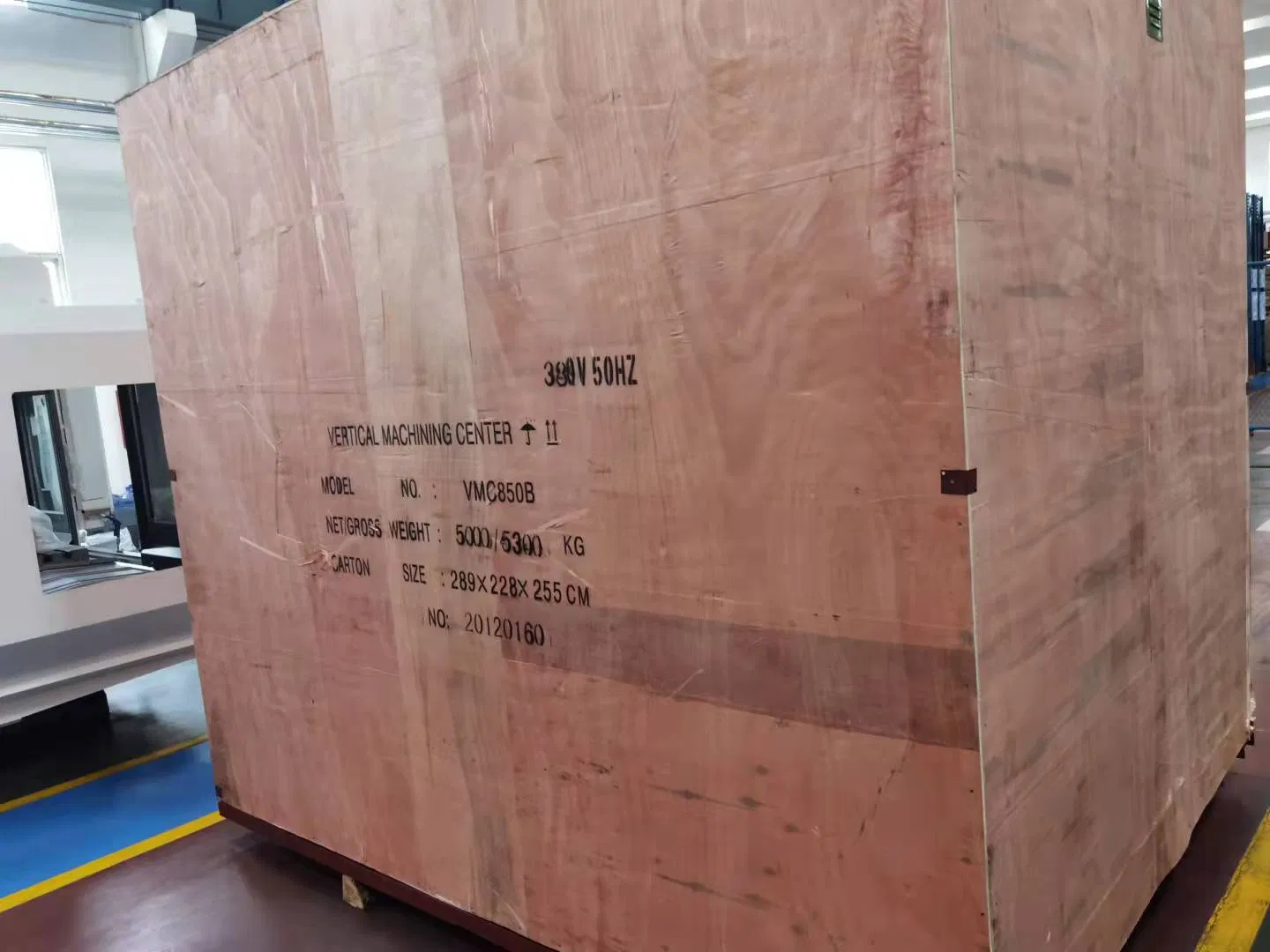

6.Package: wooden caseBasic Description:
☆Efficient, reliable automatic tool changer
1.VMC1160 vertical machining center configure two different modes of tool change for users to choose :
use horizontal tool changer -free, tool storage capacity of 16 or 20, tool change time of 6 seconds
tool changer with cam - type manipulator, tool storage capacity of 20 or 24, tool change time of 2.5 secondsuse horizontal tool changer -free, tool storage capacity of 16 or 20, tool change time of 6 seconds
2.Tool storage capacity of 16 BT40 or 24 forms of cutting tools, a larger tool weight of 8kg
3.Tool changing system maintainability good.
☆High reliability of its components
Configuration of machine tools in Japan, the United States and other well-known manufacturers of brand - name accessories to ensure overall quality.
☆Mechatronics Design
Full exchange of digital servo control performance, easy maintenance. CNC system stable and reliable, easy to operate, powerful, fast response, rich interface, with self - diagnosis function, can realize the coordinates precision double compensation.
☆Design of the larger least satisfy the customer
numerical control system can be configured according to user requirement to undertake turnkey projects.
Standard Accessories:

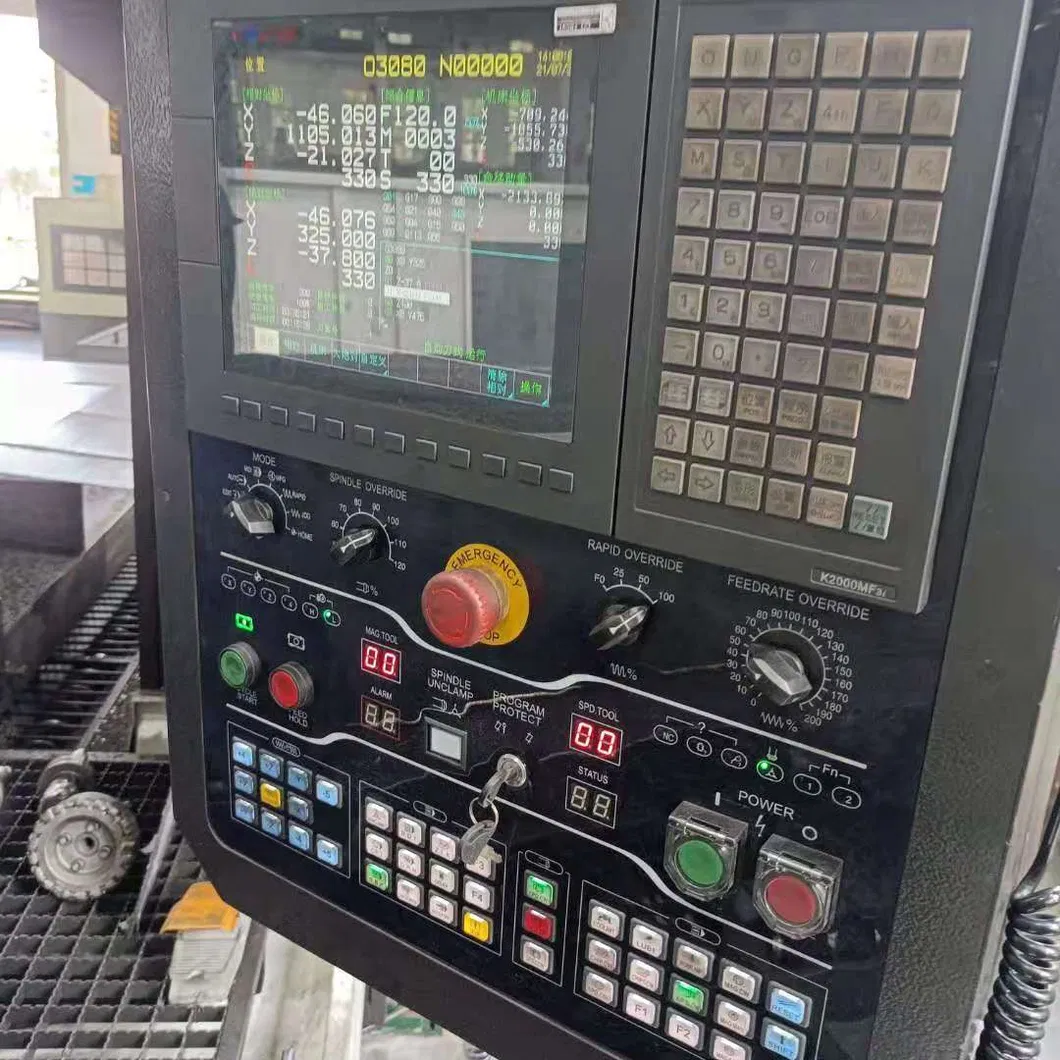

Fanuc 0i TF control system
Mitsubishi and Siemens control system
Taiwan Spindle: 10000rpm
X/Y/Z axis: Fanuc servo drive motor
Main motor: Fanuc spindle motor
24tools hat type
USB for information transfer
Rough cutting of thread
Full closed cover
Automatic lubrication
Coolant system
Work lamp
Tri-color indication lamp
Heat exchanger in cabinet
3-Axis linear guideway from Taiwan Hiwin
Ball leadscrew from Taiwan Hiwin
Machine Installation Environment:
★Power Supply: AC 3Ф 380V +10%~-15% 50HZ±1Hz
★Source : Pressure0.5~0.7mpa , Flow 250L/min
★Relative Humidity: ≤80%
★Ambient Temperature: 0°~ 42°C
Optional Accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
24 tools disc type
Nitrogen balance cylinder
Air conditioner for electricity cabinet
3rd Axis, 4th Axis or 5th Axis
Factory View:
Machine Tools
Vertical Machining Center
Horizontal Machining Center
Double-column Machining Center
(Plano Machining Center)
Combined Machining Center
Vertical Machining CenterVMC850
VMC1160
Machine Tool
TCK46A
Linear Guideway and Slant
Company Info:
Weifang Runlian Economic and Trade Co., Ltd. Was established in 2005. It has 15 years of experience in R& D and sales of lubricants series products, machining series machines and machining accessory. It has a mature operating team and a professional technical R& D team. It has cooperated with more than 40 well-known enterprises in China. Fully trusted by our customers.
In order of market demand and specific technical requirements, we are professional our lubricants series and CNC, VMC, GMC, CNC flat lathe, CNC slant lathe, CNC EDM, CNC tool grinder, engraving milling machine, Zero Point positioning system, CNC energy saving fan, portable fuel dispenser, CNC tool car, oil water separator, chip sludge removal machine, cutting fluid filling machine, 4th axis rotary table, 90 degree angle head, parallel block, balance level, parallels vise, CNC tool box, portable EDM broken tap remover, vertical horizontal holder device and directly provide high quality products and professional after-sales services for the manufacturing industry.
Company vision: Become the first-class industrial service provider.
Contact Details:
For more information on CNC lathe machine, CNC milling machine or CNC vertical machining center, please no hesitation to contact us.
Thank you for your time.
