Professional Design High-Accuracy PLC Hnc-818d Control System 3 Axis CNC Vertical Milling Machine
Professional Design High-Accuracy Plc Hnc-818D Control System 3 Axis Cnc Vertical Milling MachineProduct Description SpecificationUHB 400 SpecificationsSystemHNC-818DWork tableDimension400X400mmMax.Load100kgTravelsMax.Travel in X-/Y-/Z-axis400X400X150mmFeedRateRapid Traverse in X-/Y-/Z-axis15/15/12m......
Send Inquiry
Product Description
Professional Design High-Accuracy Plc Hnc-818D Control System 3 Axis Cnc Vertical Milling Machine

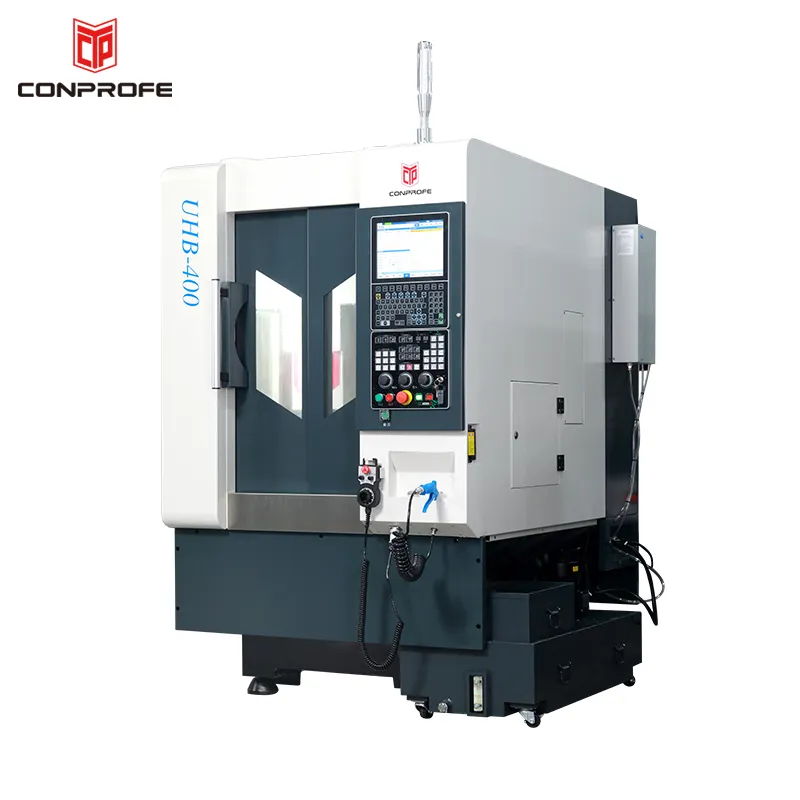

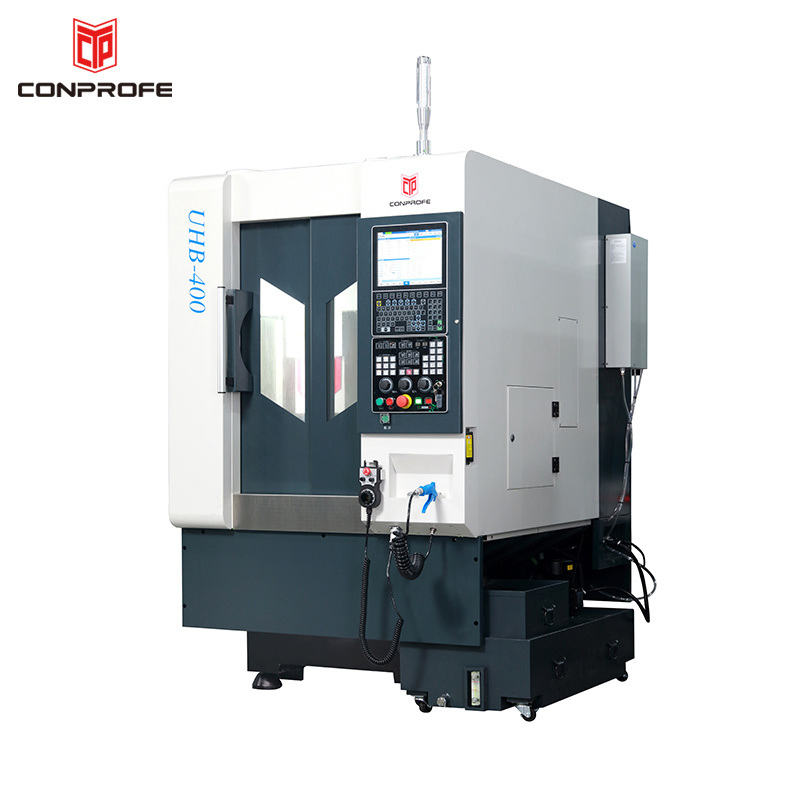

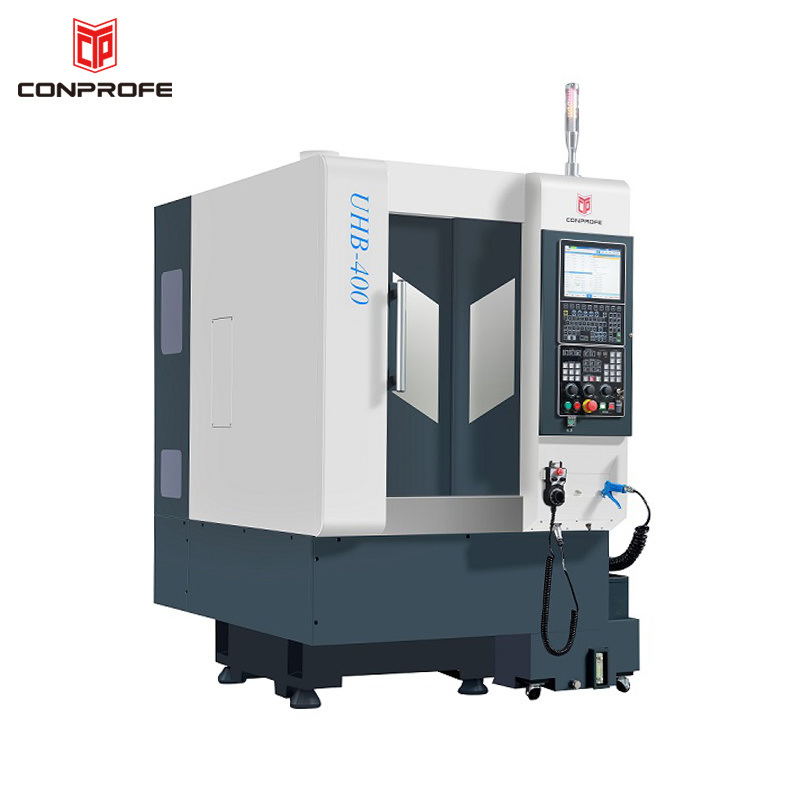

| UHB 400 Specifications | ||
| System | HNC-818D | |
| Work table | Dimension | 400X400mm |
| Max.Load | 100kg | |
| Travels | Max.Travel in X-/Y-/Z-axis | 400X400X150mm |
| FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min |
| Spindle | Diameter | o80mm |
| Power Rating | 3.7kW | |
| Max.Speed | 40000rpm | |
| Magazine | Tool Capacity | 12Positions |
| Tool Holder Spindle | ISO 20 | |
| Tool Overhang | 70mm | |
| Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.005mm |
| Repeatability Accuracy in X-/Y-IZ-axis | 0.003mm | |
| Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/18A |
| Weight | 2100kg | |
| Required Compressed Air Connection | ≥0.6MPa | |
| Dimensions(X/Y/Z) | 1450×1750×1960mm | |
