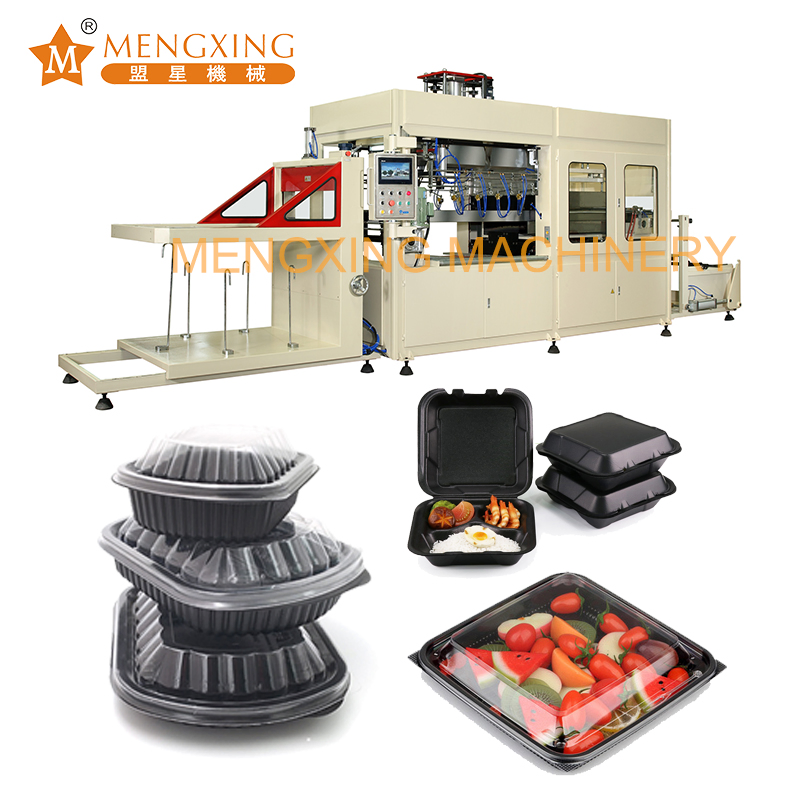

PP, PVC, Pet, PS Product Forming Machine (XC46-71/122A- BWP )
XC46-71/122-BWP Automatic High-speed Vacuum Forming MachineI,UsageThis machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, Western medicine, children'......
Send Inquiry
Product Description

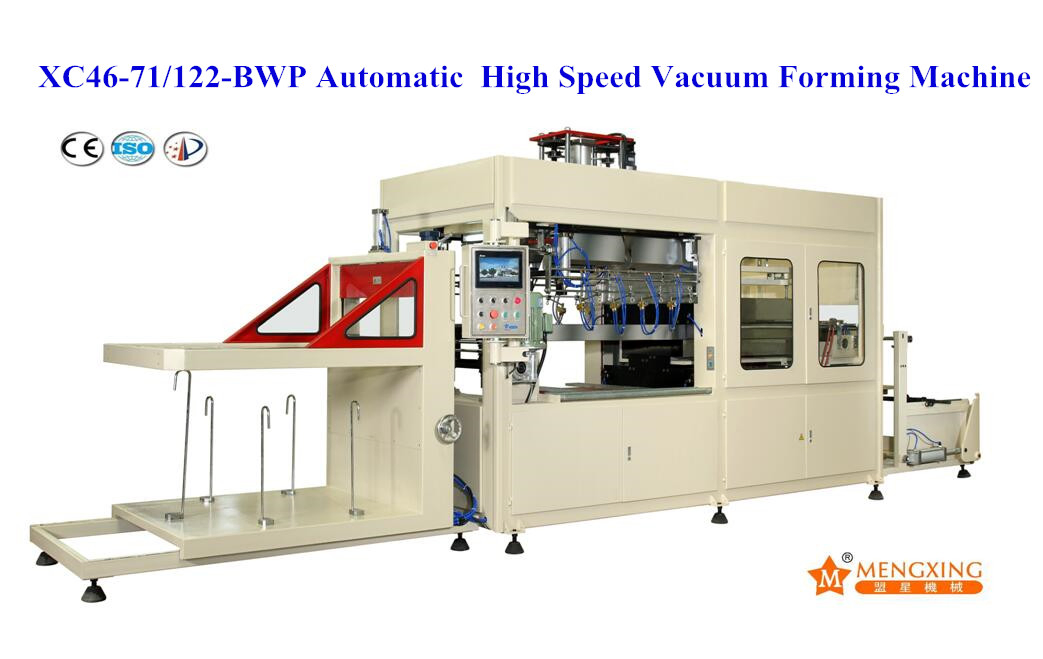

XC46-71/122-BWP Automatic High-speed Vacuum Forming Machine
V,Technical configuration

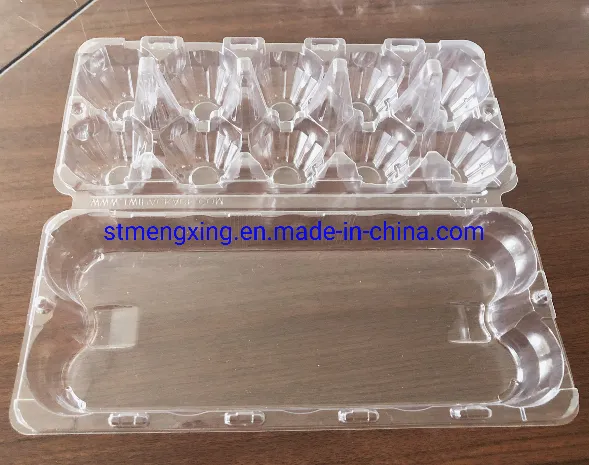

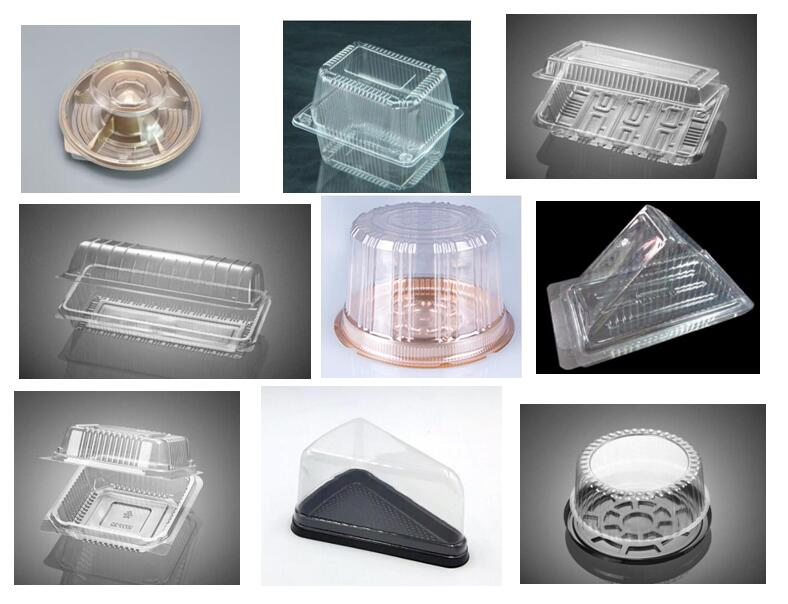

VI,Sample Pictures
VII,Mold Picture
VIII,Certifications
IX,Workshop Pictures

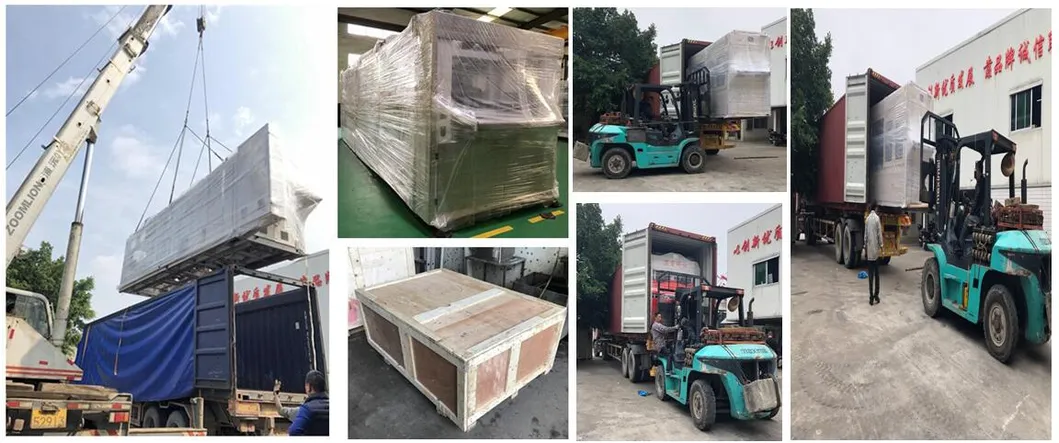

X,Package
XI,Exhibition
I,Usage
This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, Western medicine, children's toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.
II,Available sheet
1. Starch degradation sheet
2. Optical degradation sheet
3. Green sheet: APET, PETG
4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc.
III,Features
01. mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. Frequency sheet feeding, stepless adjustment of the length, accurate and stable speed. (Max.Speed:1000mm/s)
03. Electric furnace temperature control system is fully computerized intelligent automatic compensation control, partitioning a controlled man-machine interface of a digital input, with high precision fine-tuning, temperature uniformity, fast heating (from 0-400 degrees 3 minutes), stable ( influence from external voltage, temperature fluctuations of not more than 1 degree), low energy consumption (15% saving), hearth advantages of long life.
04.Double electric oven.
05. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace side of the row of brick fever can reduce energy consumption by 16%.
06. Early feeding with the heating time automatic memory function, since the first version of the machine can enter the normal working condition.
07. Vacuum in two steps, forming mold adjusted twice, shock release, delay vacuum.
08. Up and down mold stroke can be adjusted in two-directions.The closing method of up mold adopts electric adjustment.Height of up&down mold can be adjusted when closing mold,convenient and fast.
09.Electric adjust the position of the rear upper flashboard.
10. The down mold clamping direction readily into the buffer, to improve the speed of mold clamping, to avoid shock.
11.The guide sleeve of up&down mold plates adopt insert solid lubrication bearing, which makes them move smoothly and accurately, and is helpful to improve the products quality.
12. With electric furnace automatic removal device, in the middle of production,it doesn't need to disconnect the sheet.It can stop or start up at any time, which do not waste sheet.
13. Mechanical reel device, reduce labor intensity.
14 Movement guide column, so that products stack neatly.
15. 10.4-inch color touch screen, optimized operating environment.
16. Front &rear upper flashboards are made of aluminum alloy material, anti-rust and improve product quality.
IV,Technical parameters
This machine is mainly adapted to a variety of plastic reel sheet vacuum forming various open thin-walled containers for food, souvenirs, travel goods, textiles, decorations, cosmetics, medical supplies, Western medicine, children's toys, electrical and electronic components, hardware and other goods producing all kinds of packaging products.
II,Available sheet
1. Starch degradation sheet
2. Optical degradation sheet
3. Green sheet: APET, PETG
4. Various colors sheet: PVC, HIPS, PET, PS, PP, EPS, etc.
III,Features
01. mechanical, pneumatic, electrical integration. Each action program controlled by the PLC. Touch-screen operation, simple and convenient.
02. Frequency sheet feeding, stepless adjustment of the length, accurate and stable speed. (Max.Speed:1000mm/s)
03. Electric furnace temperature control system is fully computerized intelligent automatic compensation control, partitioning a controlled man-machine interface of a digital input, with high precision fine-tuning, temperature uniformity, fast heating (from 0-400 degrees 3 minutes), stable ( influence from external voltage, temperature fluctuations of not more than 1 degree), low energy consumption (15% saving), hearth advantages of long life.
04.Double electric oven.
05. Electric furnace with a bias structure, when the sheet width of less than 580mm, closed electric furnace side of the row of brick fever can reduce energy consumption by 16%.
06. Early feeding with the heating time automatic memory function, since the first version of the machine can enter the normal working condition.
07. Vacuum in two steps, forming mold adjusted twice, shock release, delay vacuum.
08. Up and down mold stroke can be adjusted in two-directions.The closing method of up mold adopts electric adjustment.Height of up&down mold can be adjusted when closing mold,convenient and fast.
09.Electric adjust the position of the rear upper flashboard.
10. The down mold clamping direction readily into the buffer, to improve the speed of mold clamping, to avoid shock.
11.The guide sleeve of up&down mold plates adopt insert solid lubrication bearing, which makes them move smoothly and accurately, and is helpful to improve the products quality.
12. With electric furnace automatic removal device, in the middle of production,it doesn't need to disconnect the sheet.It can stop or start up at any time, which do not waste sheet.
13. Mechanical reel device, reduce labor intensity.
14 Movement guide column, so that products stack neatly.
15. 10.4-inch color touch screen, optimized operating environment.
16. Front &rear upper flashboards are made of aluminum alloy material, anti-rust and improve product quality.
IV,Technical parameters
| Parameter | XC46-71/122-BWP(mode No.) | |
| Available sheet width (mm) | 460-710 | |
| Available sheet thickness (mm) | 0.1-1.2 | |
| Max.dia.of sheet roll (mm) | 600 | |
| Up mold stroke (mm) | 400 | |
| Down mould stroke (mm) | 300 | |
| Max. forming area (mm2) | 680 × 1200 | |
| Max. forming height (mm) | 200 | |
| Max. forming depth (mm) | 150 | |
| Capacity (Cycle / min) | 4-10 | |
| Product Shaping&Cooling | Air vent qty. | 4 pcs |
| Spray nozzle qty. | 8 pcs | |
| Gas Source (outlay) | Air supply(m3/min) | ≥ 2 |
| Pressure(Mpa) | 0.8 | |
| Water consumption | 4-5 Cube / Hour | |
| Vacuum pump (Outlay) | Busch R5 0100 | |
| Power supply | 3-phase 4-wire 380V/220V 50Hz | |
| Heating power(Kw) | 30 | |
| Feeding motor power (Kw) | 2.2 | |
| Max.power of whole machine(Kw) | 37 | |
| Dimensions (L × W × H) (mm) | 8070 × 1656 × 2425 | |
| Total weight of whole machine (Kgs) | 4600 | |
V,Technical configuration
| Programmable logic controller (PLC) | Taiwan Delta |
| 10.4 inches color touch screen | Taiwan Delta |
| Drive inverter | Taiwan Delta |
| Feeding motor (3Kw) | China |
| Encoder | Japan |
| Heater (59pcs) | China |
| Heater with sensor (1pc) | Germany |
| Solid-state regulator | China |
| AC contactor | Germany Siemens |
| Thermal relay | Germany Siemens |
| Intermediate relay | Germany Weidmuller |
| Vacuum pump | Busch R5 0100 |
| Pneumatic components | Korea Sanwo&Japan SMC |
| Cylinder | China |
| Air sprayer (8pcs) | Meiji |
| Fan (4 × 0.37 kw) | Manda |

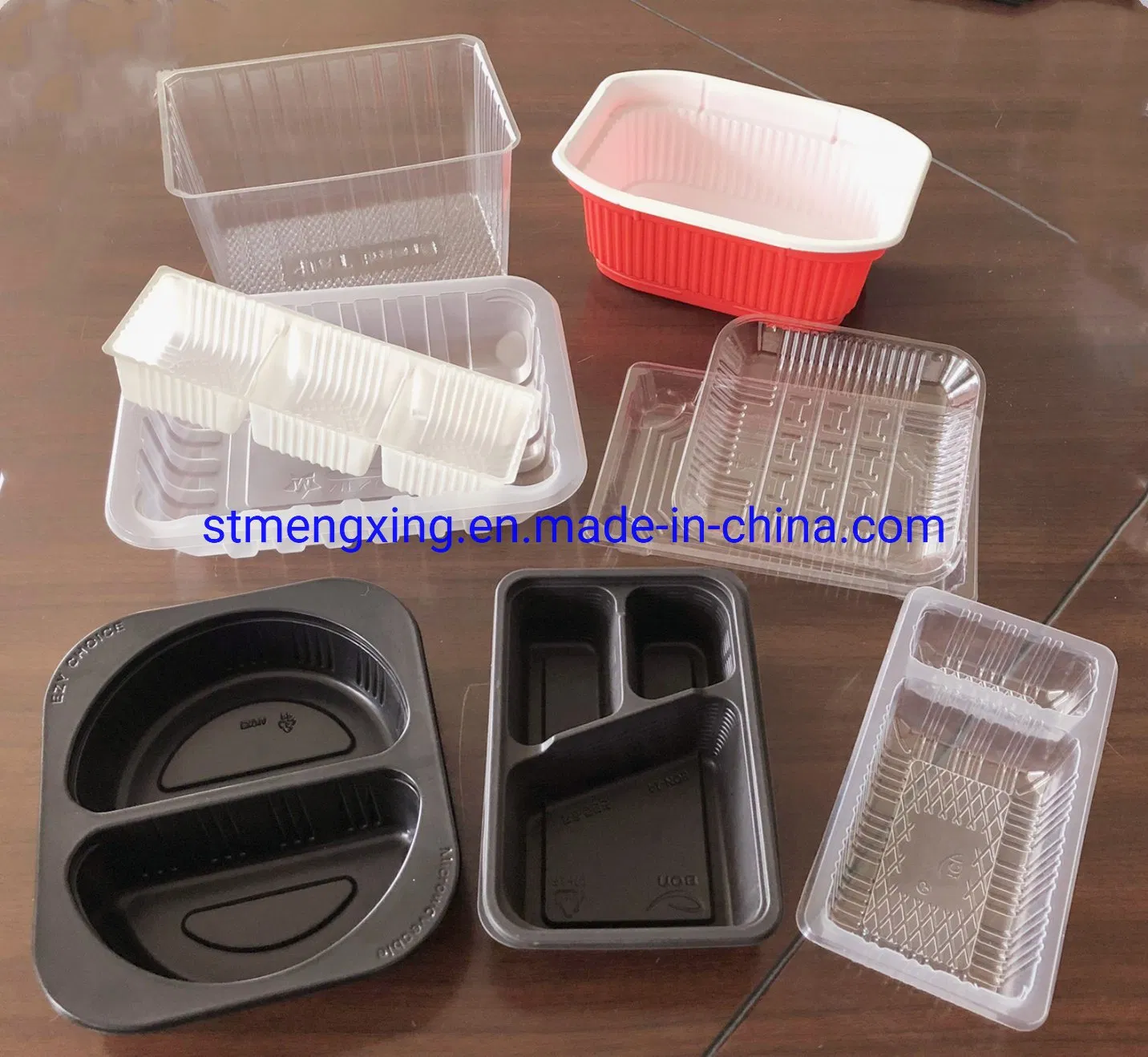

VI,Sample Pictures

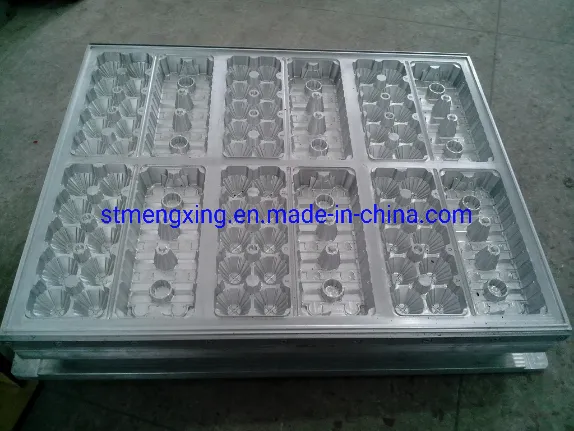

VII,Mold Picture

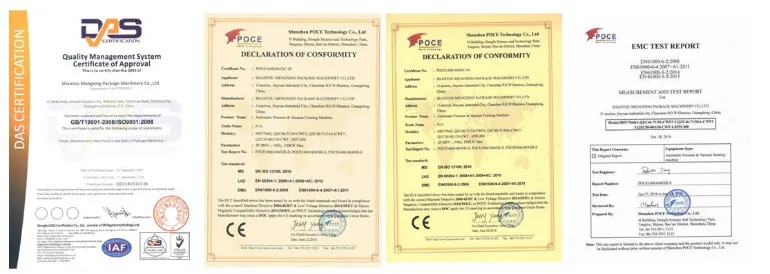

VIII,Certifications

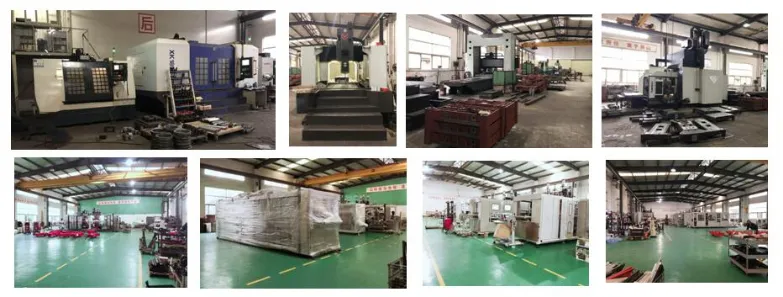

IX,Workshop Pictures
X,Package
XI,Exhibition
