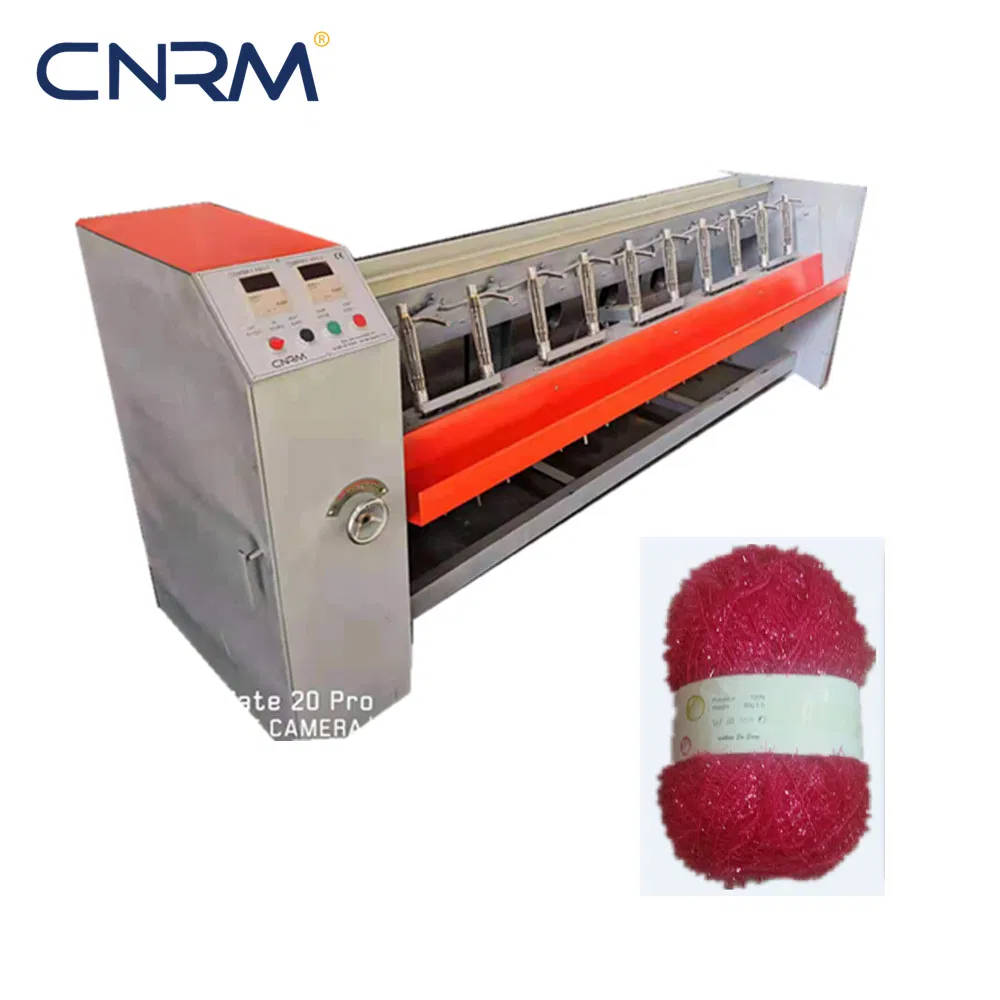

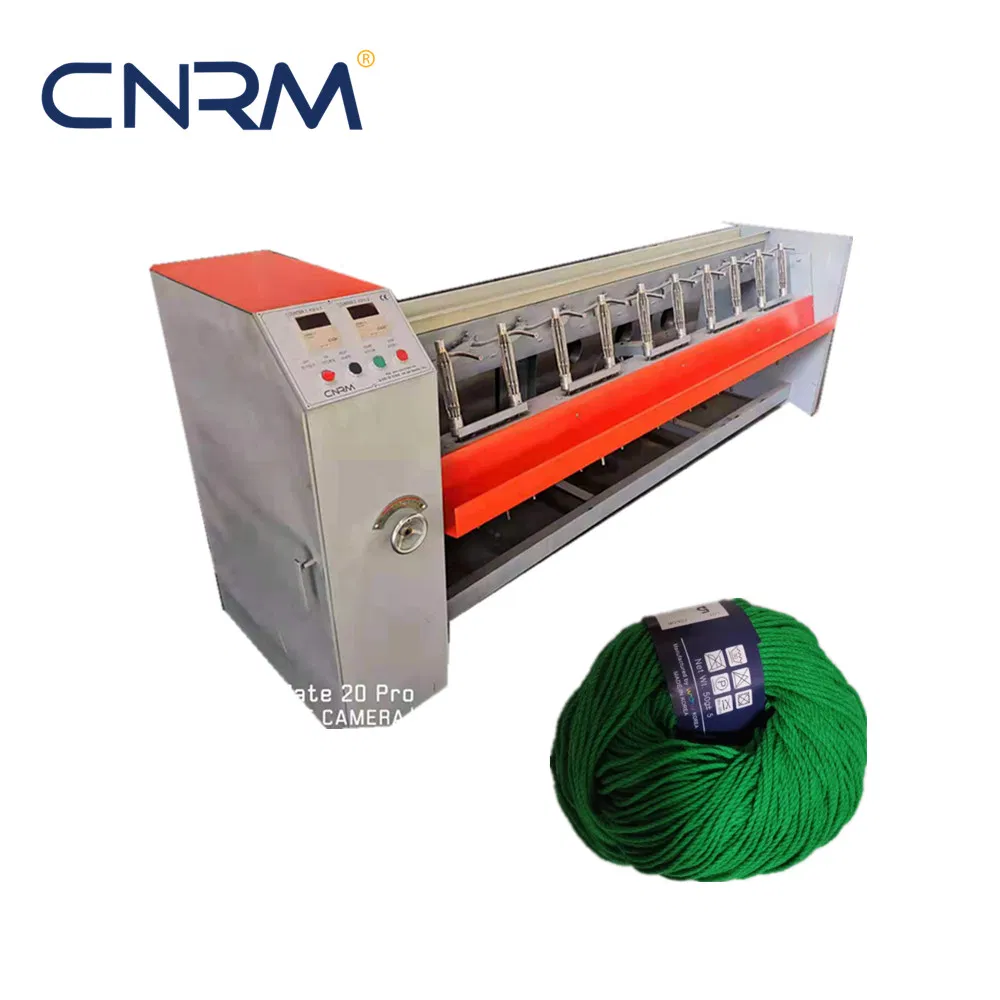

High Speed Ball Winder for Hand Woven Boutique T Shirt Fabric Polyester Yarn
3mm-32mm Shandong Hadai CNRM PP/PE/Jute/Cotton/Nylon/Polyester Twisted Rope Making Machine 1.Product Description The rope is divided into monofilament rope, split film rope, multifilament rope, nature rope, waste yarn rope.Suitable rope(1). Rope diameter: from 3mm up to 32mm. (2). Suitable material......
Send Inquiry
Product Description
3mm-32mm Shandong Hadai CNRM PP/PE/Jute/Cotton/Nylon/Polyester Twisted Rope Making Machine
1.Product Description
The rope is divided into monofilament rope, split film rope, multifilament rope, nature rope, waste yarn rope.
Suitable rope
(1). Rope diameter: from 3mm up to 32mm.
1.Product Description
The rope is divided into monofilament rope, split film rope, multifilament rope, nature rope, waste yarn rope.
Suitable rope
(1). Rope diameter: from 3mm up to 32mm.
(2). Suitable material: HDPE, PP, PET, nylon, polyester, cotton, sisal, jute, coconut, banana, recycled tape,nonwoven tape, etc. monofilament, multifilament, natural fiber, the machine has wide application scope.
(3). Rope structure: 3 strands, 4 strands, 4 strands with the core.

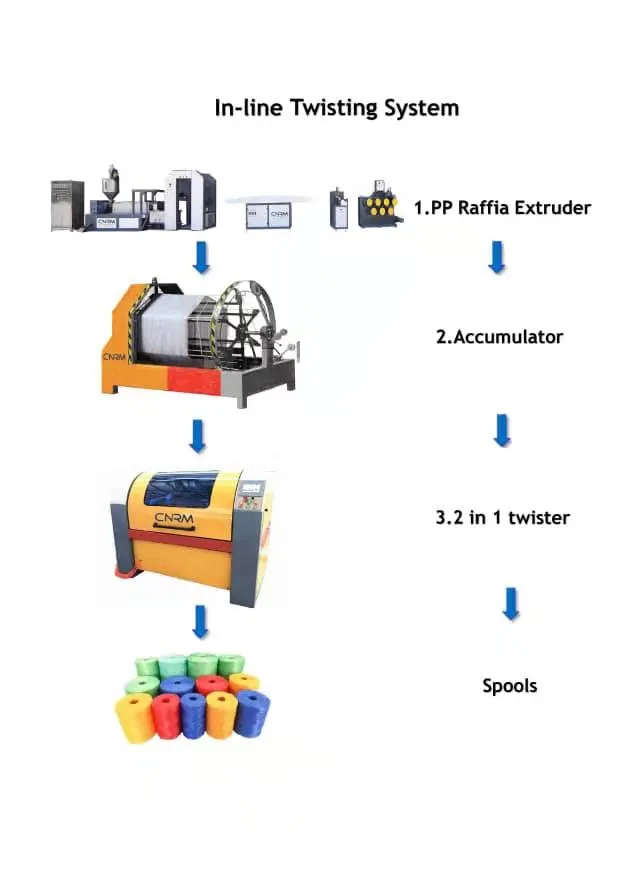

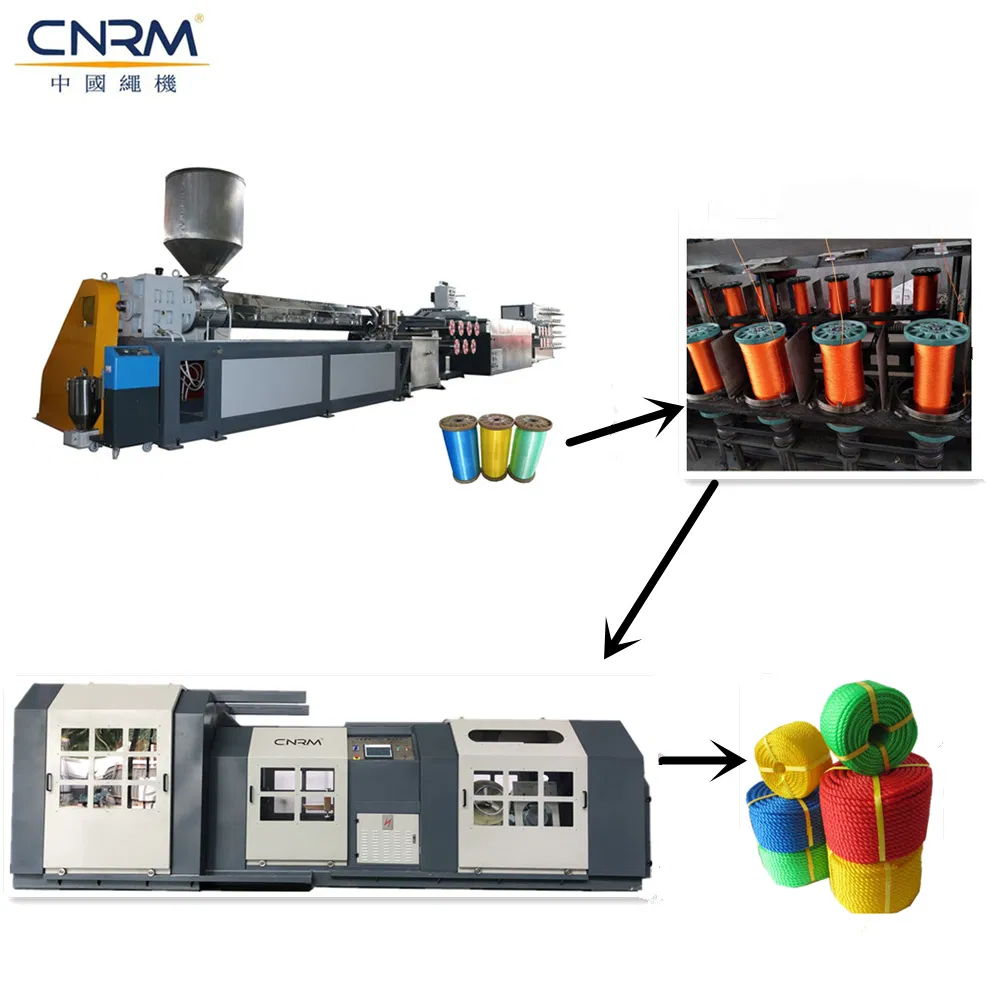

Complete production line for pp pe monofilament rope
(1). PP PE monofilament yarn extruder machine for matching High Speed nylon rope making machine for plastic monofilament/pp danline/Plastic split blown film/sisal jute/cotton cloth rope.
(2). Ring twister machine for first twisting of rope.
(3). Rope making machine for making 3 strands or 4 strand rope.
(4). Rope rewinder machine for reel, coil, hank packaging.
2.Plastic Rope Making Machine Parameters
Item | HDTM-M33 | HDTM-M44 | HDTM-M55 | HDTM-M66 | HDTM-M77 |
Rope Range | 3-10mm | 6-14mm | 12-22mm | 18-26mm | 22-32mm |
Lay Range | 15-38mm | 20-50mm | 32-78mm | 40-105 | 45-130 |
Power | 7.5kw | 7.5kw/11kw | 18.5kw | 22kw | 30kw |
Take-up capacity | Φ130*Φ500*Φ320 | Φ130*Φ600*Φ400 | Φ130*Φ600*Φ400 | Φ140*Φ700*Φ450 | Φ200*Φ550*Φ650 |
Size of pay-off bobbin | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) | 175*300mm(8) |
Qty of 8" bobbin | 8*3 or 8*4 | 24*3 or 24*4 | 32*3 or 32*4 | 46*3 or 46*4 | 64*3 or 64*4 |
Machine weigth | 2500kg | 3500kg | 5000kg | 6000kg | 7000kg |
Plastic Rope Making Machine Key Features
-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.
-Direct coiling head.

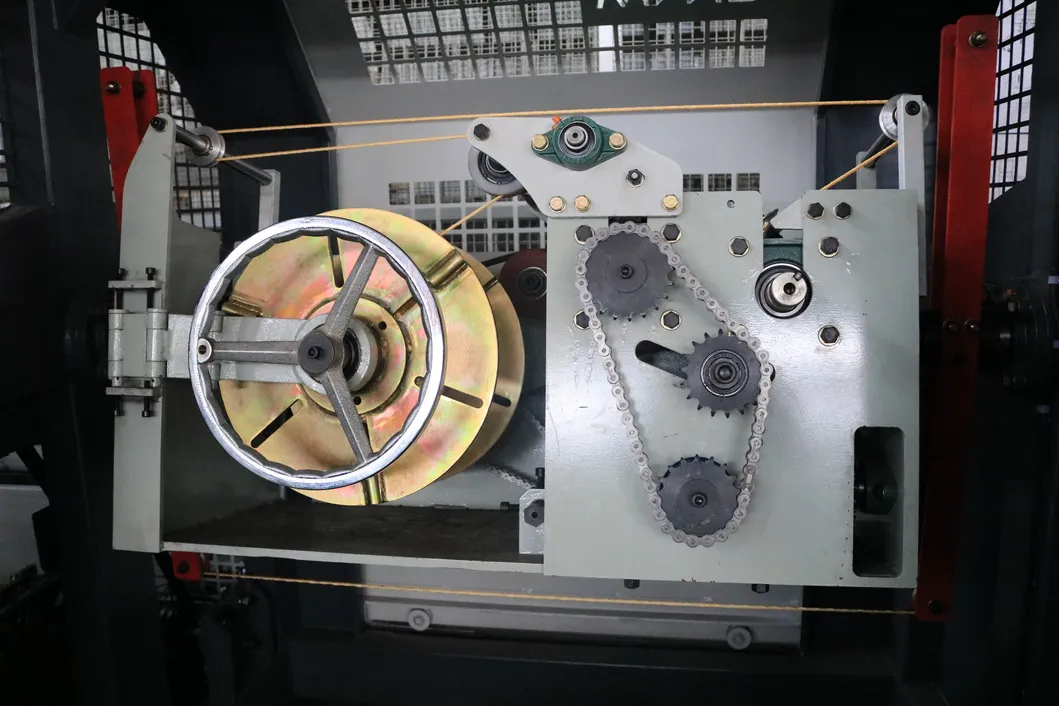

3.Detailed Images

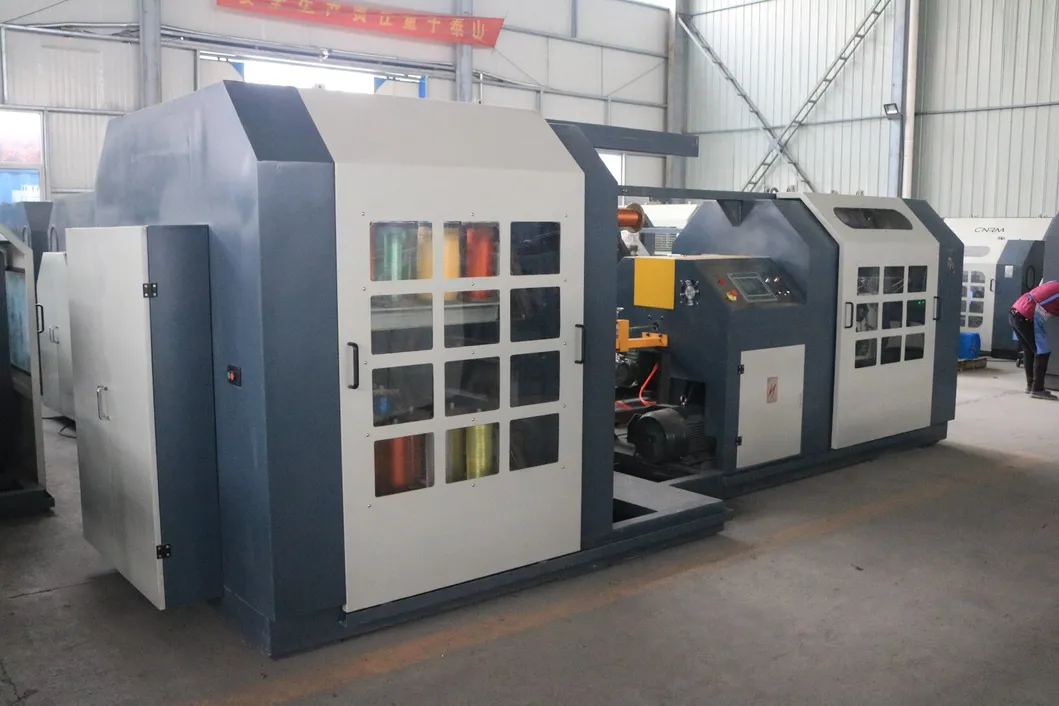

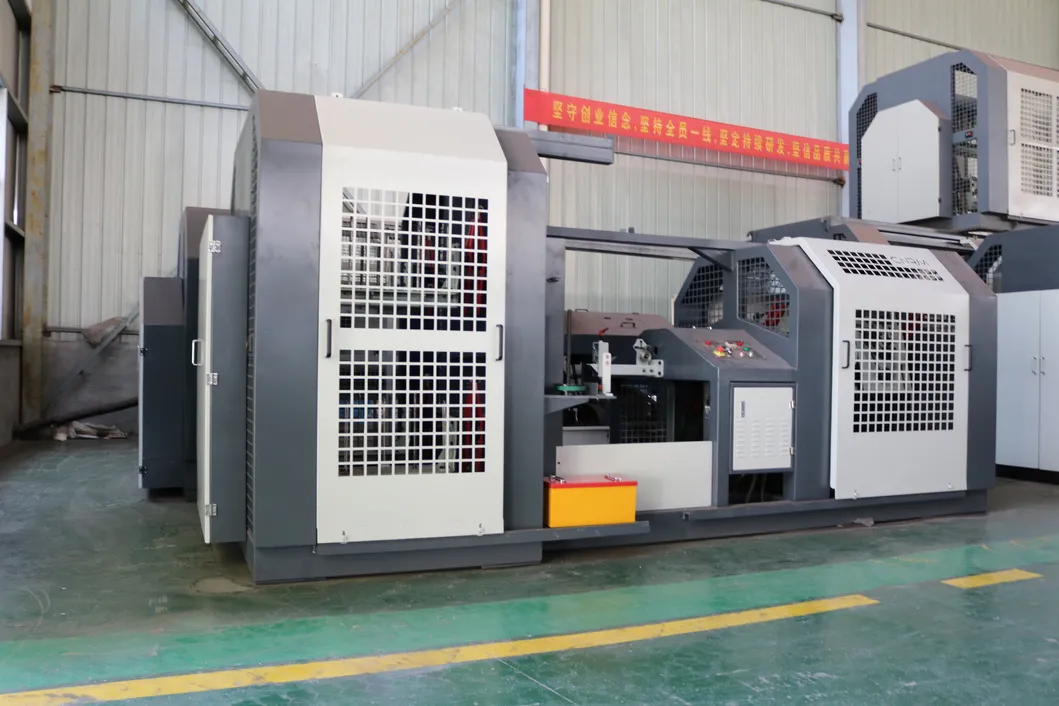

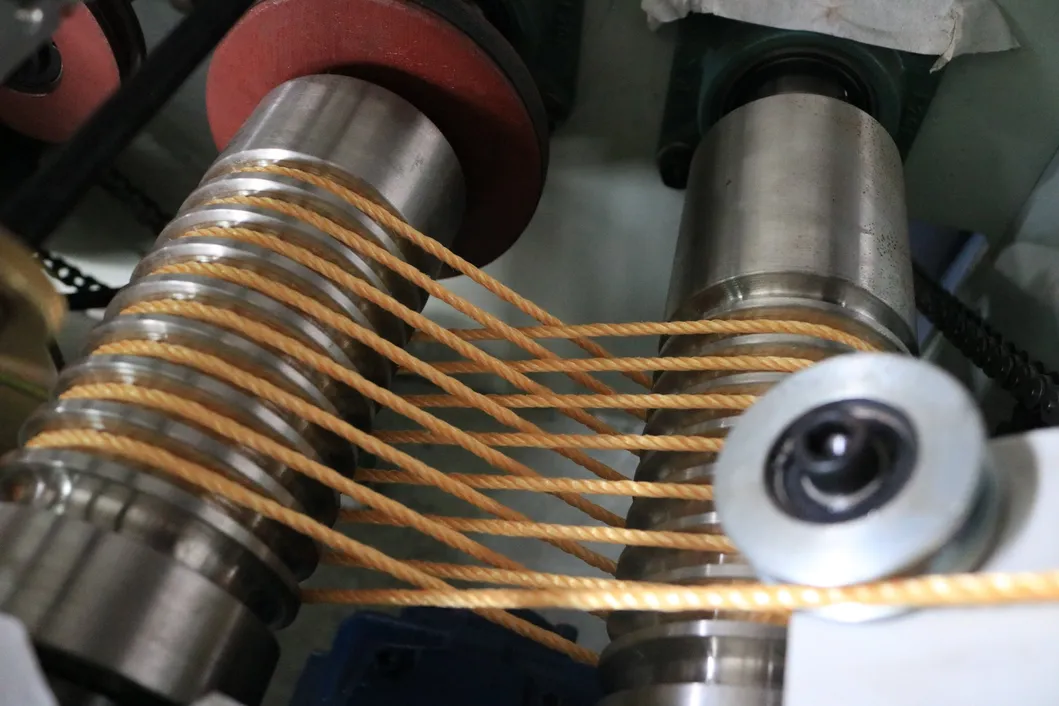

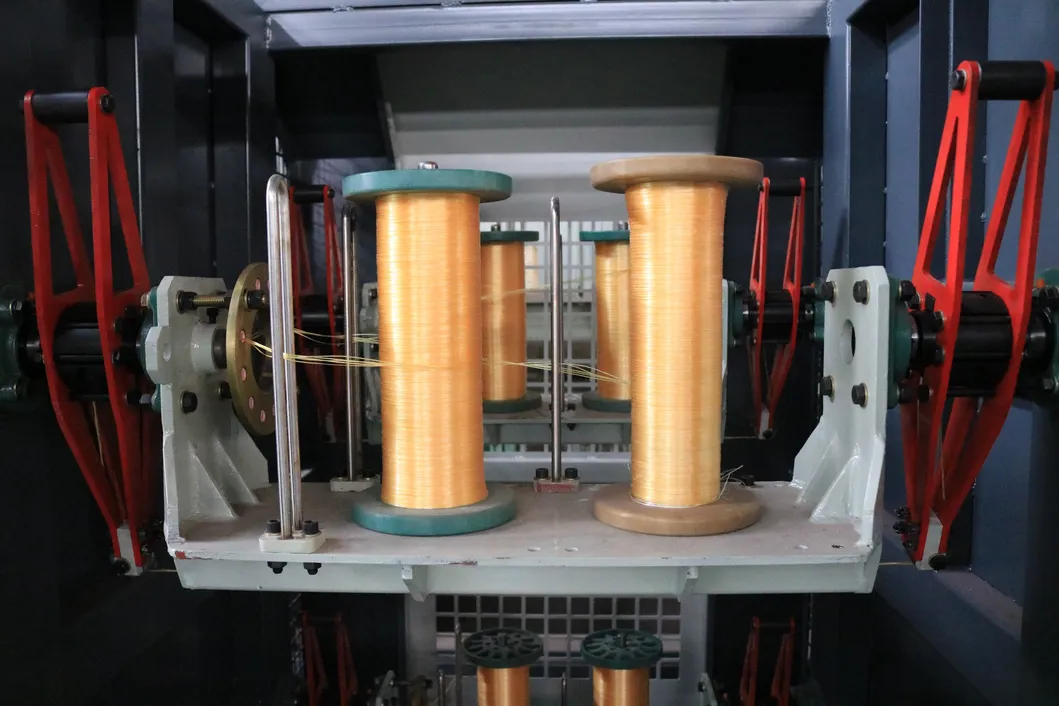

Plastic Rope Making Machine Overall Pictures
please tell your final rope diameter range,we are so pleased to recommend right twist rope machine models to you.

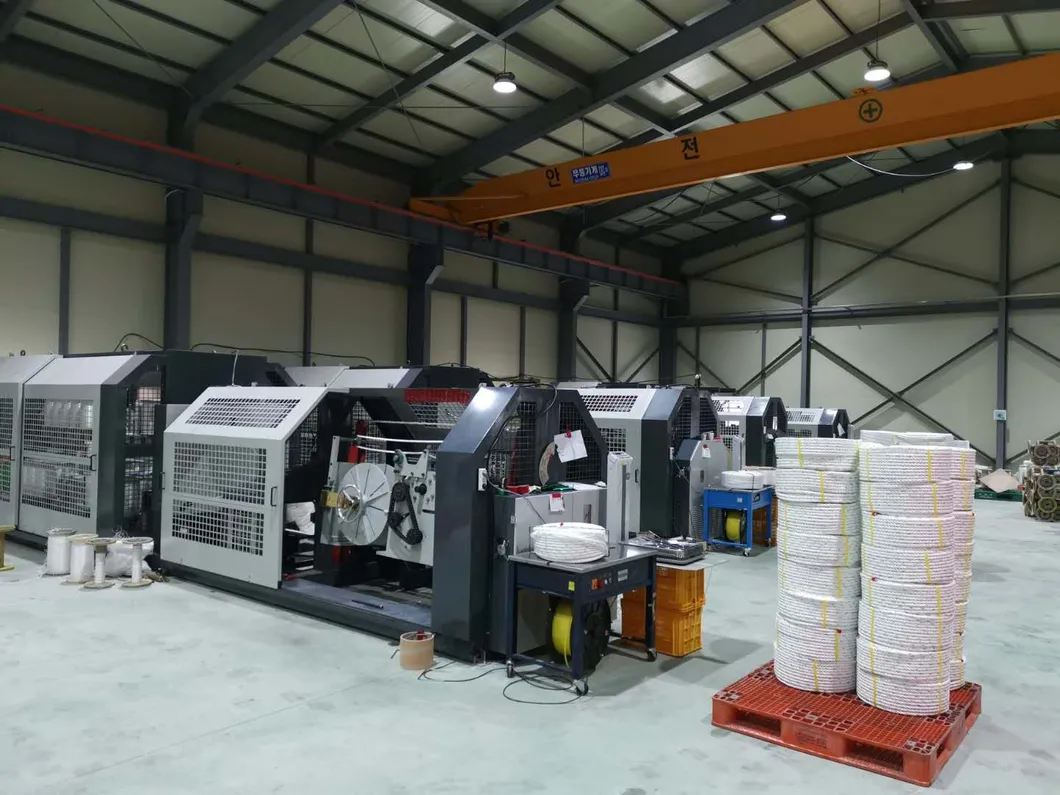

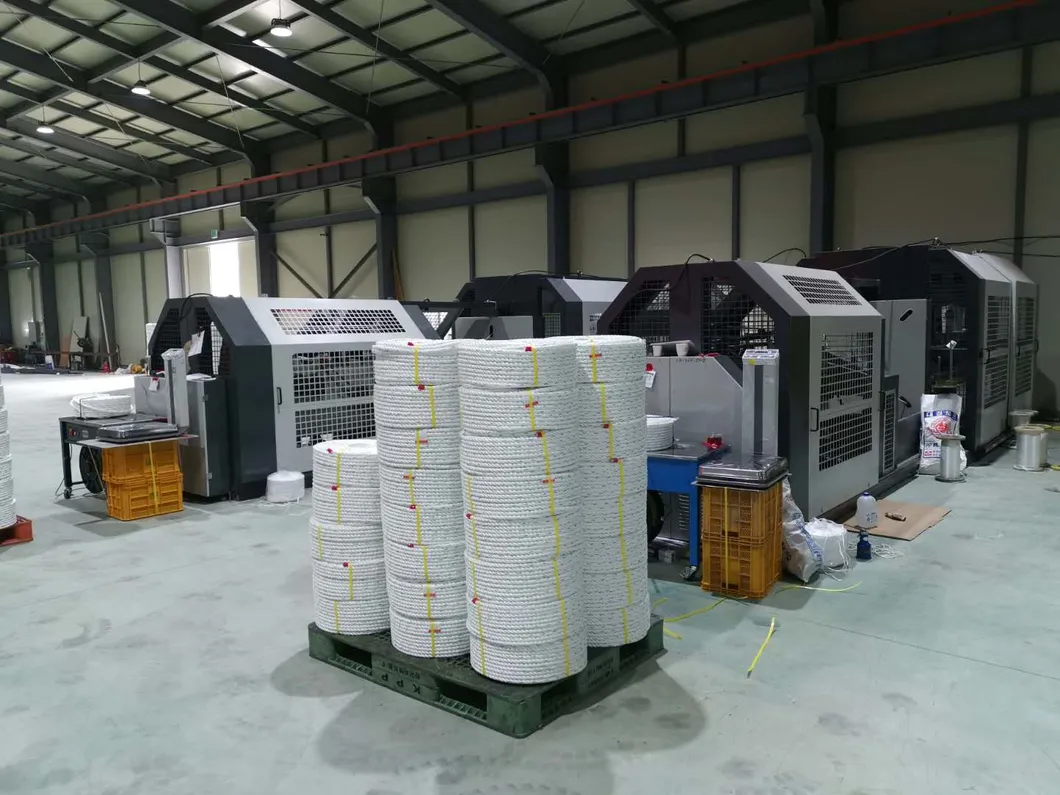

4.Installation at customer's factory

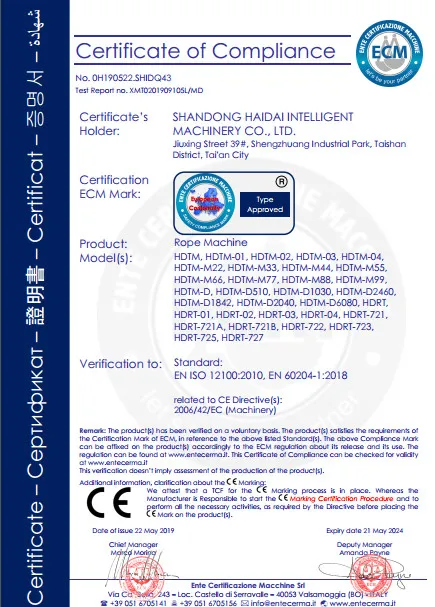

5. CE Certification
6.Related Products
PP/PE/HDPE/PET monofilament/danline rope production line
PP/PE/HDPE Raffia ball/spool rope production line
7.Contact us
4.Installation at customer's factory
5. CE Certification
6.Related Products
PP/PE/HDPE/PET monofilament/danline rope production line
PP/PE/HDPE Raffia ball/spool rope production line
7.Contact us
