    Good Quality Milk Cup Making Machine
    • Good Quality Milk Cup Making MachineGood Quality Milk Cup Making Machine
    • Good Quality Milk Cup Making MachineGood Quality Milk Cup Making Machine
    • Good Quality Milk Cup Making MachineGood Quality Milk Cup Making Machine
    • Good Quality Milk Cup Making MachineGood Quality Milk Cup Making Machine

    Good Quality Milk Cup Making Machine

    Good quality milk cup making machineApplicantion:HFTF-70T Plastic cup forming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.Features:In-mould CuttingHigh accuracy and high yield productsPick-up stacking sys......

    Send Inquiry

    Product Description

    Good quality milk cup making machine

    Good Quality Milk Cup Making Machine
    Applicantion:

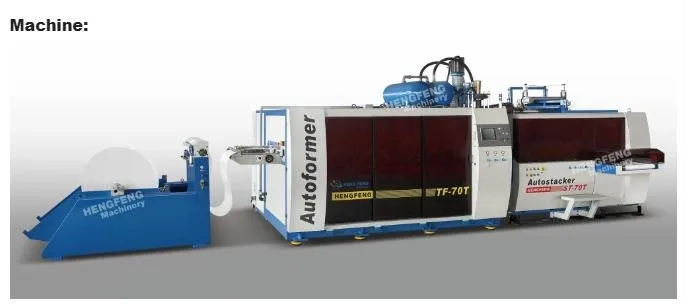

    HFTF-70T Plastic cup forming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.

    Features:
    In-mould Cutting
    High accuracy and high yield products
    Pick-up stacking system for more sanitary and save labor
    Servo motor for plug assist and sheet feeding system
    Two -station unwinder system
    Rapid mould changing device
    Mould automatic memory system
    PLC design with easy operation.

    Main Specification

    1- Max. Forming  Area680× 320mm
    2- Max. Down Forming Machine150mm/180mm
    3- Max. Up Forming Height15mm
    4- Sheet Thickness0.35-2.5mm
    5- Max. Roller  Diameter Φ 1200mm
    6- Air  Pressure 0.7-0.85mpa
    7- Water  Consumption 50L/min
    8- Air  Consumption 3000L/min
    9- Max.Speed 35Cycles/min
    10- Power (Three  Phase  Four  Wire)3× 380V+NP+PE. 50HZ
    11- Heating  Power130kw
    12- Main  Motor  Power11kw
    13- Feeding  Motor  Power 4.4kw
    14- Scrap  Rewinding  Motor  Power 0.55kw
    15- Machine  Weight 10000kgs
    16- Dimension 11000× 3650× 3500mm

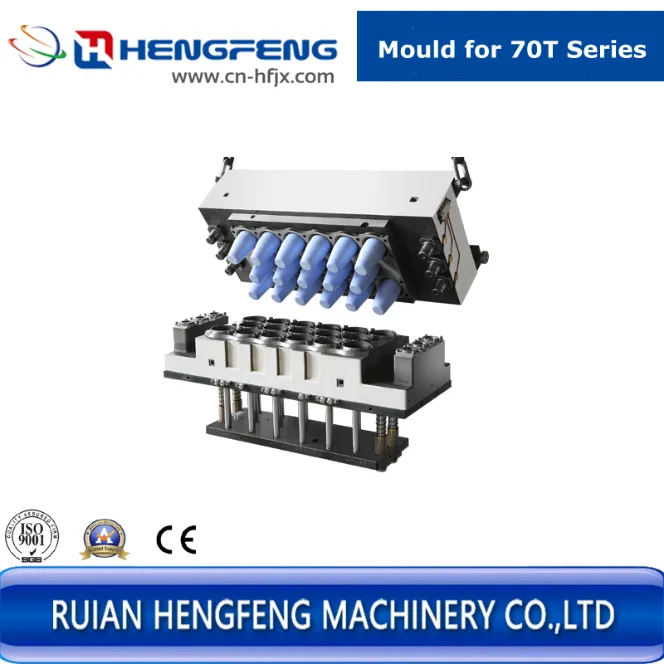

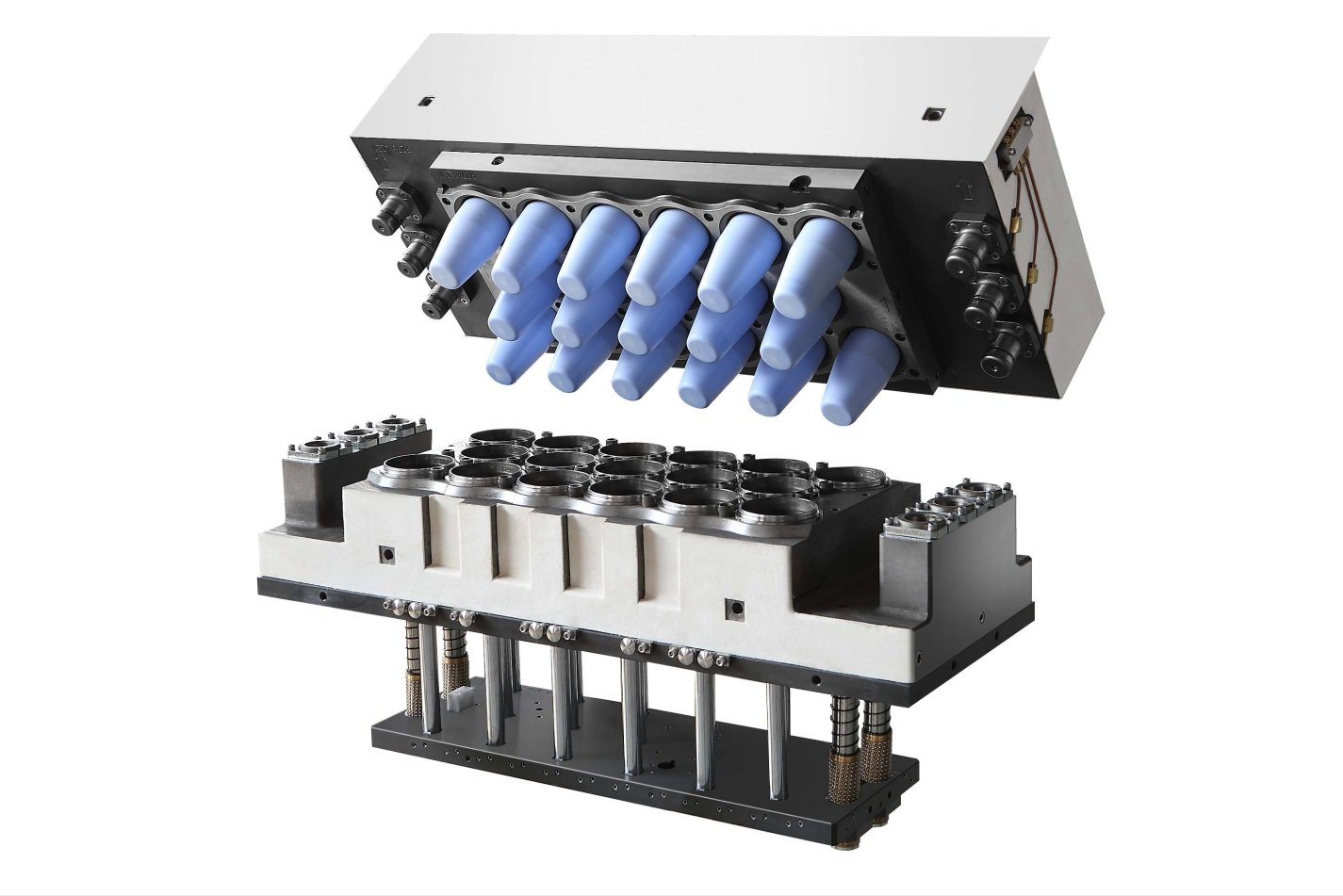

    Moulds:Good Quality Milk Cup Making Machine

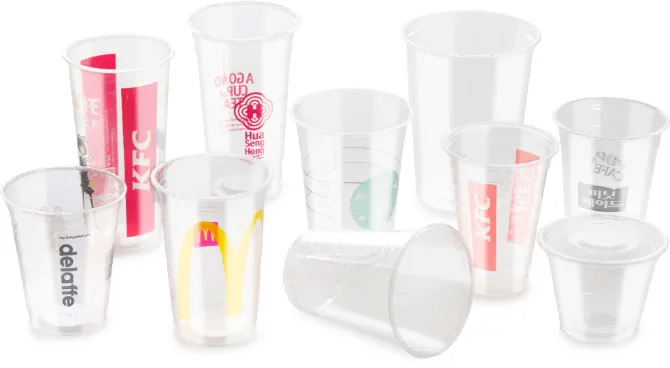

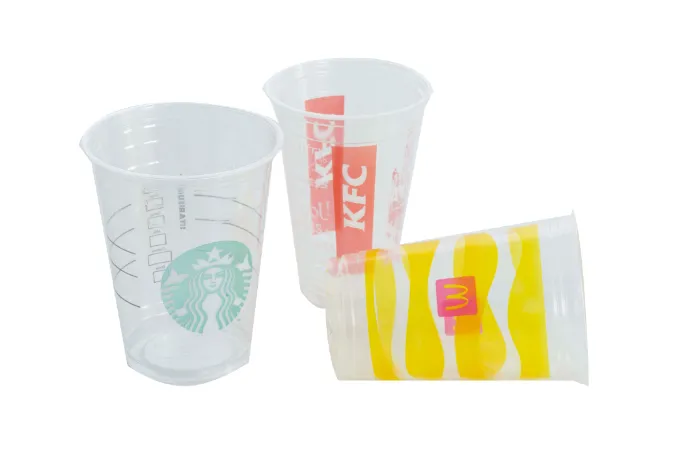

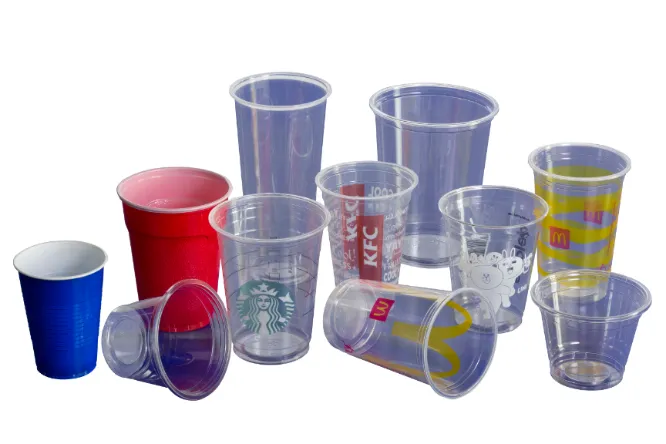

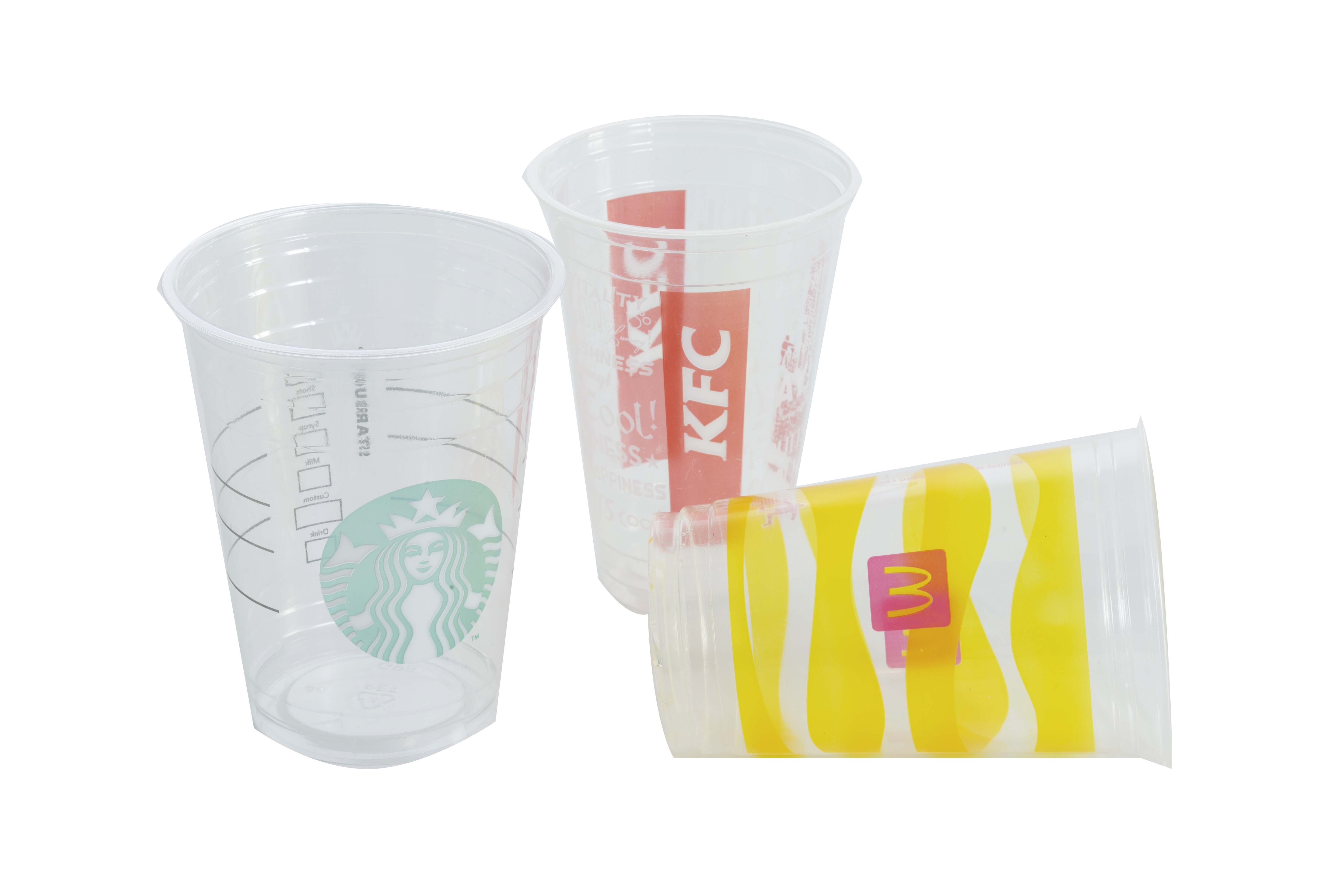

    Sample:
    Good Quality Milk Cup Making Machine
    Good Quality Milk Cup Making Machine
    Good Quality Milk Cup Making Machine

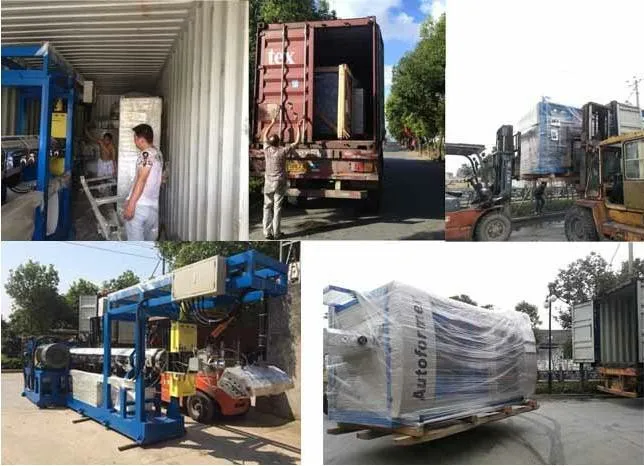

    Shipping Packaging:
    Good Quality Milk Cup Making Machine

    Company History:

    Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d

    Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic

    Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries

    And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,

    Chile, Bolivia, Saudi Arabia, Peru, etc.

    Good Quality Milk Cup Making Machine

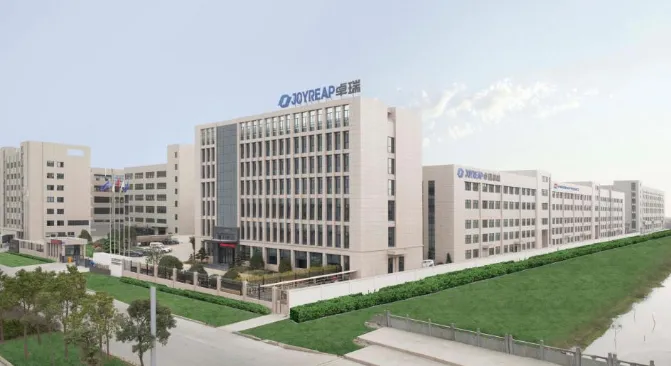

    Factory Address:
    NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
    Good Quality Milk Cup Making Machine

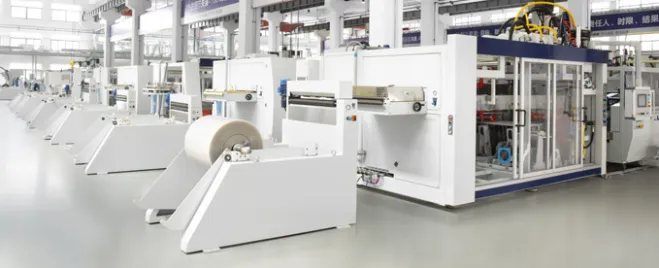

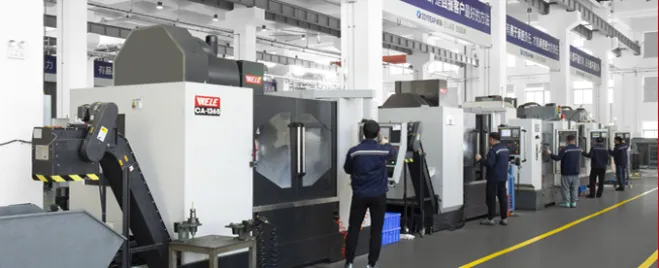

    Operation:
    Good Quality Milk Cup Making Machine
    Good Quality Milk Cup Making Machine

    Contact person:
    Good Quality Milk Cup Making Machine

    FAQ:
    1. Q: Are you a factory or trading company?
       A: We are a factory and giving you the quickest reply in 24 hours.

    2. Q: What's your company mainly in?
       A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for   over 10 years.Other machines have included machines in production line,  such .as thermoforming machine and pp and ps extruder .
      (we can produce total production line.)

    3. Q: How's your strength of your company?
       A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.

    4.Q: If your company has passed some certificates?
      A: Yes, we have passed CE, ISO.


    WATCH OUR VODEO IN YOUTUBE:

    https://youtu.be/THsFUoHqKok
