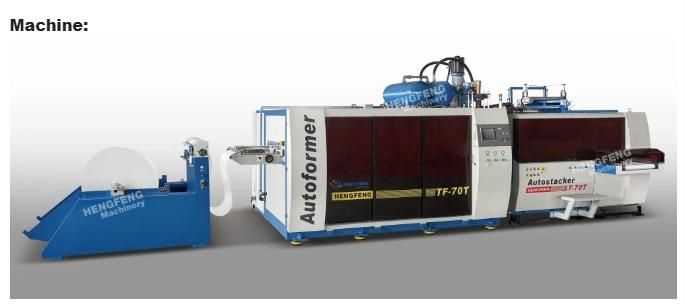

High Speed Automatic Plastic Milk Coffee Tea Cups Making Thermoforming Machine for PLA/PP/Pet
High Speed Automatic Plastic Milk Coffee Tea Cups Making Thermoforming Machine for PLA/PP/PetApplicantion:Water Cup Making Machine can mainly produce upscale plastic containers like cups, bowls, square boxes etc. which is suitable for PP. PS. PLC. PVC and PET material.Design Features:In-mould Cuttin......
Send Inquiry
Product Description
Applicantion:
Water Cup Making Machine can mainly produce upscale plastic containers like cups, bowls, square boxes etc. which is suitable for PP. PS. PLC. PVC and PET material.
Design Features:
In-mould Cutting
High accuracy and high yield products

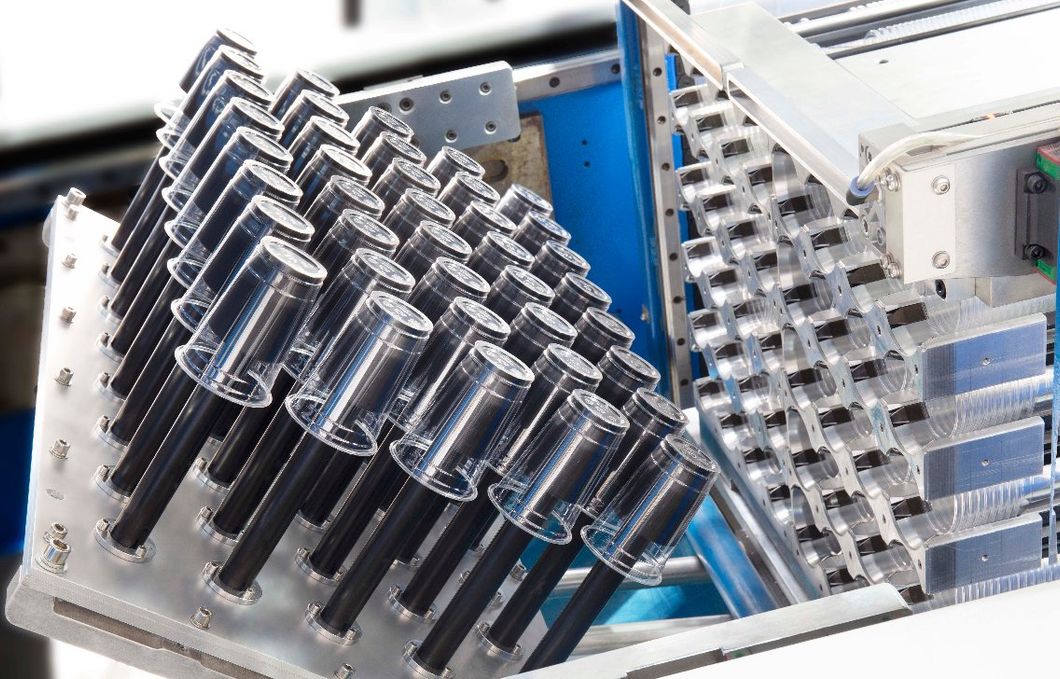

Pick-up stacking system for more sanitary and save labor
Servo motor for plug assist and sheet feeding system
Rapid mould changing device
Mould automatic memory system

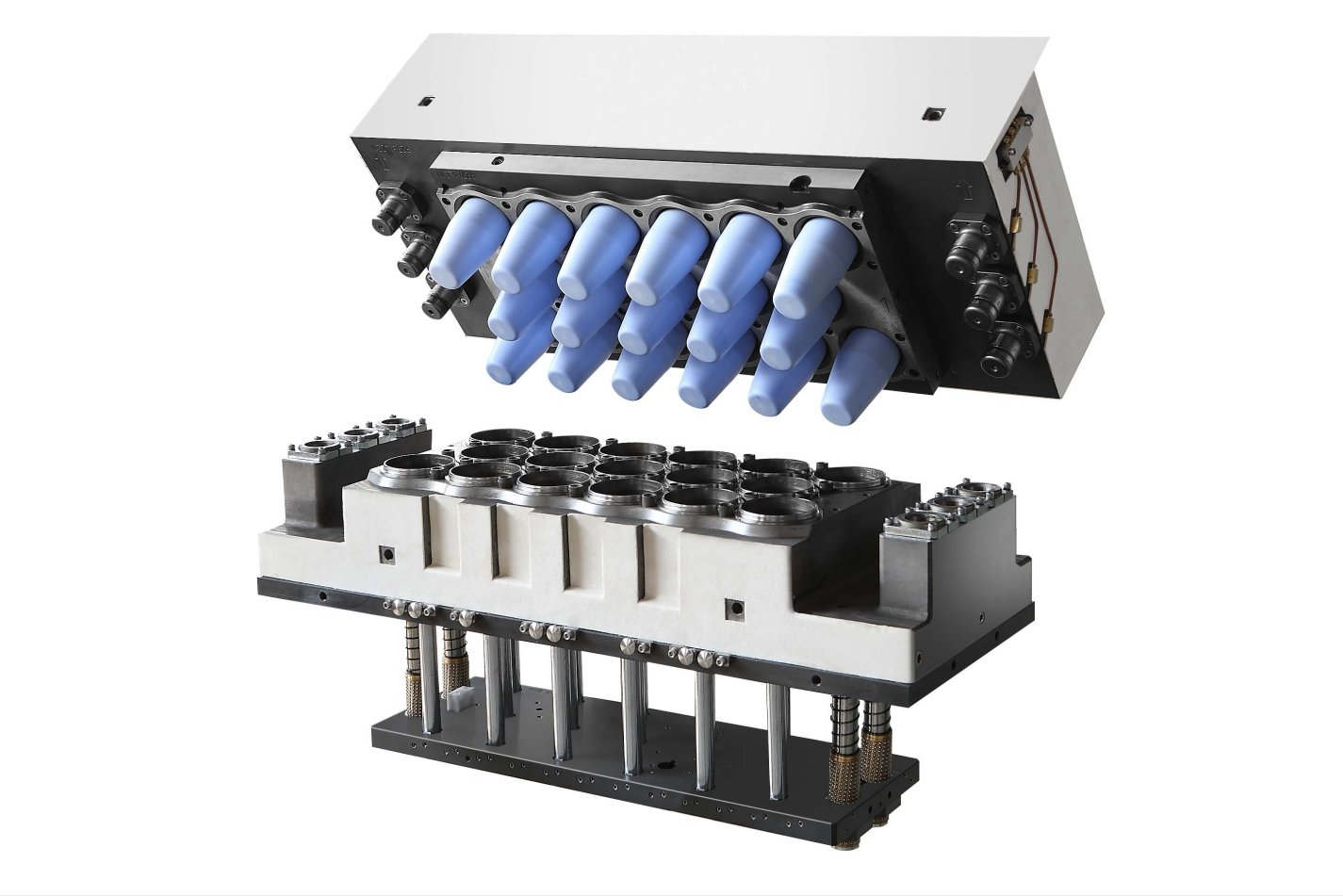

Moulds:
| Main Technical Parameter: | ||||
| Model | HFTF-70T | |||
| Max. Molding Area | 680*320 mm | |||
| Max. Forming depth | 130 mm | |||
| Max. Sheet width | 730 mm | |||
| Sheet Thickness range | 0.3-2.0 mm | |||
| Max. Clamping force | 250 KN | |||
| Upper/Lower heating power | 70/60 KW | |||
| Air pressure | 7-8.5bar | |||
| Max. Speed | 42 Cycles/min | |||
| Total installed power | 150 KW | |||
| Machine Weight | 12000 kg | |||
| Dimension | 12*4*3.5m | |||

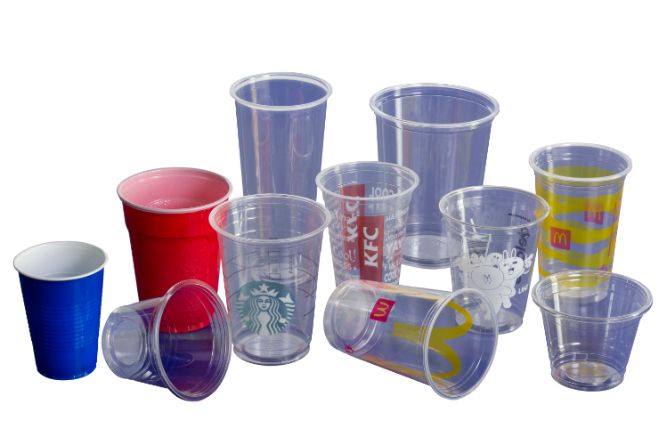

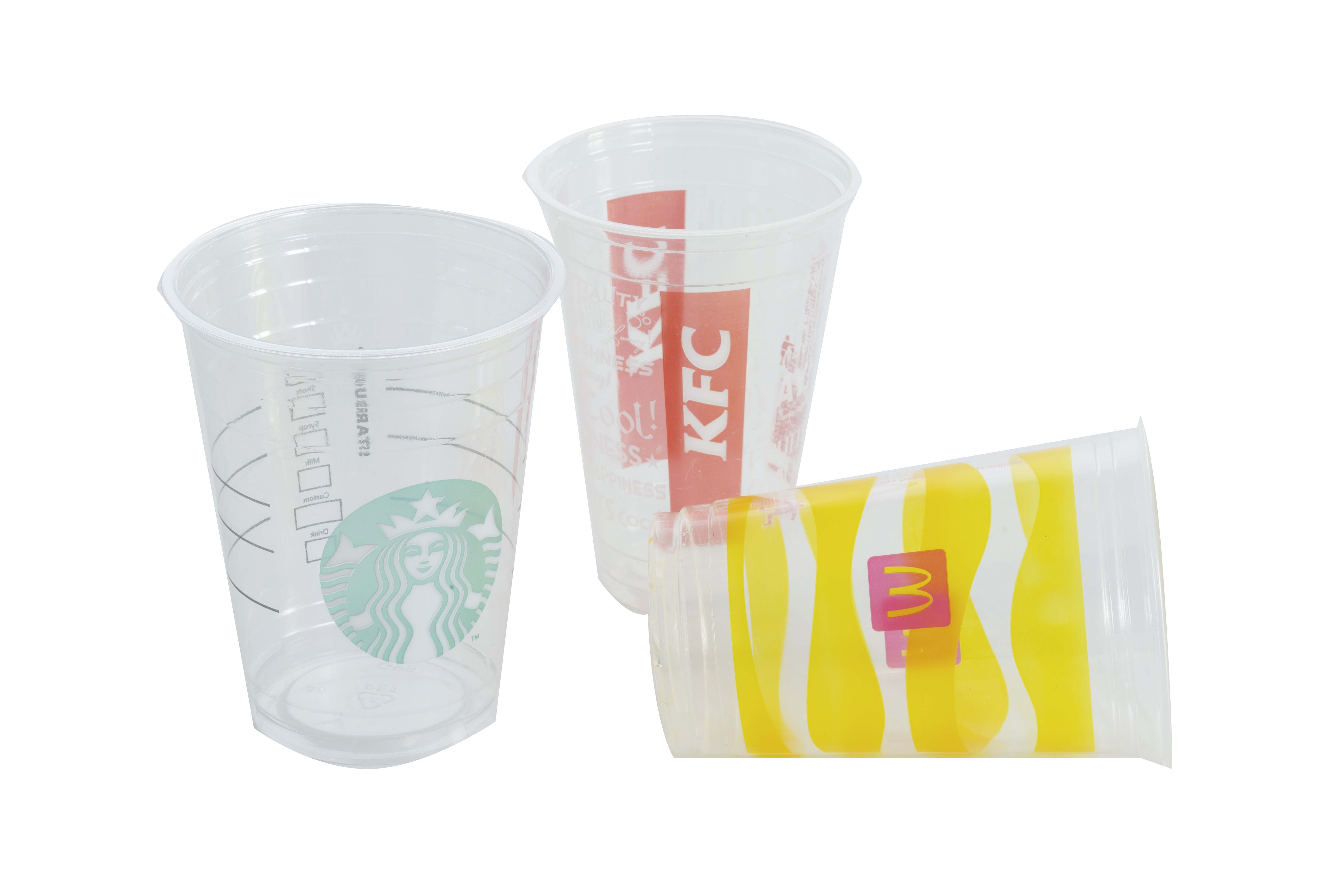

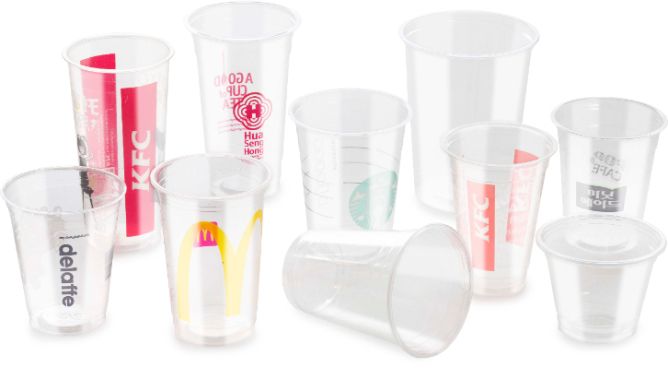

Sample:

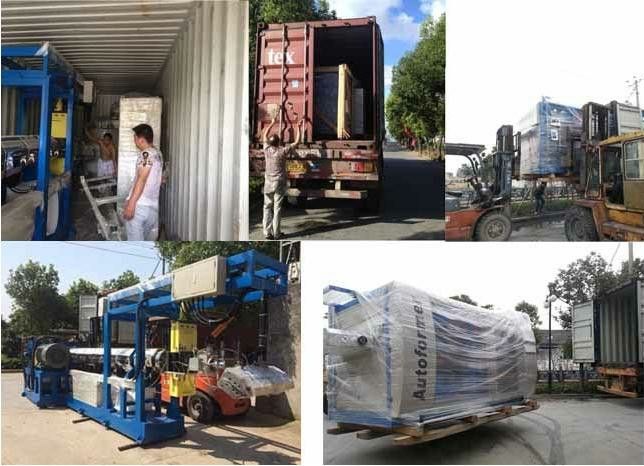

Packaging shipping:

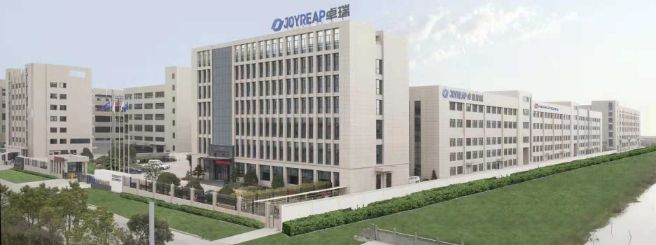

Company History:
Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d
Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic
Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries
And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,
Chile, Bolivia, Saudi Arabia, Peru, etc.

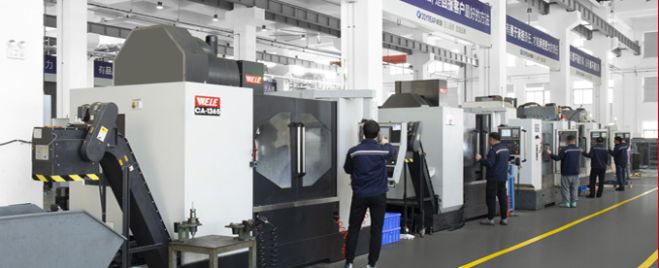

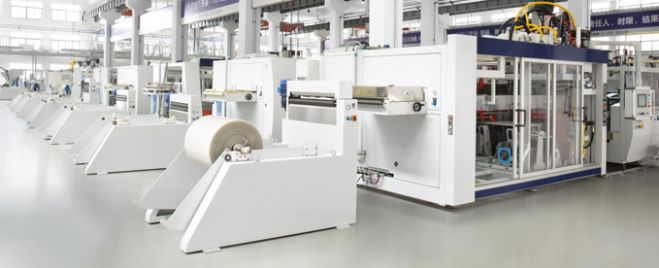

Operation:
Contact Person:
WATCH OUR VIDEO IN YOUTUBE:
Factory Address:
NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
https://youtu.be/s6DWJtKHGCc
FAQ:
1. Q: Are you a factory or trading company?
A: We are a factory and giving you the quickest reply in 24 hours.
2. Q: What's your company mainly in?
A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for over 10 years.Other machines have included machines in production line, such .as thermoforming machine and pp and ps extruder .
(we can produce total production line.)
3. Q: How's your strength of your company?
A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.
4.Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
