    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    • High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/PetHigh Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    • High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/PetHigh Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    • High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/PetHigh Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    • High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/PetHigh Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/PetApplicantion:HFTF-70T Plastic cup forming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.Features:In-mould Cuttin......

    Send Inquiry

    Product Description

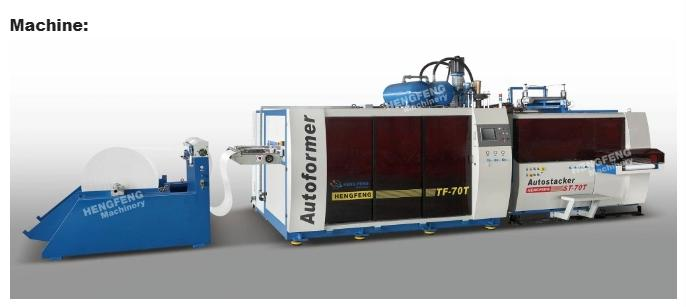

    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    Applicantion:
    HFTF-70T Plastic cup forming Machine are mainly produce upscale plastic containers like cups, bowls, square boxes etc. It is suitable for PP. HIPS. PVC and PET material.

    Features:
    In-mould Cutting
    High accuracy and high yield products
    Pick-up stacking system for more sanitary and save labor
    Servo motor for plug assist and sheet feeding system
    Two -station unwinder system
    Rapid mould changing device
    Mould automatic memory system
    PLC design with easy operation.

    Main Specification

    1- Max. Forming  Area680× 320mm
    2- Max. Down Forming Machine150mm/180mm
    3- Max. Up Forming Height15mm
    4- Sheet Thickness0.35-2.5mm
    5- Max. Roller  Diameter Φ 1200mm
    6- Air  Pressure 0.7-0.85mpa
    7- Water  Consumption 50L/min
    8- Air  Consumption 3000L/min
    9- Max.Speed 35Cycles/min
    10- Power (Three  Phase  Four  Wire)3× 380V+NP+PE. 50HZ
    11- Heating  Power130kw
    12- Main  Motor  Power11kw
    13- Feeding  Motor  Power 4.4kw
    14- Scrap  Rewinding  Motor  Power 0.55kw
    15- Machine  Weight 10000kgs
    16- Dimension 11000× 3650× 3500mm

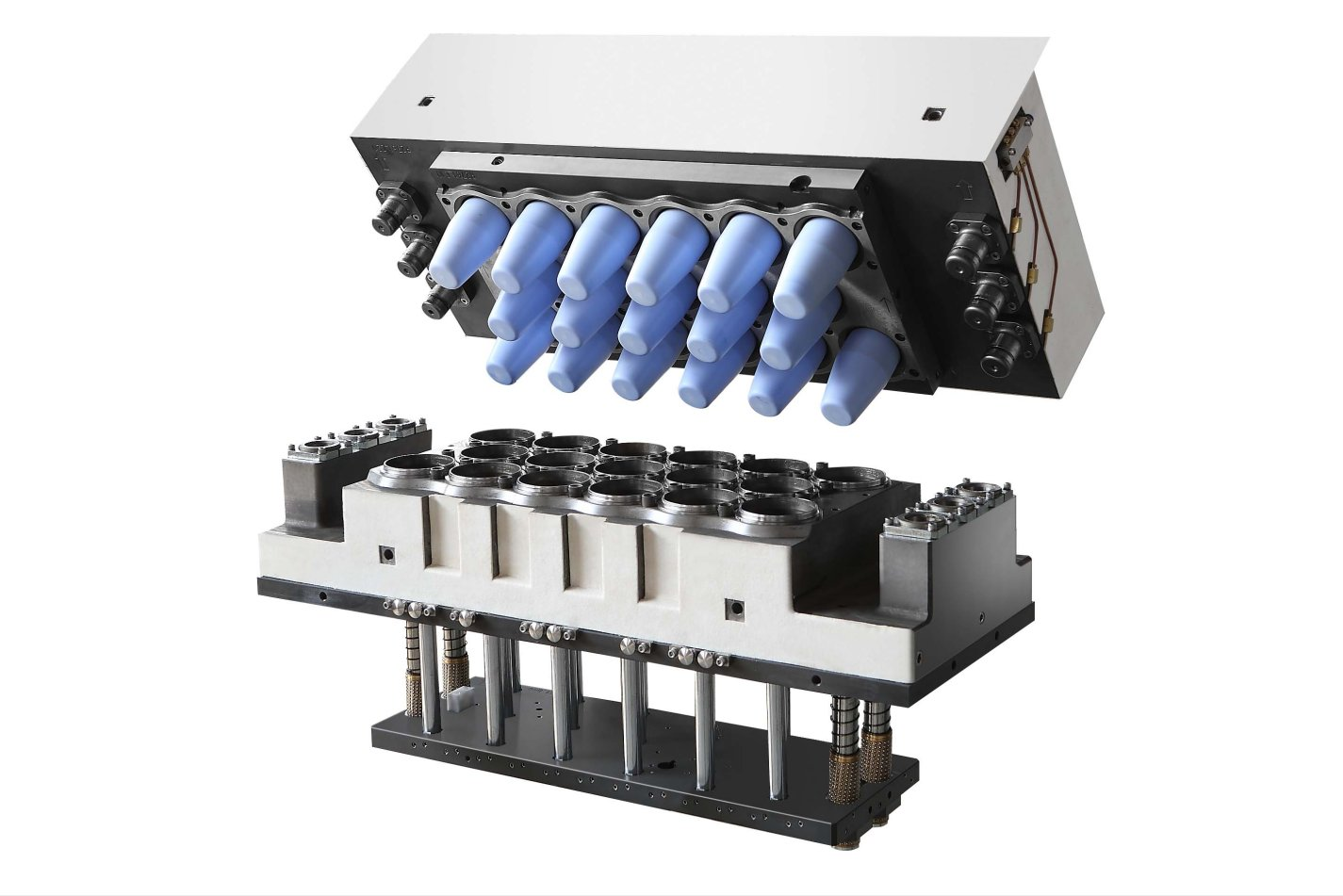

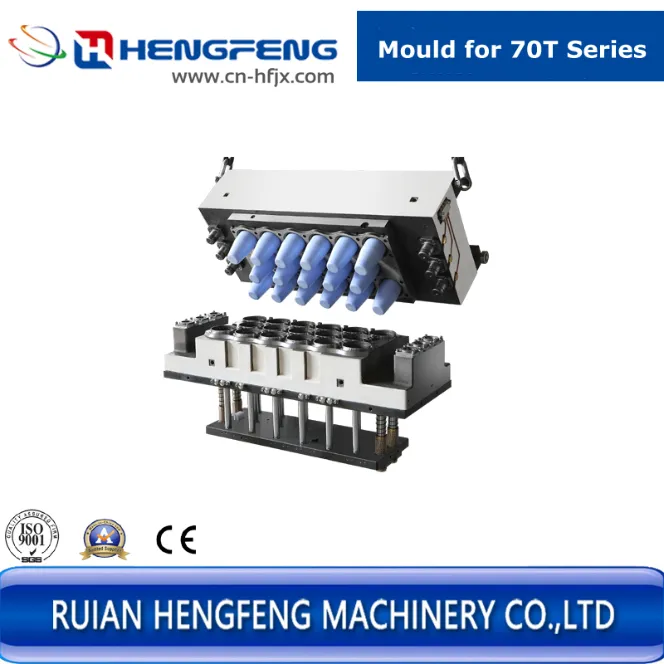

    Moulds:High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

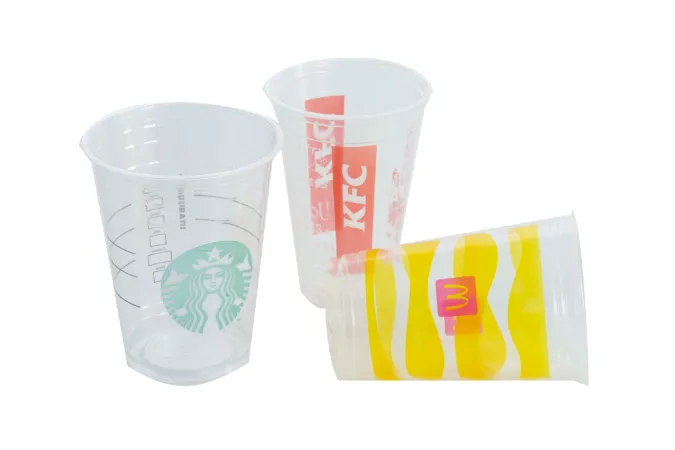

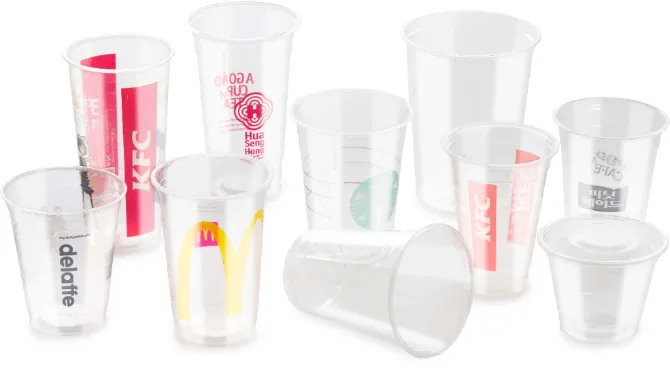

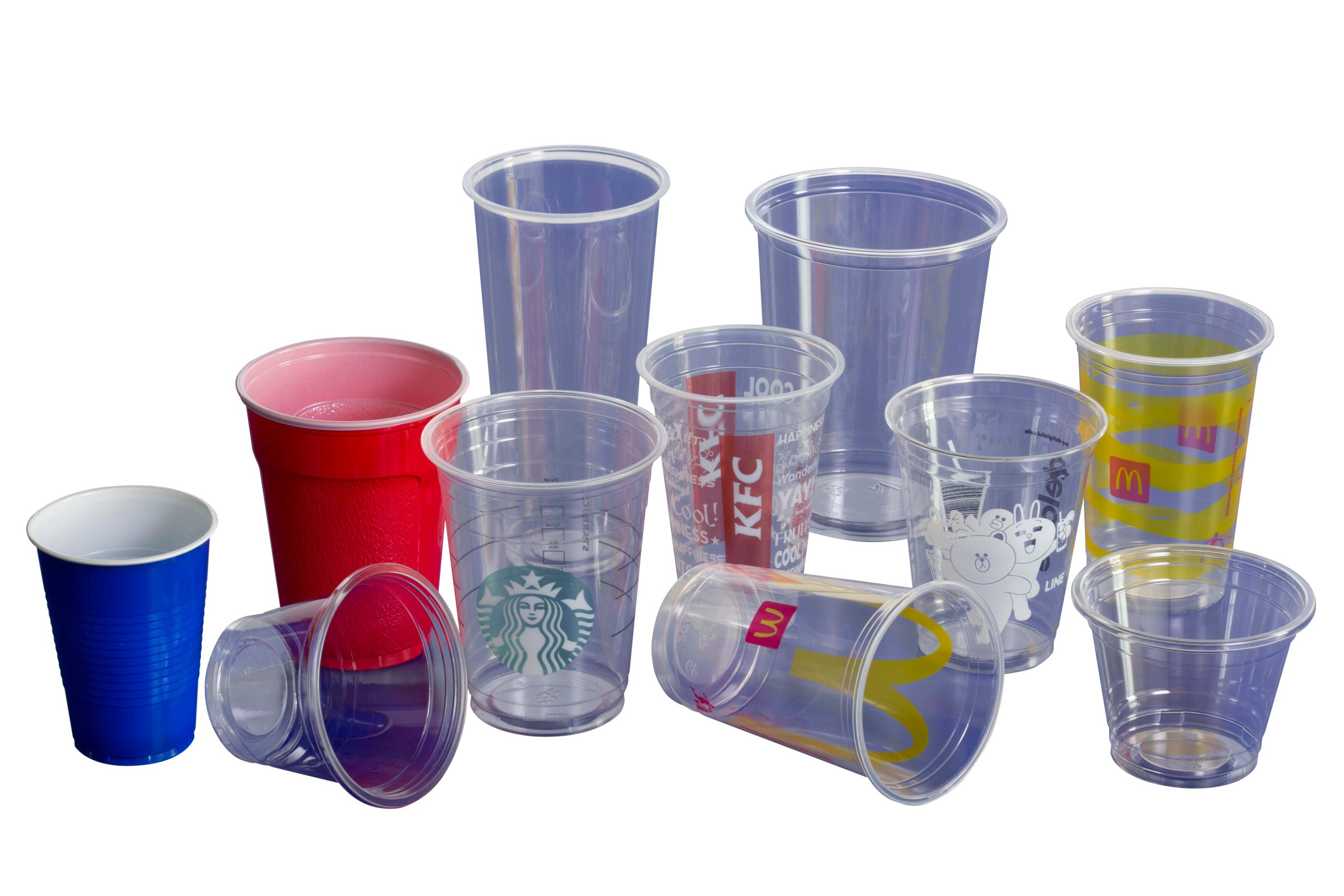

    Sample:
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/PetHigh Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

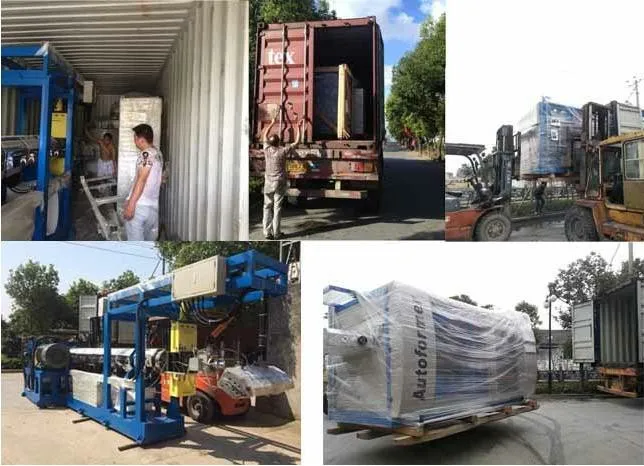

    Shipping packaging:
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

    Company History:

    Rui'an hengfeng machinery Co., Ltd is founded in 2008. For more than 10 years, we focus on researching, d

    Eveloping, manufacturing and marketing on thermoforming machine, plastic cup production line, BOPS plastic

    Thermoforming machine, mutil-layer PP/PS/PET sheet extruder, mould, etc. There are more than 72 countries

    And regions cooperating with us, such as USA, south Korea, Turkey, Canada, Russia, Kuwait, Iran, Brazil,

    Chile, Bolivia, Saudi Arabia, Peru, etc.

    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

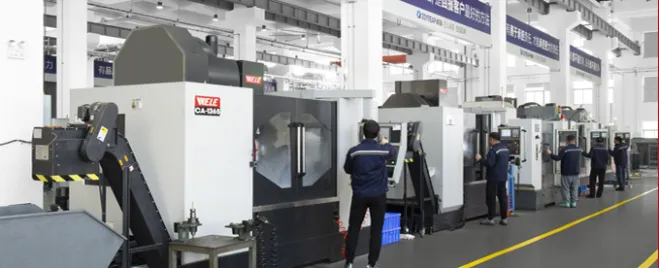

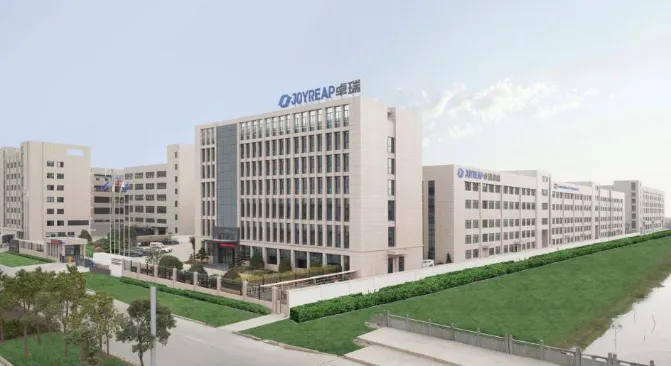

    Factory Address:
    NO.718,Wei'er Road,Gexiang New District,Nanbin Street,Ruian City,Zhejiang Province,China.
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

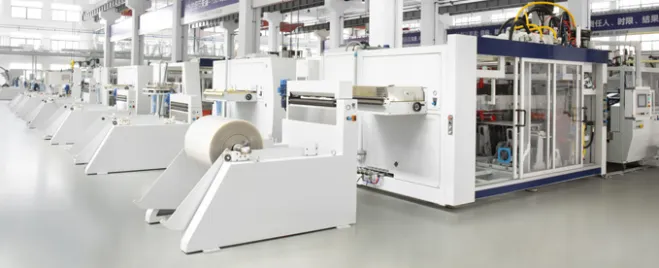

    Operation:
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

    Contact person:
    High Speed Automatic Plastic Coffee Water Tea Cups Making Thermoforming Machine for PLA/PP/Pet

    FAQ:
    1. Q: Are you a factory or trading company?
       A: We are a factory and giving you the quickest reply in 24 hours.

    2. Q: What's your company mainly in?
       A: We are mainly produce Plastic Extruder, Vacuum Forming Machine for   over 10 years.Other machines have included machines in production line,  such .as thermoforming machine and pp and ps extruder .
      (we can produce total production line.)

    3. Q: How's your strength of your company?
       A: Has a group of senior technical personnels , strong technical force, we have the whole running system, including design, development ,production, installation, service. One year quality guarantee, life-time service.

    4.Q: If your company has passed some certificates?
      A: Yes, we have passed CE, ISO.
