Drum Wood Chipper with Large Capacity Chipping Machine
Drum Wood Chipper with Large Capacity chipping machine Products introduction of wood chipper:1. The wood chipper is a machine cutting the tree into chips, which is widely used in the paper mill, paper pulp mill or chipboard mill. The whole set of wood chipper equipment usually including 3 parts, the......
Send Inquiry
Product Description

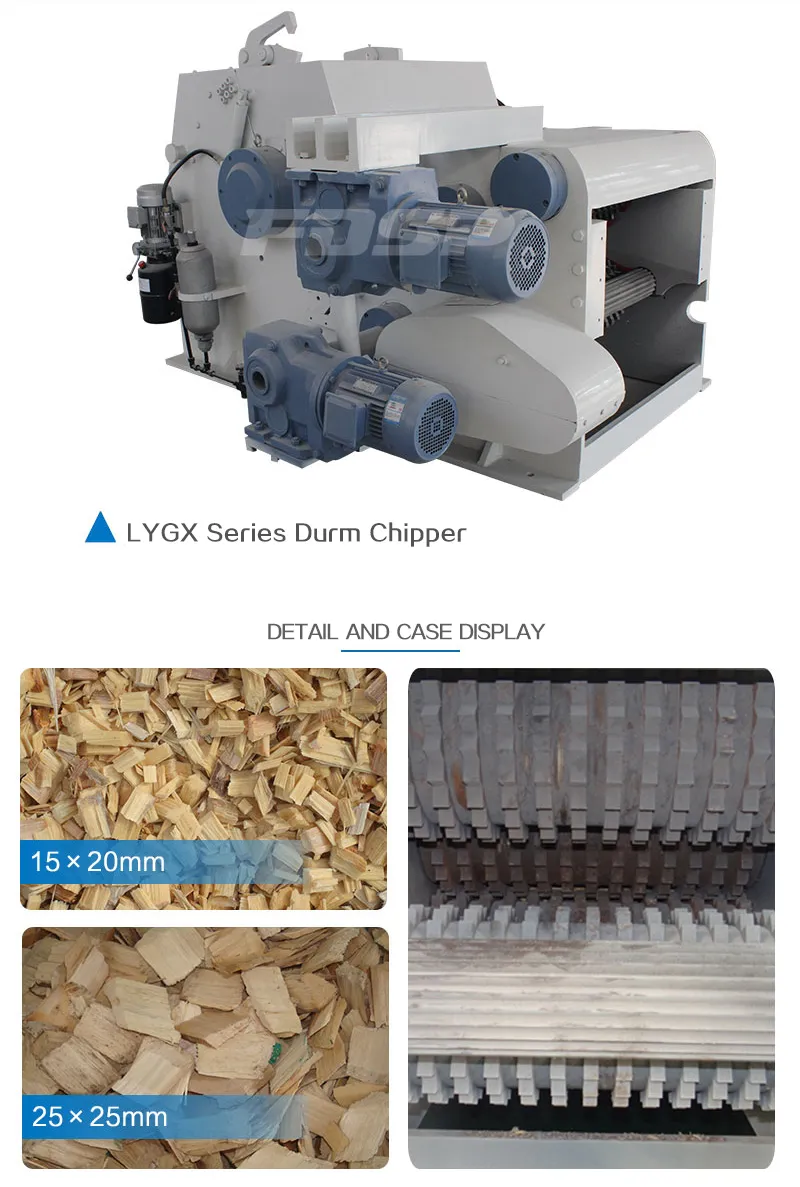

Drum Wood Chipper with Large Capacity chipping machine
Products introduction of wood chipper:
1. The wood chipper is a machine cutting the tree into chips, which is widely used in the paper mill, paper pulp mill or chipboard mill. The whole set of wood chipper equipment usually including 3 parts, the log feeding structure, the wood chipper( tree chipper) and the chips discharging structure.
2. The log feeding structure usually adopted two ways, the conveyor or handwork. For the big log or high capacity model chipper, it usually uses the conveyor feeding the logs into the chipper. For the small model chipper, it usually feeding the logs into chipper by hand work, which could reduce the cost of the conveyor.
3. For the chips discharging structure, it usually adopted the two ways, the chips discharging tube or the discharging conveyor. The discharging tube could blow the chips to about five meters high and spray into the truck directly or the designated place. The discharging conveyor could transport the chips for a longer way to the designated place, such as warehouse.
Main technical parameters:
| Data Model | LYGX213/5 | LYGX216 | LYGX218 | LYGX218D | LYGX2110 |
| Rotor Dia(mm) | 300 | 650 | 800 | 800 | 1000 |
| Number of flying knives(pcs) | 2 | 2 | 2 | 2 | 2*2 |
| Feed opening size(mm) | 120*300 | 180*500 | 225*680 | 240*780 | 330*1050 |
| Knife rotor speed(rpm) | 730 | 590 | 650 | 650 | 550 |
| Feed speed(m/min) | 38 | 37.2 | 37 | 38 | 33 |
| Max dia of log | Cutting bark | 120 | 160 | 160 | 190 |
| Wood chips length(mm) | 26 | 30 | 30 | 30 | 30 |
| Capacity(m³/h) | 8-16 | 10-18 | 15-20 | 38 | 75 |
| Main motor power(kw) | 45 | 55 | 110 | 132 | 220 |
| Feed roller motor power(kw) | 2*1.1 | 2*3 | 2*4 | 2*5.5 | 2*7.5 |
| Weight(kg) | 1200 | 4070 | 7000 | 8000 | 12500 |
| Overall dimension(L*W*H) | 3681*870*900 | 4348*2056*1258 | 4670*2150*1500 | 4670*2250*1515 | 2850*2790*1497 |
WHY CHOOSE US?
Our products have passed the SGS,ISO9001:2008,CE certifications.Moreover,we own several patents,such as "utility model patents certificate"and "high-tech products certificate",etc.Our goods exported to many countries and won the good reputation by the high quality and superior service.
