Wood Chipping Machine with CE
Wood chipping machine with CEWood chipping machine is mainly used to crush big wood logs or timber wood branches, furniture waste into small chips, the thickness of last chips is 1.5mm-3mm, length and width about 20-50mm, by adjusting knives gap&......
Send Inquiry
Product Description

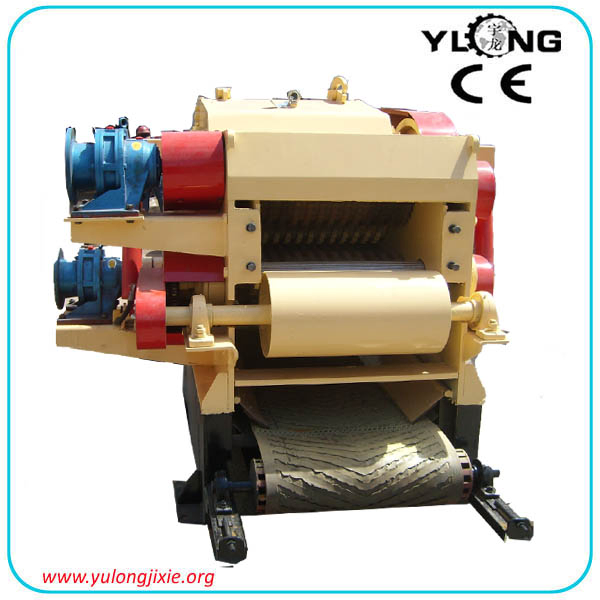

Wood chipping machine with CE
Wood chipping machine is mainly used to crush big wood logs or timber wood branches, furniture waste into small chips, the thickness of last chips is 1.5mm-3mm, length and width about 20-50mm, by adjusting knives gap, outlet chips dimension will be adjusted.
Wood chipping machine contains 4m long feeding belt conveyor, when conveying logs, the speed can be
Adjusted. Also it can connect with outlet conveyor to transport away crushed wood chips. The wood chipper can work on the ground-- outlet conveyor at the chipper bottom, then will no need to make foundation. Also can install outlet conveyor at the behind of wood chipper, then just need to do foundation under the ground.
Wood chipping machine has knives grinder, which can grind knives newer after certain time, no need to change knives often. The full unite contains 4m length feeding conveyor, outlet conveyor, knives grinder, electrical control cabinet e. C. T
Wood chipping machine has limit feeding door dimension, means raw wood logs should be smaller than feeding door, but length no limit, feeding speed can be adjusted.
Wood chipping machine is mainly used to crush big wood logs or timber wood branches, furniture waste into small chips, the thickness of last chips is 1.5mm-3mm, length and width about 20-50mm, by adjusting knives gap, outlet chips dimension will be adjusted.
Wood chipping machine contains 4m long feeding belt conveyor, when conveying logs, the speed can be
Adjusted. Also it can connect with outlet conveyor to transport away crushed wood chips. The wood chipper can work on the ground-- outlet conveyor at the chipper bottom, then will no need to make foundation. Also can install outlet conveyor at the behind of wood chipper, then just need to do foundation under the ground.
Wood chipping machine has knives grinder, which can grind knives newer after certain time, no need to change knives often. The full unite contains 4m length feeding conveyor, outlet conveyor, knives grinder, electrical control cabinet e. C. T
Wood chipping machine has limit feeding door dimension, means raw wood logs should be smaller than feeding door, but length no limit, feeding speed can be adjusted.
| MODEL | GX216 | GX218 | GX2113 |
| FEEDER SIZE(mm) | 230*500 | 300*680 | 450*700 |
| QTY OF FLY KNIVES(PCS) | 2 | 2 | 2 |
| SPEED OF KNIVES RUNNIN(R/M) | Φ650 /590 | 650 | 500 |
| MAX DIAMETER FEEDER(mm) | 230 | 300 | 450 |
| WOOD CHIPS SIZE ABOUT(mm) | 30 | 30 | 38 |
| CAPACITY(T/H) | 7-8 | 12-15 | 15-30 |
| MAIN POWER(kw) | 55 | 110 | 160 |
| FEEDER POWER(kw) | 3-4 | 4-5 | 7.5*2 |
| OIL PUMP POWER(kw) | 1.5*1 | 1.5*1 | 3*1 |
| WEIGHT(kg) | 4070 | 7000 | 11840 |
| MACHINE OUTER SIZE(mm) | 1800*1900*1210 | 2200*2150*1500 | 3670*2517*2050 |
| BACK CONVEYOR POWER(kw) | 3 | 3 | 4 |
