Plastic Water Cup Ice Cream Bowl Thermoforming Machine

Product Description

Plastic Water Cup ice cream bowl Thermoforming Machine

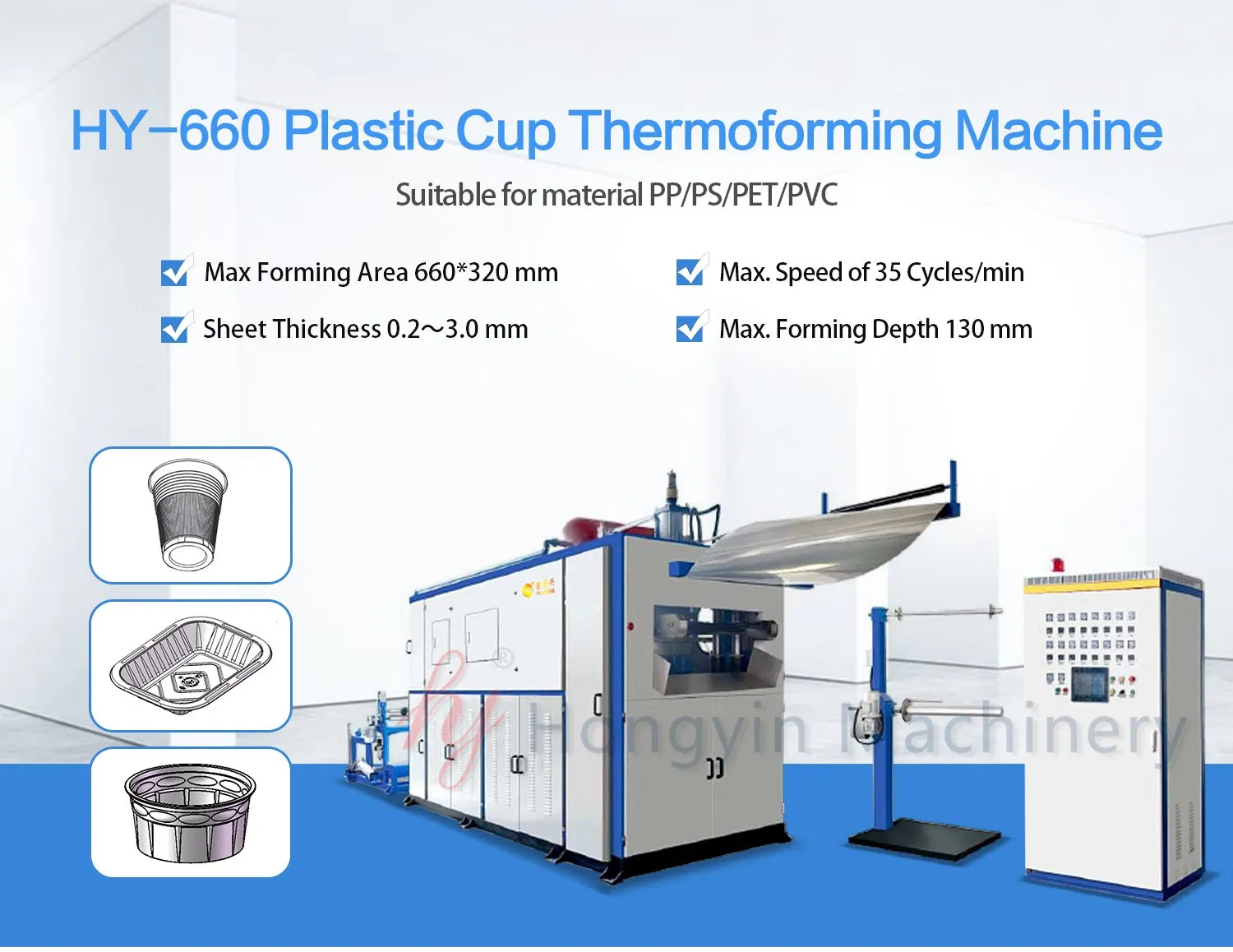

I. HY-660 type plastic air pressure molding machine (the cup and bowl machine)

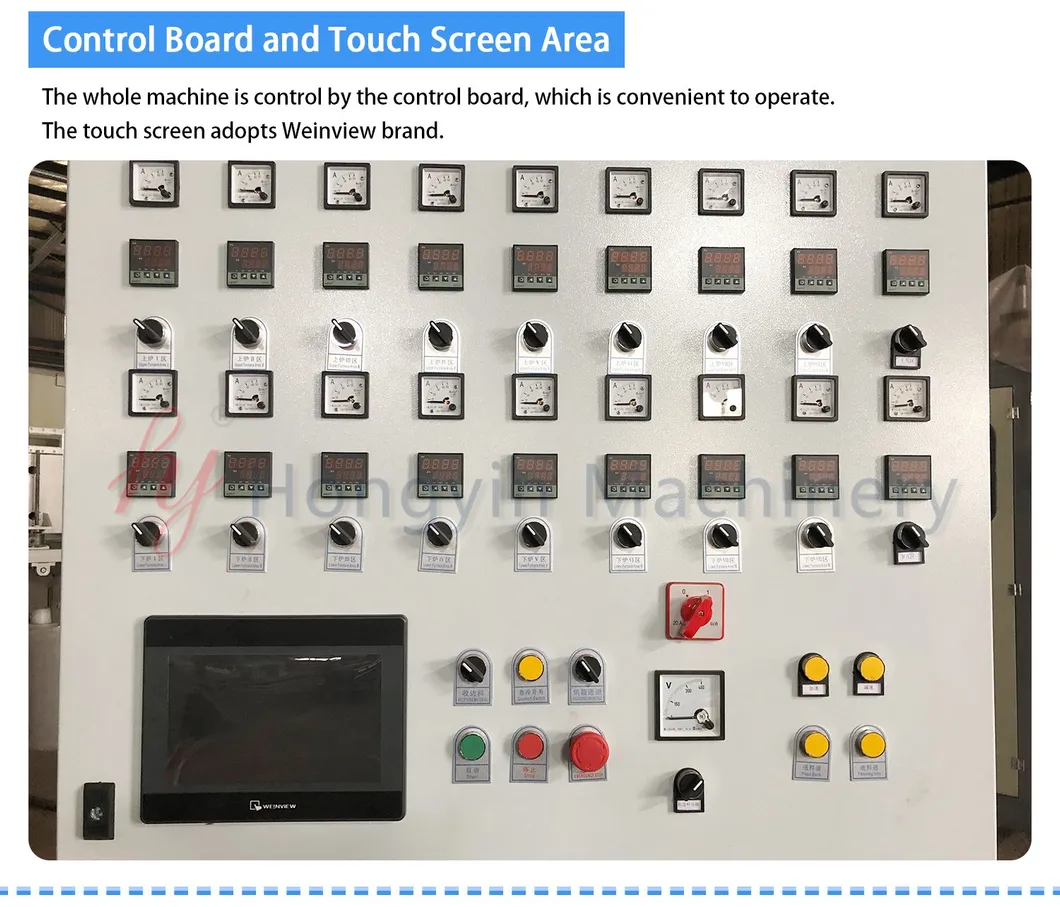

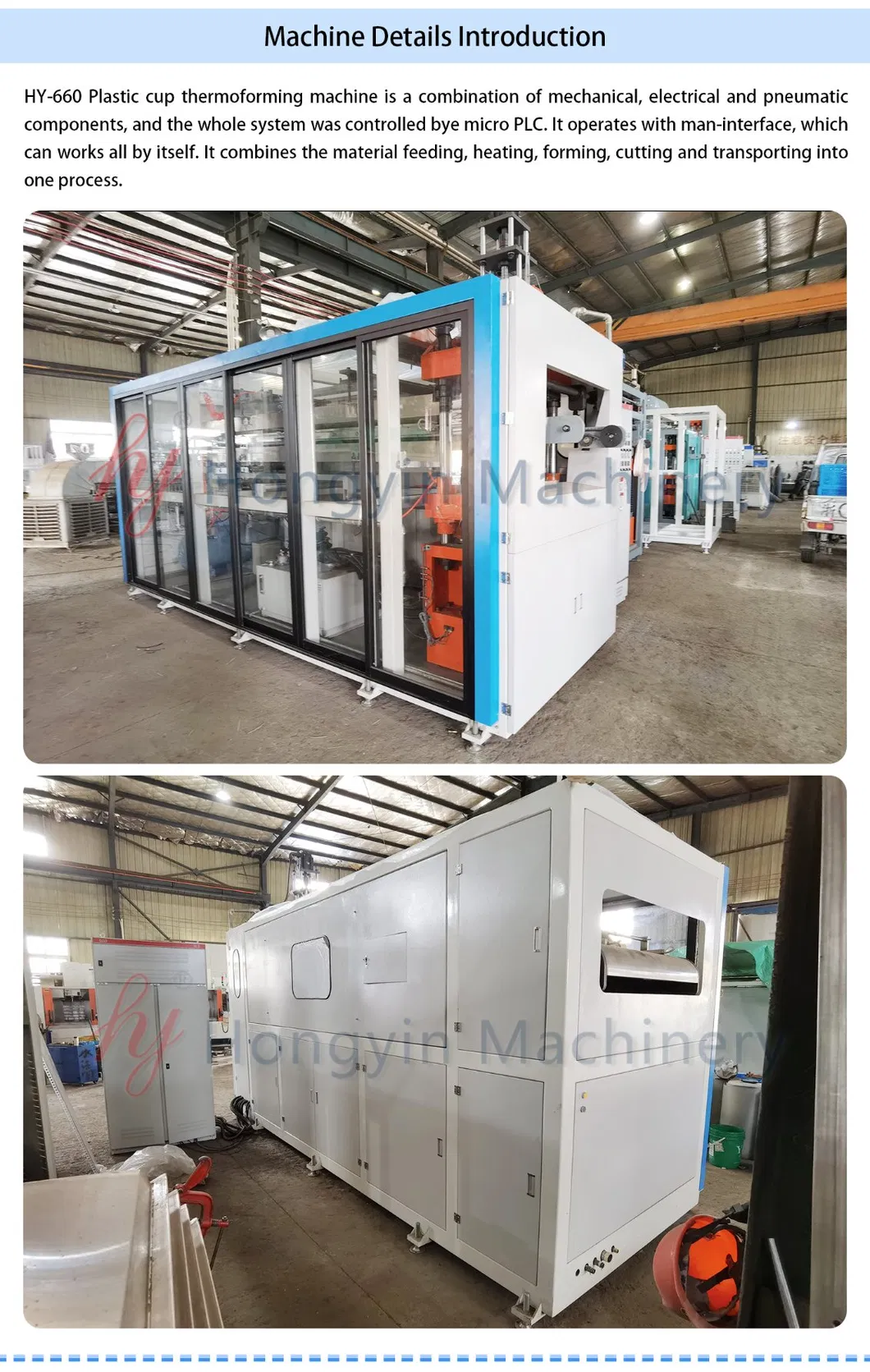

HY-660 thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. It operates with man-interface, which can work all by itself. It combines the material feeding, heating, drawing, forming, cutting and transporting into one process.

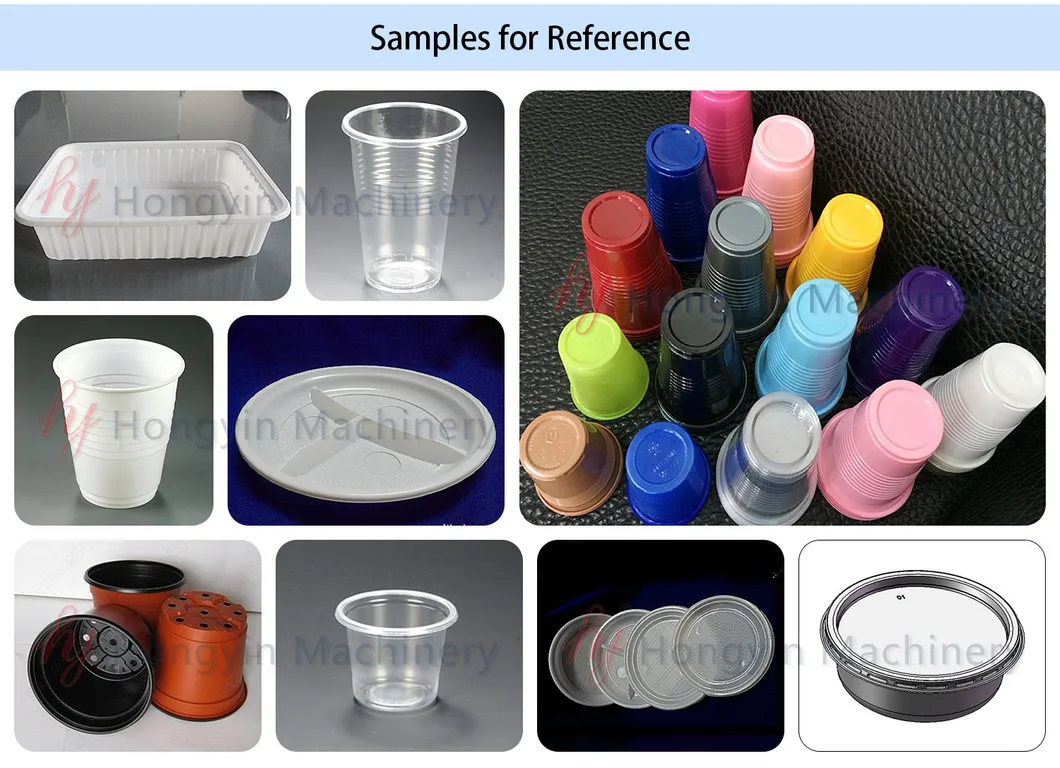

Plastic air pressure molding machine is mainly used for production, production of disposable tableware, cold drink cup, yogurt cup, jelly cup, ice cream cup, snack box, plastic bowl, milk tea cover, etc. At the same time also can processing medicine, light industry, textile, tourism, toys, and other relevant plastic packaging products.

II. The cup machine features:

1. The high efficiency, energy saving, safety, environmental protection, high qualified products.
2. The machine set piece, heating, stretching to send, molding, cut one-time completed.
3. Machine, electricity, gas integration; Have manual, semiautomatic, automatic three operation functions.
4. Raw materials to adapt to the machine widely. Such as PS, PP, PVC, PET, ABS and other plastic material all can manufacture.
5. The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
6. It uses import famous brands of electric and pneumatic fittings, so the operation is stable, quality is reliable and life is long.
7. The design of the mold is advanced and special, heat the thermoplastic plastic flake board and put on the mold, pull the piston, give the pressure to the air, keep the flake board close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.

Model	HY-660
Power Supply	380V/3P/50HZ
Material	PP/PS/PET/PLA/PVC
Driving Method	Hydraulic drive
Forming Area	660×320mm
Sheet Thickness	0.25~3.0mm
Max forming depth	<=130mm
Forming Speed	15-35cycles/min
Air Pressure	0.6~0.8Mpa
Air Consumption	2200L/min
Machine Dimension	3700×1500×2500mm
Total power	140kw
Weight	6500Kgs

Features:
1. The high efficiency, energy-saving, safety, environmental protection, high qualified products.
2. The machine set-piece, heating, stretching to send, molding, cut one-time completed.
3. Machine, electricity, gas integration; have manual, semiautomatic, automatic three operation function.
4. Raw materials to adapt to the machine widely: such as PS, PP, PVC, PET, ABS, and other plastic materials.
5. The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
6. It uses import famous brands of electric parts, the operation is stable, quality is reliable and life is long.
7. The design of the mold is advanced and special, heat the thermoplastic plastic flakeboard and put on the mold, pull the piston, give the pressure to the air, keep the flakeboard close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.

Main Technical Parameter
Model	DB-660
Power Supply	380V/3P/50HZ
Material	PP/PS/PET/PLA/PVC
Driving Method	Hydraulic drive
Forming Area	660×320mm
Sheet Thickness	0.25~3.0mm
Max forming depth	<=130mm
Forming Speed	15-35cycles/min
Air Pressure	0.6~0.8Mpa
Air Consumption	2200L/min
Machine Dimension	3700×1500×2500mm
Total power	140kw
Weight	6500Kgs
